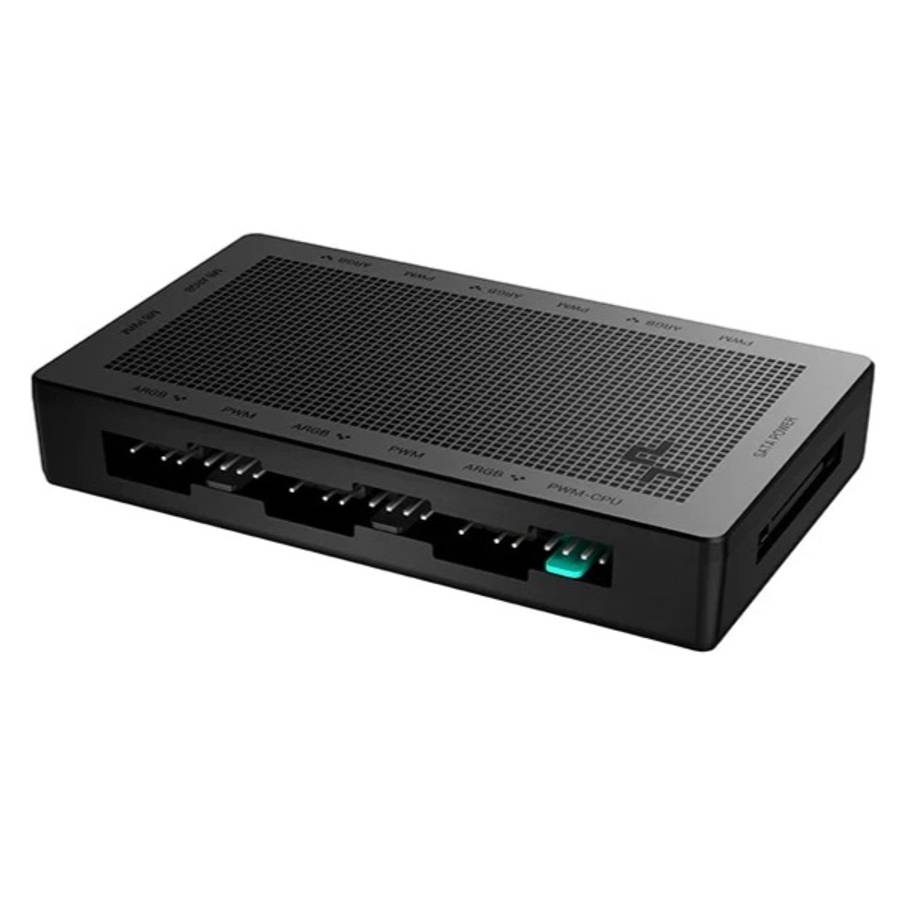

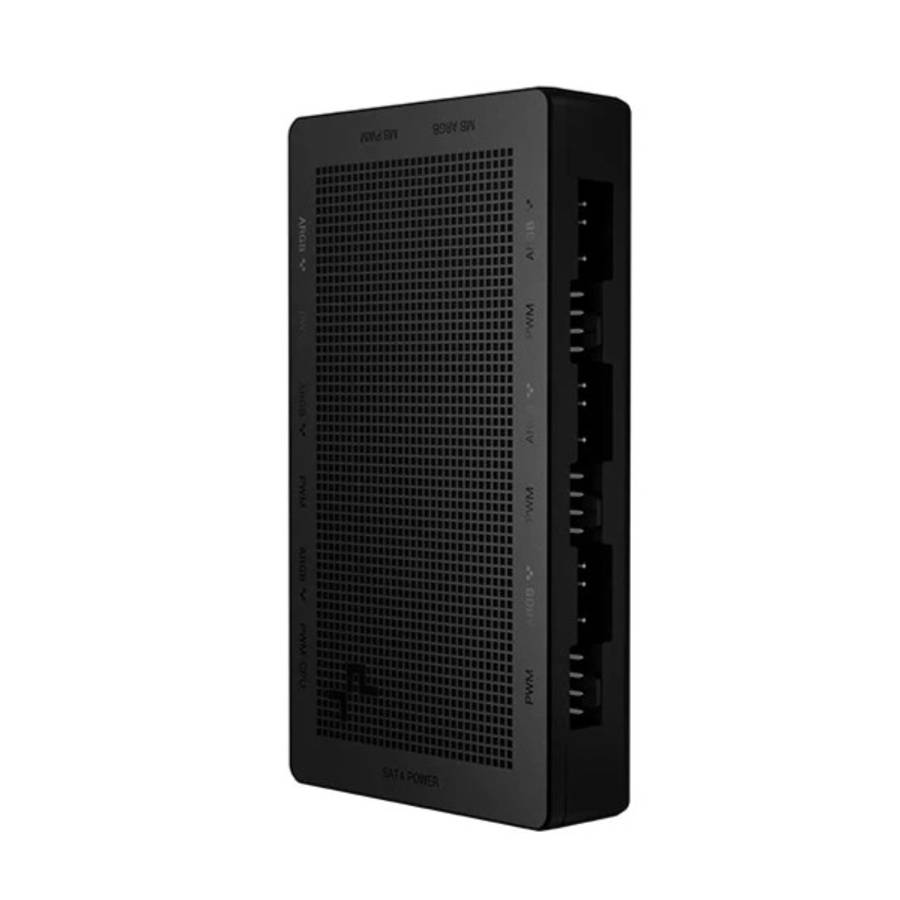

The DeepCool SC790 6 Port ARGB PWM Fan Hub is a compact 2-in-1 controller designed to simplify fan and lighting management in PC builds. It lets you connect and synchronize up to six PWM fans and six ARGB devices while using only a minimal number of motherboard headers, making it especially useful for gaming or showcase systems with multiple case fans.
Supports up to 6 PWM fan connections.
Supports up to 6 ARGB connections.
SATA power input for stable power delivery.
Magnetic mounting for easy placement inside the case.
Compatible with 4-pin PWM and 3-pin 5V addressable RGB devices.
Compact design for clean cable management.
| Specification | Description |
|---|---|
| Product Name | DeepCool SC790 6 Port ARGB PWM Fan Hub |
| Function | 2-in-1 PWM and ARGB hub |
| Fan Ports | 6 x 4-pin PWM |
| ARGB Ports | 6 x 3-pin addressable RGB |
| Power Connector | SATA Power |
| Mounting Method | Magnetic |
| Fan Rated Voltage | 12V DC |
| RGB Rated Voltage | 5V DC |
| Fan Rated Current | 2.0A per port, 4.5A total across 6 ports |
| RGB Safety Current | 2.0A per port, 4.5A total across 6 ports |
| Product Dimensions | 102 × 60 × 17 mm |
| Net Weight | 69 g |
| Cable Lengths | Fan connector cable: 500 mm; ARGB connector cable: 538 mm (+50 mm for Gigabyte) |
| Color | Black |
| Warranty | 2 years |
