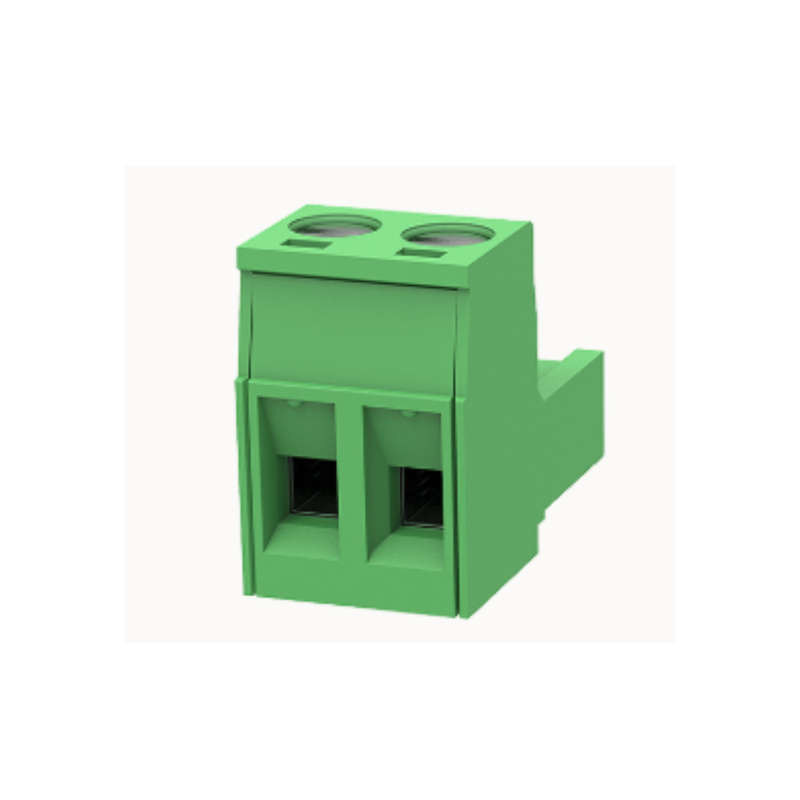

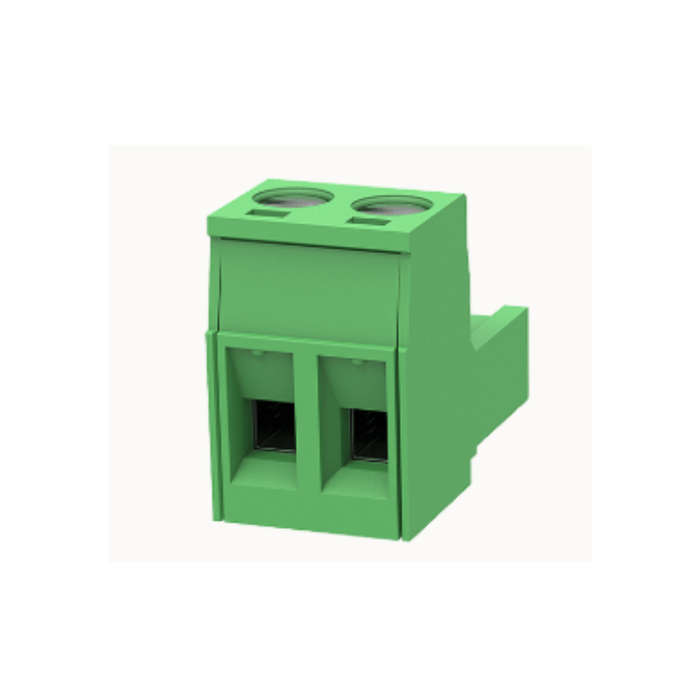

Connection Capacity:
Conductor cross section solid: 1.0~2.5mm²
Conductor cross section flexible: 1.0~2.5mm²
AWG: 28~12AWG
Torque: 0.5N.m
Strip length: 7mm
Electrical Parameters UL:
Rated voltage (B): 300V
Rated voltage (D): 300V
Rated current (B): 15A
Rated current (D): 10A
Electrical Parameters IEC:
Rated voltage: 320V
Rated current: 20A
Rated voltage(III/2): 320V
Rated surge voltage(III/2): 4KV
Item Properties:
Connection direction: 0°
Connection method: Screw connection
Screwdriver: Slotted screwdriver
Screw thread: M3
Pitch: 5.08mm
Number of potentials: 2
Pluggable or not: Yes
Number of rows: 1
Material Data:
Contact material: Copper alloy
Contact point metal surface: tin-plated
Environmental Data:
Ambient temperature (operation): -40~105(depending on derating curve)
Connection Capacity:
Conductor cross section solid: 1.0~2.5mm²
Conductor cross section flexible: 1.0~2.5mm²
AWG: 28~12AWG
Torque: 0.5N.m
Strip length: 7mm
Electrical Parameters UL:
Rated voltage (B): 300V
Rated voltage (D): 300V
Rated current (B): 15A
Rated current (D): 10A
Electrical Parameters IEC:
Rated voltage: 320V
Rated current: 20A
Rated voltage(III/2): 320V
Rated surge voltage(III/2): 4KV
Item Properties:
Connection direction: 0°
Connection method: Screw connection
Screwdriver: Slotted screwdriver
Screw thread: M3
Pitch: 5.08mm
Number of potentials: 2
Pluggable or not: Yes
Number of rows: 1
Material Data:
Contact material: Copper alloy
Contact point metal surface: tin-plated
Environmental Data:
Ambient temperature (operation): -40~105(depending on derating curve)
CONDITION
Sealed & Unused
WARRANTY
7-day satisfaction gaurantee, no further warranty provided.
Second-hand Product Notice:
This product has been Second-hand and may not be in its original packaging.
This product may or may not come with original parts and accessories
There may be minor signs of wear and tear.
Images are for illustrative purpose only and may differ from the actual product.
Photos of actual product can be requested.
