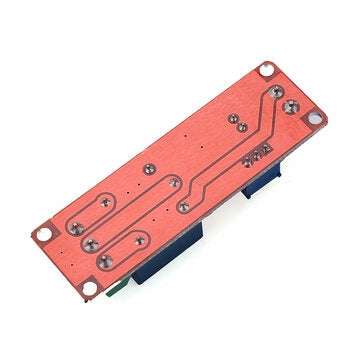

Delay Timer Switch Adjustable 0-10sec With NE555 Electrical Input 12V 10A 2000W AC220V Module

20 available / new

R355.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3505

93.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643377439

Description:

Timing from Microseconds to HOURS
Simple Circuitry
Precision Pulse Generation / Timing,
FMAX = 500 KHz
Use a single 4 to 16 VDC supply
Excellent temperature stability 0.005% / ﾣC
Adjustable Duty Cycle
Countless Application and Information Sources

Chip (NE555) Characteristic:

When unconnected with the supply power, the state of the module is NO [ normal open ], CB and COM are conductive. CK and COM are unconductive.

When connected with the supply power, delay for 0-10s, the module will in the state of NC [ normal closed ], CB and COM are unconductive, CK and COM is conductive

Specification :

Module Properties : NE555 chip
Dimension : 77 (L) x 23 (W) x 18 (H) mm (with potentiometer)
Input voltage : DC12V
Adjustable time : 0 to 10sec
Control voltage : AC 0~220V / max. 10A, DC 0~30V / max. 10A
Max. loading : 2000W

We suggest you using a diode connectiong to the VCC in series. In order to prevent from damaging chip of Power Reverse or Voltage Fluctuation. ( The board does not add diode because the power would not enough to pull-in the relay for the buck from diode when power is too low. )
