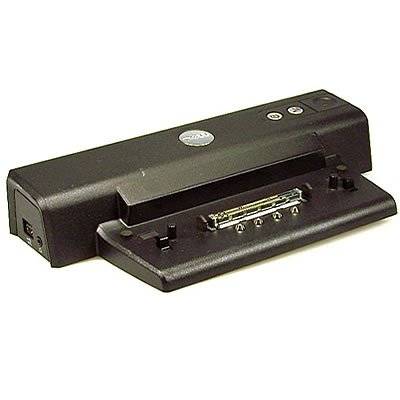

Dell Docking station port replicator

Supported Dell Notebooks

DELL INSPIRON:
500m, 510m, 520m, 600m, XPS M1710

DELL LATITUDE:
D400, D410, D420, D500, D505, D510, D520, D600, D610, D620, D800, D810, D820

DELL PRECISION:
M20, M60, M65, M70, M90

Specifications
Physical

Height:
53 mm (2.09 inches)

Depth:
142 mm (5.59 inches)

Width:
276 mm (10.87 inches)

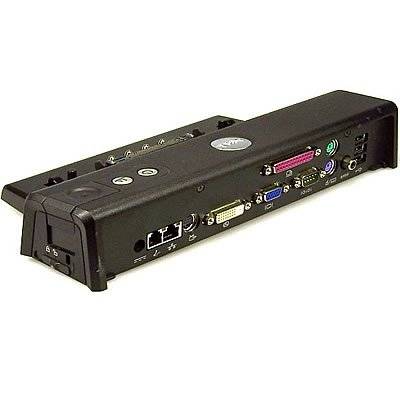

I/O Connectors
Serial (DTE)
one 9-pin connector, 16550-compatible,
16-byte buffer

Parallel
one 25-pin unidirectional, bidirectional, or ECP connector

PS/2
two 6-pin mini-DIN connectors

USB
four 4-pin, USB 2.0-compliant connectors: three standard USB and one powered USB

Audio
Audio line-out connector for headphones/speakers

Digital audio
S/PDIF

Network
one RJ-45 port; 10/100/1000 GB Ethernet

Modem
one RJ-11 port

Docking (to connect to computer)
one connector

Video :
Digital video interface (DVI)
one 24-pin connector

S-video TV-out
one 7-pin mini-DIN connector

Power
AC Adapter Input:

Voltage
100–240 VAC, 50–60 Hz

Amperage
up to 1.5 A
