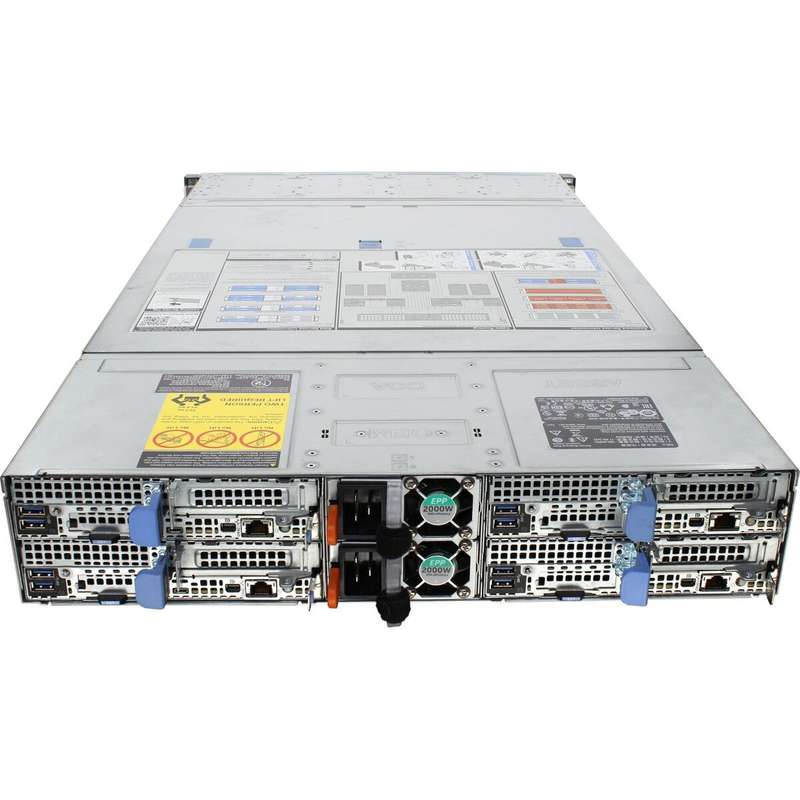

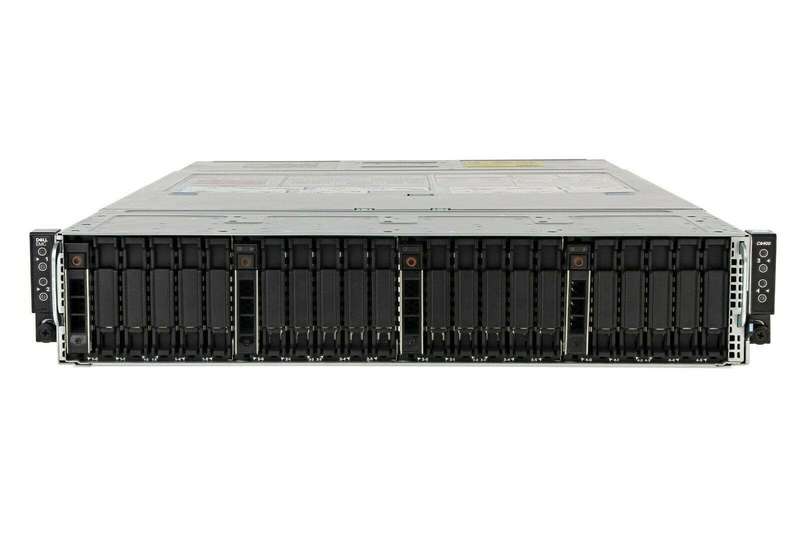

The Dell PowerEdge C6400 Blade Server is a powerful 2U rackmount server, designed to maximize efficiency, processing power, and scalability for high-performance computing (HPC), cloud infrastructures, and enterprise data centers. This system includes four Dell C6420 nodes, each featuring dual Intel Xeon Gold 6244 processors, 128GB DDR4 RAM, and two high-speed 1.2TB SAS drives.
Equipped with PERC H730 RAID controllers and redundant 1600W power supplies, this scalable HPC solution provides exceptional processing capability and advanced storage flexibility for demanding workloads such as AI, data analytics, scientific computing, and enterprise virtualization.
Key Features:
Scalable Multi-Node Architecture Includes 4 x Dell C6420 nodes, each with dual Intel Xeon Gold 6244 processors.
Enterprise-Grade Performance 16 cores, 32 threads per node for high-performance computing applications.
Massive Memory Capacity 128GB DDR4 RAM per node (512GB total), expandable up to 1TB per node.
Advanced RAID Storage 2 x 1.2TB SAS HDDs with four PERC H730 RAID controllers for enhanced data protection.
High-Speed Networking 1 x 1GbE RJ45 Ethernet per node for efficient data transfer.
Flexible Expansion Options PCIe slots and OCP mezzanine cards for networking and storage upgrades.
Redundant Power Efficiency Dual 1600W hot-plug power supplies (80+ Platinum efficiency) for fault tolerance.
Enterprise-Class Remote Management iDRAC9 with Lifecycle Controller for remote monitoring and system control.
Ideal Uses:
High-Performance Computing (HPC) Designed for AI workloads, scientific computing, and machine learning applications.
Enterprise Cloud & Virtualization Ideal for multi-node cloud computing and virtual machine hosting.
Big Data & AI Analytics Scalable storage and high-speed computing for large datasets.
Enterprise-Grade Data Centers Built for scalability, redundancy, and high-performance processing.
Specifications
Dell PowerEdge C6400 Multi-Node Server
- Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
- Manufacturer & Model: Dell PowerEdge C6400 with 4 x C6420 Nodes
- Form Factor: 2U Rackmount Blade Server
- Dimensions & Weight:
- Height: 87 mm (3.42 in)
- Width: 448 mm (17.64 in)
- Depth: 790 mm (31.1 in)
- Weight: Max 41 kg (90.4 lbs)
Processor Specifications (Per C6420 Node):
Processor Model: 2 x Intel Xeon Gold 6244
Total Cores/Threads: 16 cores, 32 threads (8C/16T per processor)
Base Frequency: 3.60GHz
Max Turbo Frequency: 4.40GHz
Cache: 24.75MB Intel Smart Cache per processor
Max # of UPI Links: 3
TDP: 150W per processor
Memory Specifications (Per C6420 Node):
Installed RAM: 128GB DDR4 2666MT/s (8 x 16GB modules)
Total Memory Capacity: Up to 1TB per node (16 DIMM slots)
Storage & RAID Specifications:
Hard Drives: 2 x 1.2TB SAS HDD - Total on system
Storage Support: Supports up to 6 x 2.5" SAS, SATA, SSD drives per node
RAID Controller: PERC H730P per node
I/O & Networking (Per C6420 Node):
PCIe Slots: 1 x PCIe Gen3 x16 Riser (Low Profile)
Additional Expansion: 1 x PCIe Gen3 x8 Storage Mezzanine, 1 x PCIe Gen3 x16 OCP Mezzanine
Embedded NIC: 1 x 1GbE RJ45 (Multiplexed between LOM and dedicated system management ports)
USB Ports: 2 x USB 3.0
Power & Management:
Power Supplies: 2 x 1600W hot-plug power supplies (80+ Platinum)
Remote Management: iDRAC9 with Lifecycle Controller
Systems Management & Integrations:
Compliant with IPMI 2.0
Dell OpenManage Suite:
- OpenManage Essentials, Mobile, Power Center
- Integration for Microsoft System Center & VMware vCenter
- Connections for HP Operations Manager, IBM Tivoli Netcool, CA Network and Systems Management
- Dell OpenManage Plug-in for Oracle Database Manager
Operating System Compatibility:
Supports Windows Server, Linux distributions, and virtualization platforms (OS not included).
Warranty & Inclusions:
6-Month Carry-In Warranty
What's in the Box?
Dell PowerEdge C6400 Blade Server with 4 x C6420 Nodes (Already Housed)
2 x Power Cables
No Rail Kit
No Front Bezel
Why Choose This Server?
Scalable Multi-Node Performance Supports up to 64 cores across 4 nodes for extreme processing power.
Enterprise-Grade Storage & RAID Advanced PERC H730P RAID controllers ensure data protection.
Redundant Power & Networking Dual 1600W PSUs and high-speed 1GbE connectivity.
Certified & Tested Refurbished Ensures full functionality and reliability.
