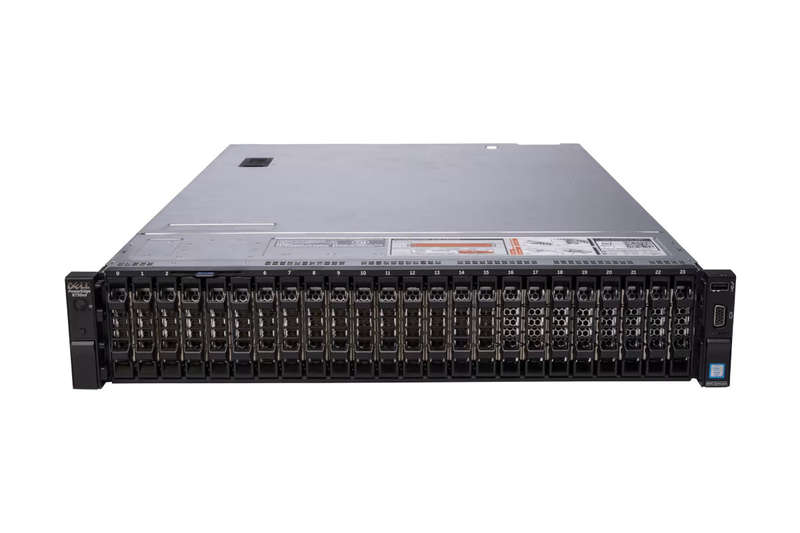

The Dell PowerEdge R730XD is a high-capacity 2U enterprise server optimized for dense storage and scalable performance. Featuring dual Intel Xeon E5-2660 V3 CPUs (20 cores total), this system is ideal for environments demanding rapid data access, virtualization, or application delivery with minimal downtime.
Equipped with 24 x 2.5" hot-plug bays, 128GB DDR4 RAM, enterprise SSDs and 10K SAS drives, it delivers balanced performance and flexibility, paired with powerful iDRAC8 remote management and redundant 750W power supplies.
Key Features & Benefits
Dual Intel Xeon E5-2660 V3 CPUs (20 Cores / 40 Threads Total) 2.6GHz base and 3.3GHz turbo for reliable parallel processing
128GB DDR4 ECC Registered Memory Expandable to 768GB with 2133MT/s support across 24 DIMM slots
Storage-Optimized 24 SFF Chassis Includes 2 x 480GB SSDs and 16 x 600GB SAS 10K drives for high-speed, reliable performance
PERC H730 Mini RAID Controller Hardware RAID with fast data protection (RAID 0/1/5/6/10/50/60)
Intel x550 10GbE + Broadcom 5720 1GbE Networking High-speed data throughput and reliable connectivity
Dual 750W Hot-Plug Redundant PSUs Energy-efficient and fail-safe power architecture
Remote iDRAC8 Management Lifecycle controller with Quick Sync, vFlash upgrade options and alert notifications
Ideal Uses
Private or Hybrid Cloud Storage Deploys as a dense, redundant storage host for scalable infrastructure
High-Performance Virtualization Excellent for VMware, Hyper-V, or Citrix environments with heavy VM demands
Data-Intensive Applications Ideal for large-scale ERP, CRM, or OLTP database solutions requiring fast disk I/O
Backup or File Server Acts as a resilient on-prem archive or network-attached storage unit with RAID redundancy
Specifications
Condition: Refurbished device with scratches and scuffs. Device has been extensively tested and is fully functional
Form Factor: 2U Rackmount
Processor: 2 x Intel Xeon E5-2660 V3 2.6GHz Base / 3.3GHz Turbo, 10 Cores / 20 Threads Each
Total Cores/Threads: 20 Cores / 40 Threads
Memory Installed: 128GB DDR4 ECC Registered
Memory Slots: 24 DIMM Slots Supports up to 768GB
Storage Configuration:
2 x 480GB SSD (2.5")
16 x 600GB 10K SAS HDD (2.5")
Drive Bays: 24 x 2.5" SFF Hot-Plug Bays
RAID Controller: PERC H730 Mini
Networking:
Intel x550 Dual-Port 10GbE
Broadcom 5720 Quad-Port 1GbE
Remote Management: iDRAC8 with Lifecycle Controller
Power Supply: 2 x 750W Hot-Plug Redundant PSUs (Platinum Certified)
Expansion Slots: Up to 6 x PCIe 3.0 + 1 Dedicated RAID Slot
Chipset: Intel C610
Chassis Support: ReadyRails Sliding/Static Rails for Tool-less Rack Mount
Operating System Support: Windows Server, RHEL, SUSE, VMware ESXi, Citrix XenServer
Warranty: 6 Month Carry-in Warranty
What's in the Box: Server as described, 2 x Power Cables
