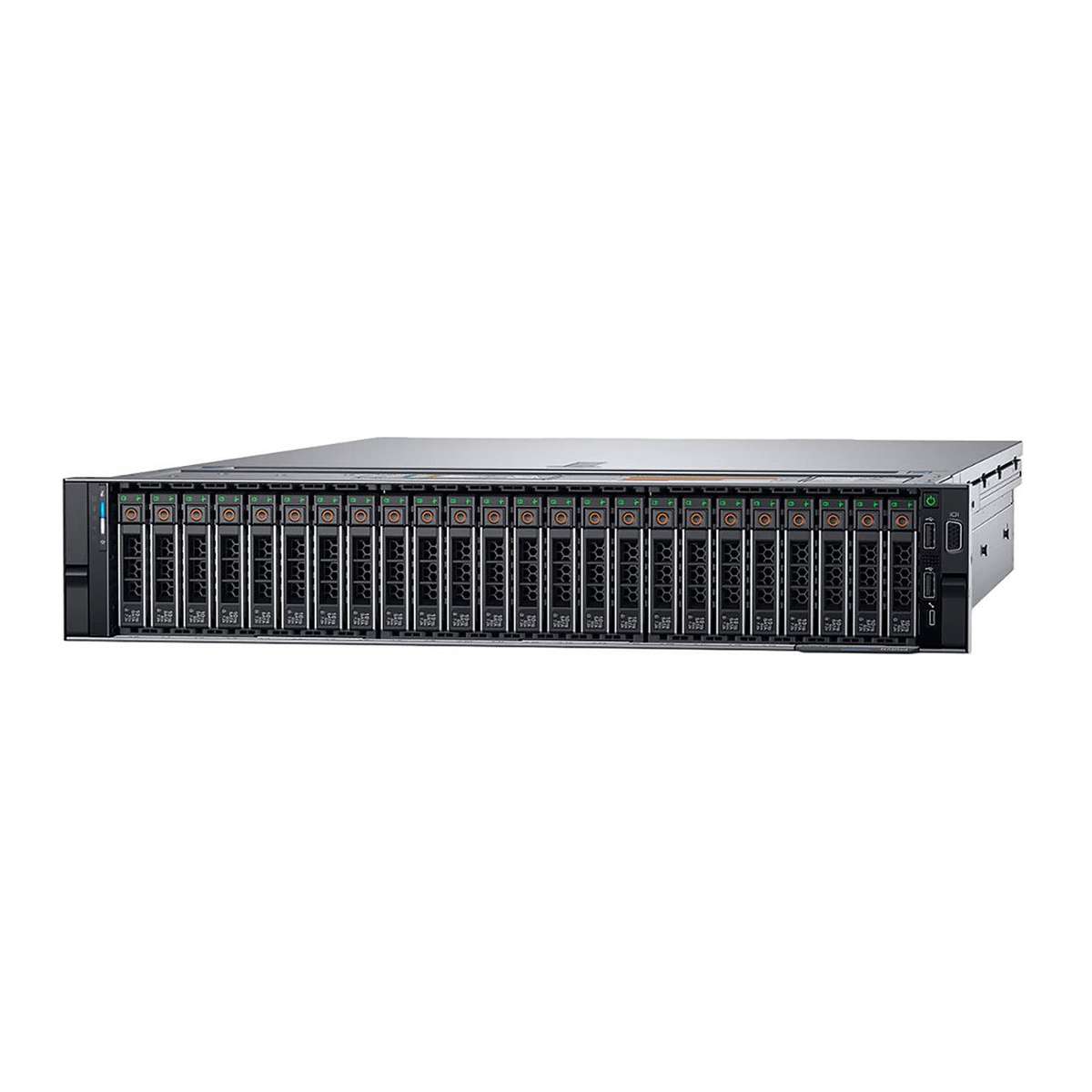

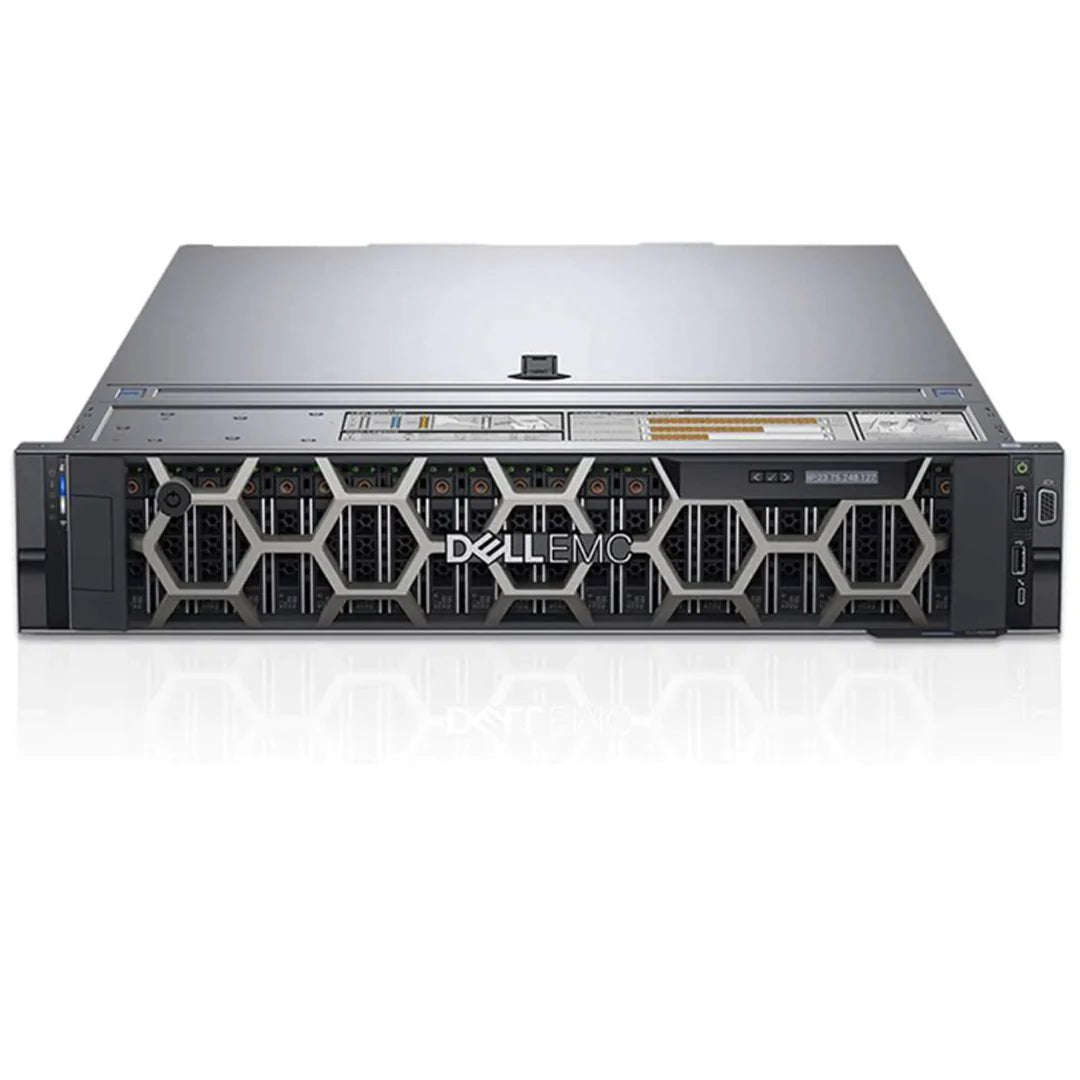

The Refurbished Dell PowerEdge R740XD 2U Rackmount Server is an enterprise-class virtualization and data center solution, delivering scalability, speed, and efficiency for demanding workloads. Featuring Dual Intel Xeon Platinum 8160 24-Core Processors, 512GB DDR4 RAM, and 8 x 3.2TB NVMe SSDs, this high-density server is optimized for virtual machines, cloud storage, and high-performance computing applications.
With advanced networking capabilities including Intel X710 Dual Port 10GbE, Intel I350 Dual Port 1GbE, and Qlogic QL41262 HXCU Dual Port 25GbE, this system ensures exceptional data transfer speeds, reduced latency, and superior network flexibility. It also includes iDRAC9 for remote management, OpenManage integration, and advanced server monitoring tools for seamless data center operations.
Key Features
Powerful Compute Performance Dual Intel Xeon Platinum 8160 24-Core Processors deliver 48 cores and 96 threads for extreme multi-threaded workloads.
High-Capacity Memory 512GB DDR4 ECC RAM with support for up to 1.53TB ensures efficient data handling for virtualization and enterprise applications.
Blazing-Fast NVMe Storage 8 x 3.2TB NVMe SSDs provide ultra-fast data access, low latency, and high throughput for data-intensive workloads.
Optimized for Virtual Machines & Data Centers Supports multiple VMs, cloud computing, and enterprise data management applications.
Advanced Networking Includes Intel X710 10GbE, Intel I350 1GbE, and Qlogic QL41262 25GbE dual-port network adapters for high-speed connectivity.
Enterprise-Grade Management iDRAC9 remote management, OpenManage integrations, and automated server monitoring tools ensure operational efficiency.
Redundant 1100W Platinum Power Supplies Delivers high efficiency and failover protection for continuous data center operations.
24-Bay Expandability Supports up to 24 x 2.5" SAS/SSD/NVMe drives with a maximum capacity of 184TB.
Ideal Uses
Virtual Machine Hosting Optimized for VMware, Hyper-V, and cloud-based virtualization environments.
Enterprise Data Centers High-density, scalable compute power for data-heavy applications.
Cloud & Edge Computing Ideal for hosting cloud-based applications, SaaS platforms, and remote computing solutions.
High-Performance Database Management Supports SQL, Oracle, and NoSQL databases with high IOPS and low latency.
Specifications
Processor Specifications
- Processors: Dual Intel Xeon Platinum 8160
- Cores / Threads: 48 Cores / 96 Threads (24 Cores per CPU)
- Base Clock Speed: 2.10GHz
- Max Turbo Frequency: 3.70GHz
- Cache: 33MB L3 Cache
- TDP: 150W
- PCI Express Lanes: 48
- Intel Virtualization Technology (VT-x, VT-d): Yes
Memory Specifications
- Memory Type: RDIMM (ECC Registered DDR4)
- Installed Memory: 512GB DDR4 (16 x 32GB 2666MHz)
- Memory Slots: 24 DDR4 DIMM slots
- Maximum Memory: 1.53TB DDR4
Storage & RAID Configuration
- Primary Storage:
- 8 x 3.2TB NVMe SSDs (High-performance flash storage for fast data access)
- Total NVMe Storage: 25.6TB NVMe SSD capacity
- Boot Storage:
- BOSS Controller Card with 2 x 240GB M.2 SSD (RAID 1)
- Drive Bays:
- Up to 24 x 2.5" SAS/SSD/NVMe Bays (Expandable to 184TB max capacity)
- RAID Controller: HBA330 (No hardware RAID, software RAID S140 supported)
- Internal Dual SD Module for Redundant Booting
Networking & Connectivity
High-Speed Network Adapters:
- Intel X710 DP 10GbE (Dual-Port 10-Gigabit Ethernet)
- Intel I350 DP 1GbE (Dual-Port 1-Gigabit Ethernet)
- Qlogic QL41262 HXCU DP 25GbE x 2 (Dual-Port 25-Gigabit Ethernet with SFP28)
Front Ports:
- 1 x Dedicated iDRAC Direct USB
- 2 x USB 2.0
- 1 x VGA
Rear Ports:
- 1 x Dedicated iDRAC Network Port
- 1 x Serial
- 2 x USB 3.0
- 1 x VGA
Management & Monitoring Tools
Embedded Management:
- iDRAC9 with Lifecycle Controller (for remote server management)
OpenManage Integrations:
- VMware® vCenter, Microsoft System Center, RedHat Ansible® Modules
- Dell EMC RACADM CLI, Dell EMC Repository Manager, Dell EMC Update Utility
Remote Management Connectivity:
- IBM Tivoli, Nagios Core, Micro Focus Operations Manager, Dell EMC Server Administrator
Power & Efficiency
- Power Supplies: Dual 1100W Platinum Redundant Power Supplies
- Energy Efficiency: Optimized for low power consumption and data center operations
Form Factor & Physical Dimensions
- Form Factor: 2U Rackmount Server
- Height: 86.8mm (3.4")
- Width: 434mm (17.1")
- Depth: 737.5mm (29.0")
- Weight: 33.1kg
Warranty & Condition
Condition: Refurbished device with minor scratches and scuffs. Extensively tested and fully functional.
Warranty: 12-Month Carry-In Warranty
What's in the Box?
Dell PowerEdge R740XD Server (Configured as per above)
Dual Power Cable
Front Bezel
Rail Kit<...
