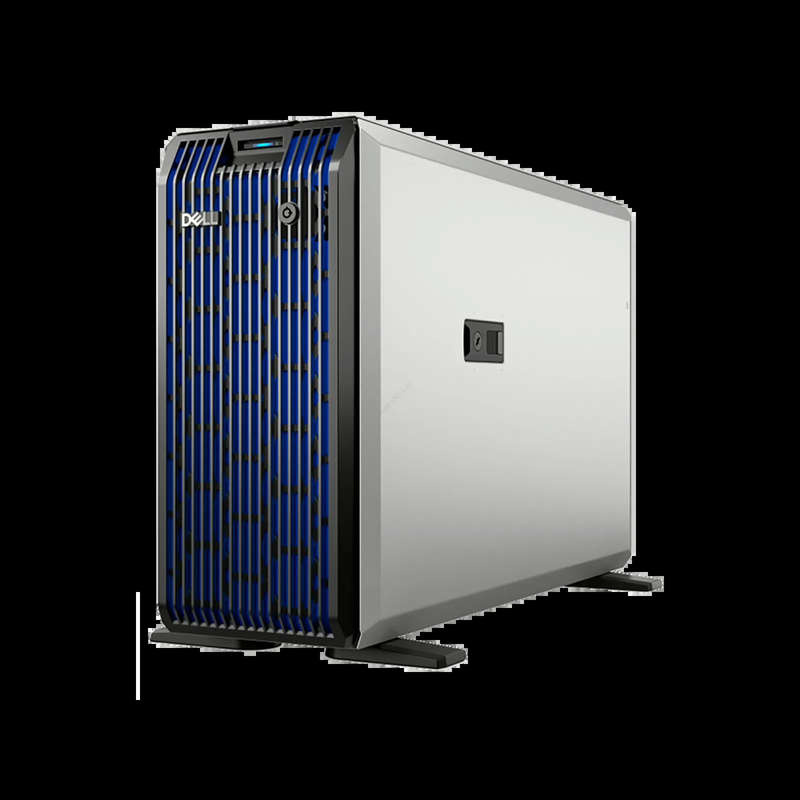

Dell PowerEdge T360 Tower Server - Intel Xeon E-2414 2TB SSD 16GB RAM 700W
The Dell PowerEdge T360 is a robust tower server engineered to meet the demanding needs of small to medium-sized businesses, remote offices, and near-edge deployments. It offers a balance of performance, scalability, and reliability, making it suitable for various workloads.
Processor
Intel Xeon E-2414 quad-core processor with a base frequency of 2.6 GHz, delivering efficient performance for multitasking and computational tasks.
Memory
Equipped with 16 GB DDR5-SDRAM, configured as 1 x 16 GB module. The server supports up to 128 GB ECC UDIMM across four DIMM slots, allowing for future memory expansion.
Storage
Includes a 2 TB 3.5-inch SATA hard drive operating at 7,200 RPM. The chassis accommodates up to eight 3.5-inch hot-plug SAS/SATA HDDs, providing a maximum storage capacity of 128 TB.
Networking
Features dual 1 Gigabit Ethernet LAN ports, utilizing 10/100/1000Base-T(X) cabling technology for reliable network connectivity.
Power Supply
Equipped with a 700 W Titanium-rated hot-plug redundant power supply, ensuring energy efficiency and system reliability.
Form Factor
The server has a 4.5U tower chassis design, measuring 15.06 inches in height (with feet), 6.89 inches in width, and 22.82 inches in depth (with bezel).
Specifications
Processor
Processor manufacturer: Intel
Processor family: Intel Xeon E
Processor model: E-2414
Processor frequency: 2.6 GHz
Processor boost frequency: 4.5 GHz
Performance cores: 4
Processor cores: 4
Processor cache: 12 MB
Number of processors installed: 1
Thermal Design Power (TDP): 55 W
Processor threads: 4
Memory
Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Buffered memory type: Unregistered (unbuffered)
Memory layout (slots x size): 1 x 16 GB
Memory clock speed: 4800 MHz
Memory slots: 4x DIMM
ECC: Yes
Maximum internal memory: 128 GB
Storage
Total storage capacity: 2 TB
Number of HDDs installed: 1
HDD capacity: 2 TB
HDD speed: 7200 RPM
HDD size: 3.5"
RAID support: Yes
Supported RAID controllers: PERC H355
Hot-Plug support: Yes
Internal drive bays: 8
Optical drive type: No
Network
Ethernet interface type: Gigabit Ethernet
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN: Yes
LAN controller: Broadcom 5720
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Serial ports quantity: 1
VGA (D-Sub) ports quantity: 1
Power
Redundant power supply (RPS) support: Yes
Power supply: 700 W
Number of redundant power supplies supported: 2
Number of redundant power supplies installed: 2
Power cable length: 2 m
Power cable connector 1: C13 coupler
Power cable connector 2: C14 coupler
Power cable current: 10 A
