Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Processor: Intel® Xeon® W5-2445
Architecture: Sapphire Rapids, 10nm
Total Cores: 10
Total Threads: 20
Base Clock Speed: 3.10 GHz
Max Turbo Frequency: 4.60 GHz
L3 Cache: 26.25MB
PCIe Lanes: Up to 64
TDP: 175W
Memory Support: DDR5 ECC RDIMM up to 4800 MT/s
Platform Features: Intel Deep Learning Boost, Intel Turbo Boost 2.0
Memory: 32GB DDR5 ECC RDIMM
Configuration: 1 x 32GB Registered ECC
Speed: 4800 MT/s
Type: DDR5, ECC (Error Correction Code), Registered DIMM
Channels Supported: Up to 8-channel architecture (platform dependent)
Max Capacity Supported by Platform: Up to 1TB+
Primary Storage: 512GB NVMe PCIe Gen 4 SSD (SED Ready)
Interface: PCIe Gen 4.0 x4
Read/Write Speeds: Up to 7,000 MB/s (read), up to 5,000 MB/s (write)
Encryption: Self-Encrypting Drive (SED) compliant
Location: M.2 FlexBay boot slot
Graphics: NVIDIA RTX A4000 16GB GDDR6
CUDA Cores: 6144
GPU Architecture: Ampere
VRAM: 16GB GDDR6
Memory Interface: 256-bit
Memory Bandwidth: 448 GB/s
RT Cores: 40 (2nd Gen for real-time ray tracing)
Tensor Cores: 160 (3rd Gen for AI acceleration)
Display Outputs: 4 x DisplayPort 1.4a
Max Resolution: 7680 x 4320 (8K)
VR Ready: Yes
Power Consumption: 140W
Form Factor: Full-height single-slot PCIe Gen 4
Driver Support: ISV-certified drivers for apps like Autodesk, Adobe, SolidWorks, and more
Motherboard / Chipset: Intel W790 Workstation-Class Chipset
Supports Xeon W-2400/W-3400 CPUs
Supports up to 4TB DDR5 ECC RDIMM (W-3400 models only)
PCIe Expansion: Gen 4.0, multiple x16 slots
NVMe RAID: Supported via VROC
Storage Controller: Intel integrated SATA/SAS controller
Chassis: Dell Precision 5860 Tower
PSU: 750W, 80+ Platinum Certified
Drive Bays: Up to 4 x M.2 NVMe, 4 x 3.5"/2.5" SATA/SAS bays
Cooling: High-performance thermal solution, workstation-optimized airflow
Dimensions: Approx. 41.7 cm (H) x 17.6 cm (W) x 51.8 cm (D)
Tool-less chassis access
Networking: Integrated Intel i219-LM GbE NIC
Speed: 10/100/1000 Mbps
PXE and Wake-on-LAN support
Optional: Upgradeable to 10GbE/25GbE NICs
Operating System: Windows 11 Pro for Workstations (Pre-Installed)
Supports CPUs with 6+ cores
Enhanced file system performance
Support for persistent memory and large CPU cores
Full security suite with BitLocker, Windows Defender, and virtualization-based security
Power Supply: 750W (Platinum Efficiency Rated)
Input: 100240V AC
Efficiency: 80 Plus Platinum Certified
Ports and Connectivity

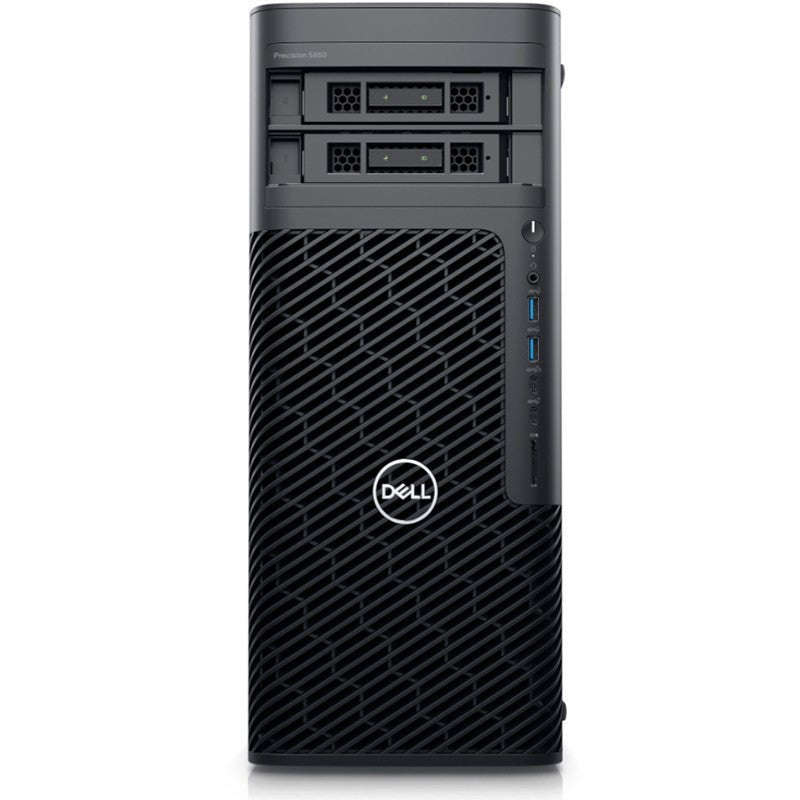

Front I/O:
2 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 2 Type-C
Universal Audio Jack
SD Card Reader (Optional not included in this config)

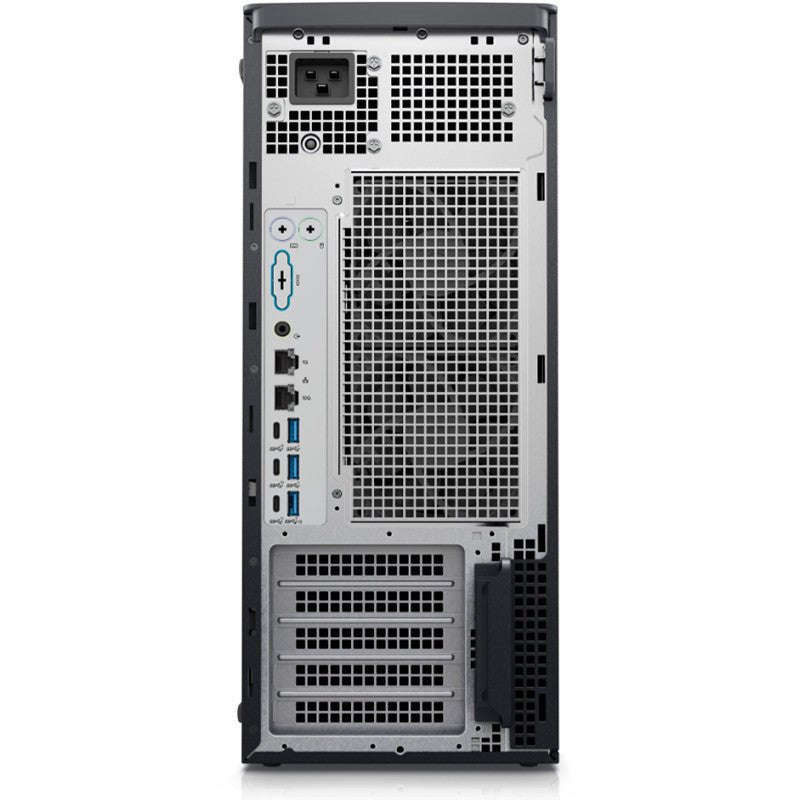

Rear I/O:
4 x USB 3.2 Gen 2 Type-A
2 x USB 2.0
1 x RJ45 Ethernet (GbE)
2 x PS/2 (Optional Add-In Card)
Audio Line-In / Line-Out / Mic-In
Expansion Slots
PCIe x16 Gen 4.0 Up to 3 slots
PCIe x8 Gen 4.0 Up to 2 slots
Additional M.2 slots for NVMe SSDs
Optical Drive
