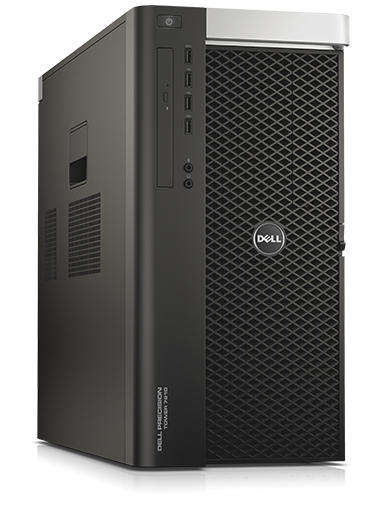

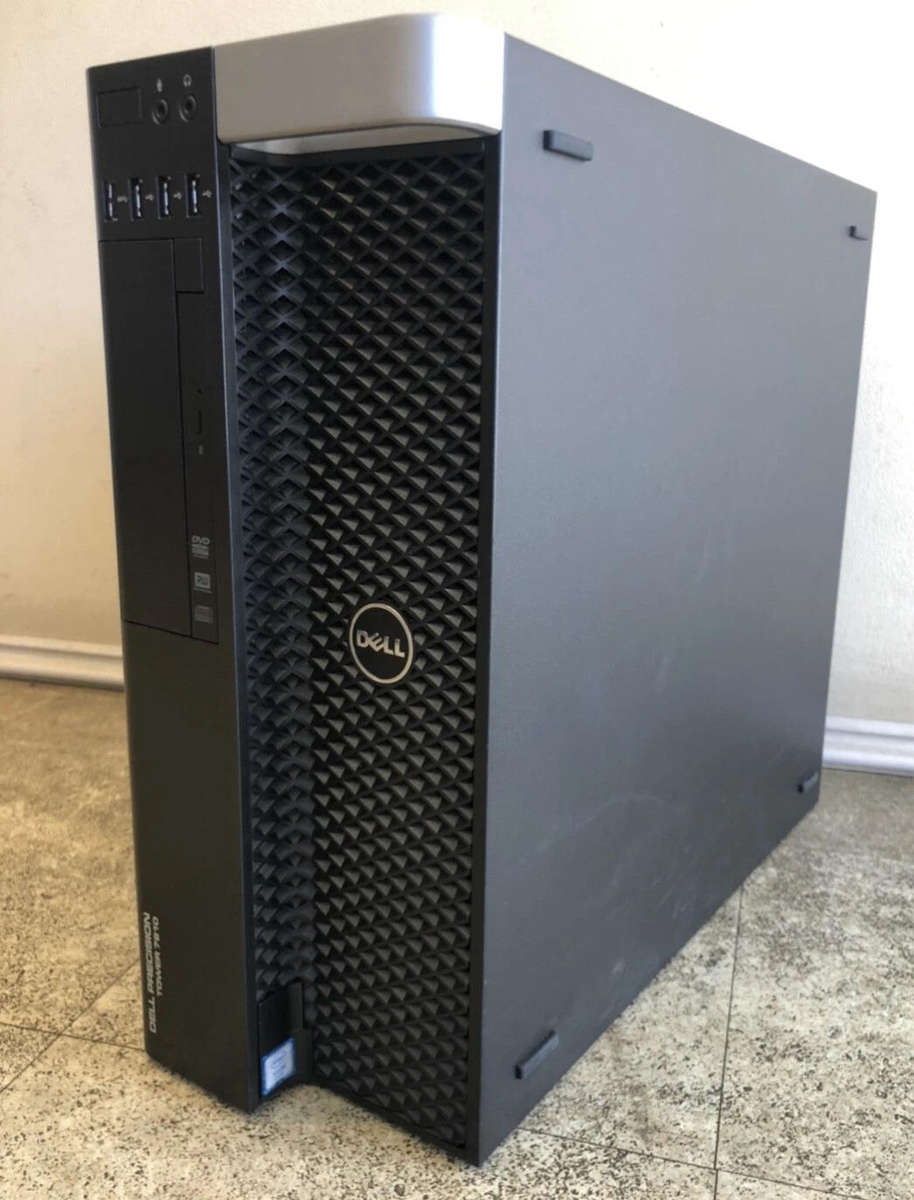

Dell Precision Tower 7810 workstation with Xeon CPU E5-2637 v4 (2 Processors), 24GB DDR4 Ram, 256GB

Key Specifications

🧠 Processor (CPU)
Model: Dual Intel Xeon E5-2637 v4

Cores/Threads: 4 cores / 8 threads per processor

Base Clock Speed: 3.5 GHz

Turbo Boost: Up to 3.8 GHz

TDP: 135W per processor

Total Cores: 8 cores / 16

These processors are well-suited for multi-threaded workloads, such as virtualization, 3D rendering

🧾 Memory (RAM)
Capacity: 24GB DDR4 ECC RDIMM

Slots: 8 DIMM slots (4 per processor)

Maximum Supported: Up to 256GB

While 24GB is adequate for many tasks

*CPU: Maximum Ram support 1.5TB ECC

💾 Storage
Primary Storage: 256GB SSD

Secondary Storage: 500GB HDD

This configuration provides a balance between speed (SSD for the operating system and applications) and capacity (HDD for data storage)

🎮 Graphics
GPU Model: NVIDIA Quadro 2000 1GB GDDR5

The Quadro 2000 is an entry-level professional GPU, suitable for tasks like CAD, 3D modeling, and video editing.

🔌 Ports & Slots
Front I/O:

1 x USB 3.0

3 x USB 2.0

1 x Audio In

1 x Audio Out

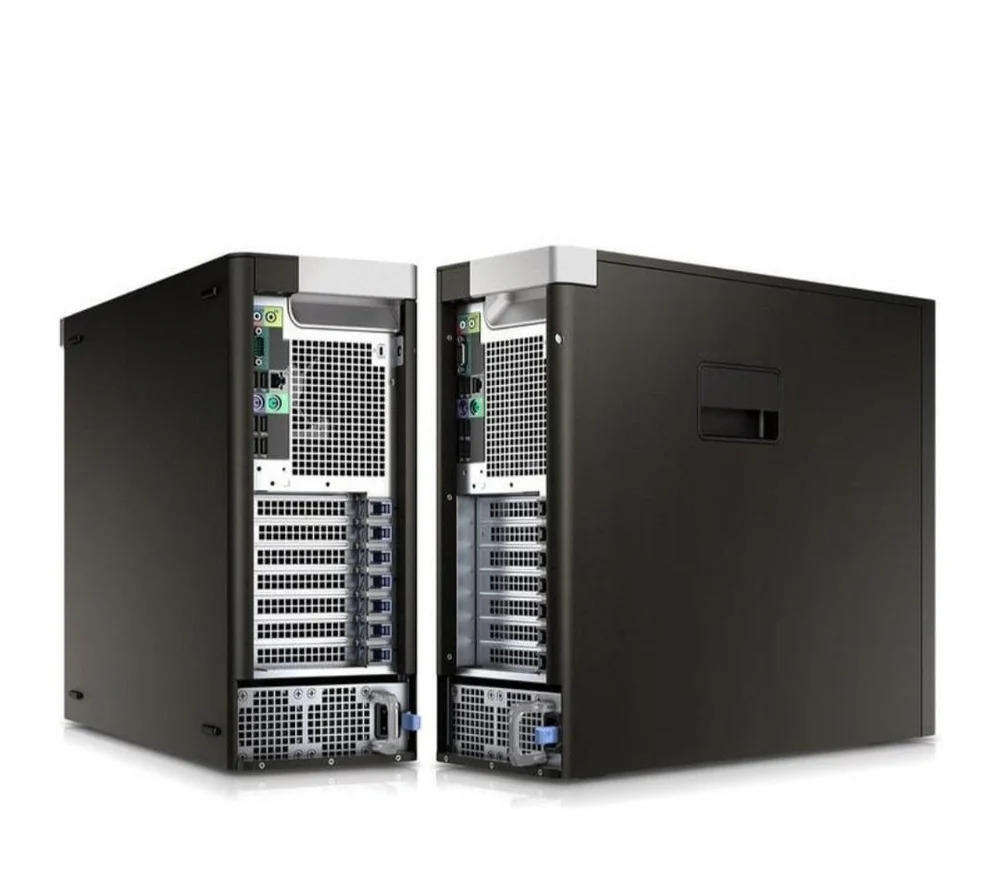

Rear I/O:

3 x USB 3.0

3 x USB 2.0

2 x PS/2

1 x Serial

1 x RJ45 (Intel Gigabit Ethernet)

Audio In/Out

Expansion Slots:

2 x PCIe x16 Gen 3

1 x PCIe x16 Gen 3 wired x8 (half-length)

1 x PCIe x4 Gen 2

1 x PCIe x1 Gen 2

1 x PCI 32-bit/33MHz

These ports and slots provide flexibility for future upgrades and peripheral connectivity.

Dimensions & Power
Dimensions: 414.0 x 172.5 x 470.9 mm (HxWxD)

Weight: Approximately 18.5 kg

Power Supply:

80 Plus Gold certified

90% efficient

Options: 825W or 685W

The robust power supply ensures stable operation, even under heavy workloads.

🖥 Operating Systems
Supported OS:

Windows 10 Pro for Workstations
