Dell Pro SD25 USB-C Smart Docking Station 210-BRFM
Get the power and agility to work your way with the latest smart dock featuring up to 130W USB-C power delivery and remote management capabilities.
Features & Design
A smarter workspace
Gain the versatility to create your ideal workspace and boost your AI PC productivity with support for up to 4 displays, up to 130W power delivery, and multiple ports to connect all your peripherals.
Most manageable
Elevate the IT management experience with no software or PC connection required, allowing you to remotely manage all your Dell Pro Smart Docks.
Most manageable
Remotely manage your smart docks without end-user presence from the Dell Device Management Console - the industry's first holistic peripheral management solution that configures, deploys, and updates smart docks over Wi-Fi.
Work securely
Keep users working confidently with enterprise-grade WPA-3 192-bit encryption for secure Wi-Fi communication. Safeguard your sensitive data with tamper-resistant, hardware-based encryption built into your Dell Pro Smart Dock.
Effortless maintenance
Reduce IT efforts by scheduling updates during off-hours, while ensuring fleetwide firmware compliance and eliminating end user interruptions.
Connect your way

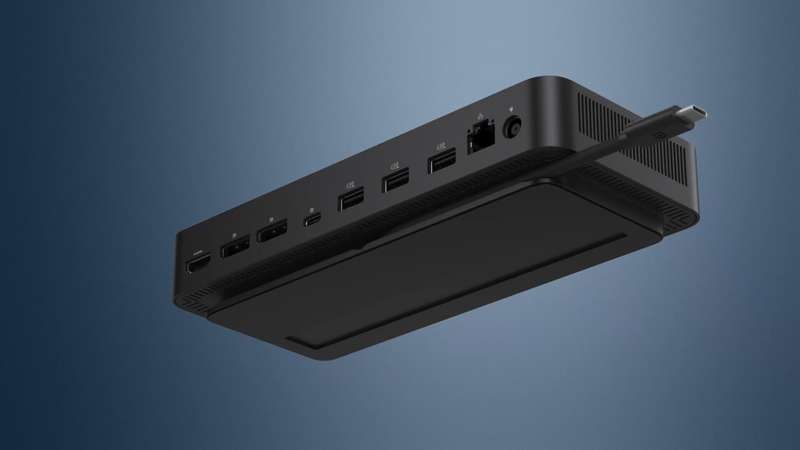

Configure your workspace to your liking with an ambidextrous USB-C cable that can be routed left or right.
Technical Specification
Product: Dell Pro SD25 USB-C Smart Docking Station
Product Type: Smart Dock
Device Supported: Notebook
Connectivity Technology: Wired
Number of Displays Supported: 4
Video Resolution
DP1.4 with Display Stream Compression
- 4x WQHD (3440 x 1440) @ 60Hz
- 3x WQHD (3440 x 1440) @ 60Hz
- 2x 5K (5120 x 2160) @ 60Hz
- 1x 6K (6144 x 3456) @ 60Hz
DP1.4 without Display Stream Compression
Up to
- 4x HD (1280x720) @ 60Hz
- 3x FHD (1920x1080) @ 60Hz
- 2x QHD (2560x1440) @ 60Hz
- 1x 4K (3840 x 2160) @ 60Hz
Ethernet Technology: RJ45 Ethernet port, 2.5GbE
USB Ports (Power)
- 4x USB-A 3.2 Gen 2 (4.5W each)
- 1x USB-C 3.2 Gen 2 (15W)
- 1x USB-C Multi-function DisplayPort (7.5W)
- All deliver power with or without PC
USB Power Delivery: 130W (Dell systems), 96W (non-Dell systems)
Maximum Power Supply Wattage: 180W
Dimensions (H x W x D): 205 x 90 x 35.25mm
Weight: 562 g
Management Features
Host PC Management
- MAC address pass-through
- PXE Boot
- Dock Power Button Sync
- Wake-On-LAN
- WLAN to LAN switch
- Kernel Direct Memory Access (DMA) protection
Dock Management Features
- Remote firmware updates without a PC
- Host PC based firmware updates
- Firmware update on disconnect
- Port Disablement independent of PC
Warranty: 3-year Limited Hardware with Advanced Exchange

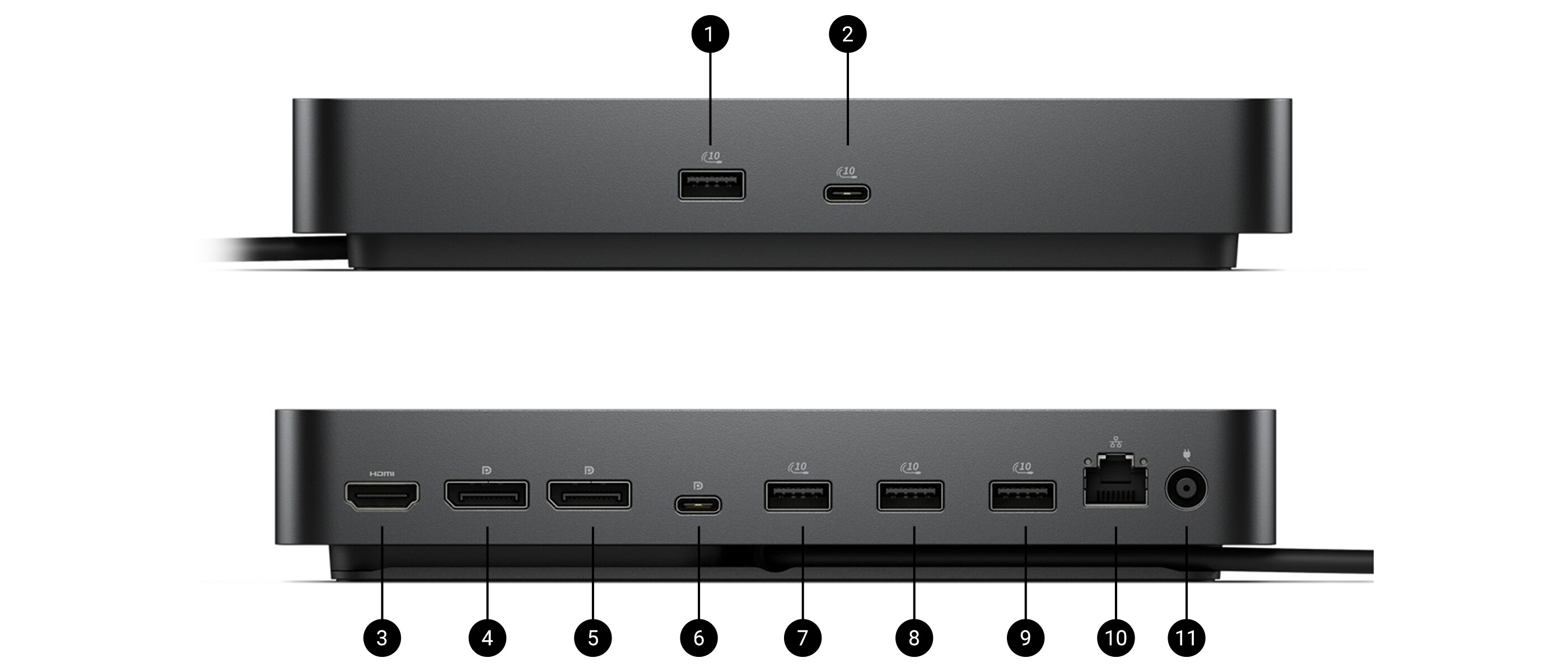

Ports and slots
- USB-A 3.2 Gen 2 with PowerShare
- USB-C 3.2 Gen 2
- HDMI 2.1
- DisplayPort 1.4
- DisplayPort 1.4
- USB-C 3.2 Gen 2 Multifunction DisplayPort 1.4
- USB-A 3.2 Gen 2 with PowerShare
- USB-A 3.2 Gen 2 with PowerShare
- USB-A 3.2 Gen 2 with PowerShare
- 2.5 Gigabit Ethernet (RJ45)
- Power In
