Description:

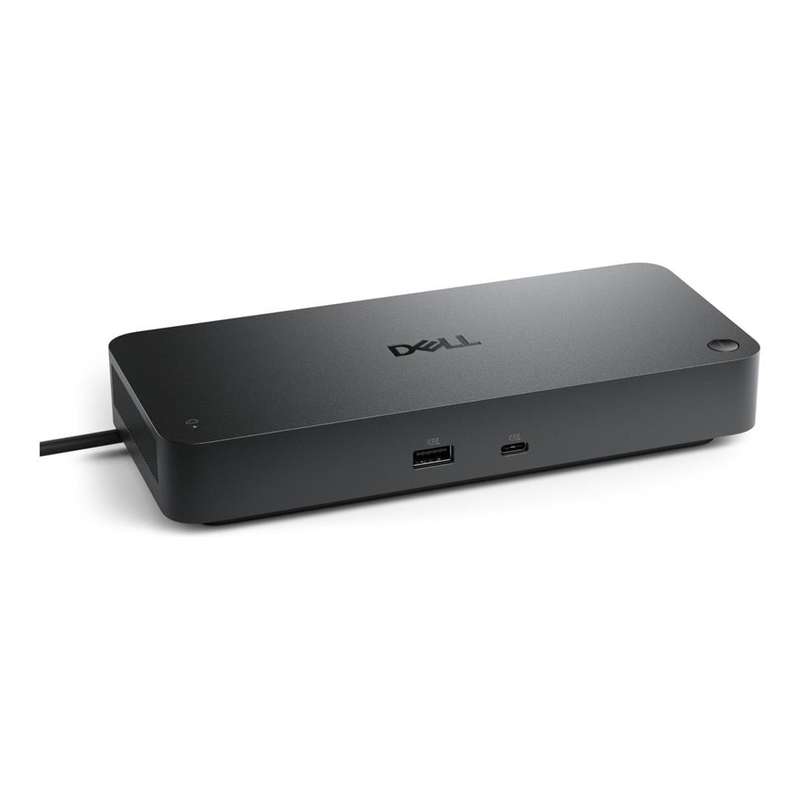

Dell Pro SD25 USB-C Smart Docking Station 210-BRFM
Get the power and agility to work your way with the latest smart dock featuring up to 130W USB-C power delivery and remote management capabilities.
Features & Design
A smarter workspace
Gain the versatility to create your ideal workspace and boost your AI PC productivity with support for up to 4 displays, up to 130W power delivery, and multiple ports to connect all your peripherals.
Most manageable
Elevate the IT management experience with no software or PC connection required, allowing you to remotely manage all your Dell Pro Smart Docks.
Most manageable
Remotely manage your smart docks without end-user presence from the Dell Device Management Console - the industry's first holistic peripheral management solution that configures, deploys, and updates smart docks over Wi-Fi.
Work securely
Keep users working confidently with enterprise-grade WPA-3 192-bit encryption for secure Wi-Fi communication. Safeguard your sensitive data with tamper-resistant, hardware-based encryption built into your Dell Pro Smart Dock.
Effortless maintenance
Reduce IT efforts by scheduling updates during off-hours, while ensuring fleetwide firmware compliance and eliminating end user interruptions.
Connect your way
Configure your workspace to your liking with an ambidextrous USB-C cable that can be routed left or right.
Technical Specification
Product: Dell Pro SD25 USB-C Smart Docking Station
Product Type: Smart Dock
Device Supported: Notebook
Connectivity Technology: Wired
Number of Displays Supported: 4
Video Resolution
DP1.4 with Display Stream Compression
4x WQHD (3440 x 1440) @ 60Hz
3x WQHD (3440 x 1440) @ 60Hz
2x 5K (5120 x 2160) @ 60Hz
1x 6K (6144 x 3456) @ 60Hz
DP1.4 without Display Stream Compression
Up to
4x HD (1280x720) @ 60Hz
3x FHD (1920x1080) @ 60Hz
2x QHD (2560x1440) @ 60Hz
1x 4K (3840 x 2160) @ 60Hz
Ethernet Technology: RJ45 Ethernet port, 2.5GbE
USB Ports (Power)
4x USB-A 3.2 Gen 2 (4.5W each)
1x USB-C 3.2 Gen 2 (15W)
1x USB-C Multi-function DisplayPort (7.5W)
All deliver power with or without PC
USB Power Delivery: 130W (Dell systems), 96W (non-Dell systems)
Maximum Power Supply Wattage: 180W
Dimensions (H x W x D): 205 x 90 x 35.25mm
Weight: 562 g
Management Features
Host PC Management
MAC address pass-through
PXE Boot
Dock Power Button Sync
Wake-On-LAN
WLAN to LAN switch
Kernel Direct Memory Access (DMA) protection
Dock Management Features
Remote firmware updates without a PC
Host PC based firmware updates
Firmware update on disconnect
Port Disablement independent of PC
Warranty: 3-year Limited Hardware with Advanced Exchange
Ports and slots
USB-A 3.2 Gen 2 with PowerShare
USB-C 3.2 Gen 2
HDMI 2.1
DisplayPort 1.4
DisplayPort 1.4
USB-C 3.2 Gen 2 Multifunction DisplayPort 1.4
USB-A 3.2 Gen 2 with PowerShare
USB-A 3.2 Gen 2 with PowerShare
USB-A 3.2 Gen 2 with PowerShare
2.5 Gigabit Ethernet (RJ45)
Power In
