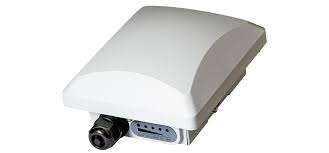

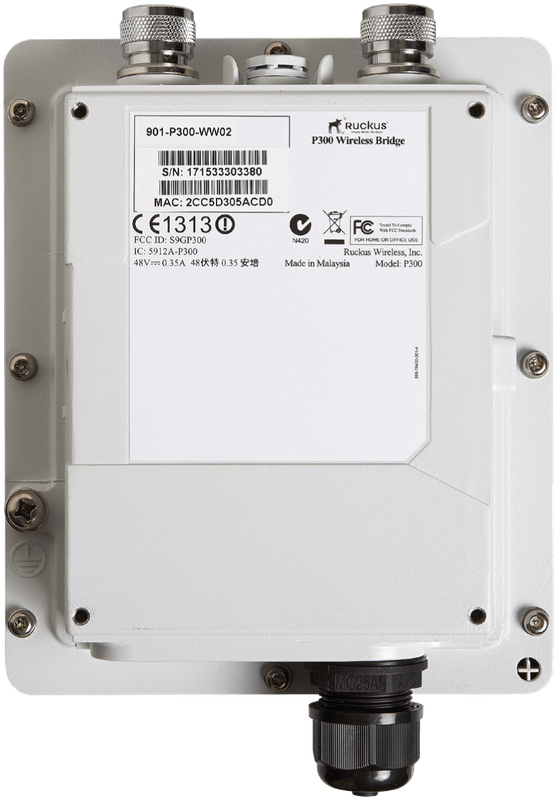

Dell Ruckus P300Smart 802.11ac 5GHz Outdoor Access Point is an enterprise-grade point-to-point and point-to-multipoint wireless bridge built to deliver high-speed outdoor connectivity where cabling isn't feasible. Supporting peak PHY rates of 867Mbps and real-world throughput up to 500Mbps, this powerful access point extends your network to remote locations with speed, stability, and security. The P300 is ideal for broadband providers, hospitality environments, educational campuses, and enterprises with dispersed buildings.
This new outdoor unit features a rugged, IP67-rated enclosure and integrated directional antennas with up to 14dBi gain, making it resilient in extreme weather conditions. With auto-pairing, flexible mounting, and intuitive configuration via web or CLI, the P300 ensures easy deployment with minimal IT intervention.
Key Features & Benefits:
802.11ac 5GHz Outdoor Wireless High-capacity wireless bridging with up to 867Mbps PHY rate and 500Mbps real-world throughput.
Point-to-Point and Point-to-Multipoint Support Connect buildings, hotspots, or campus areas up to 12 km apart.
Rugged Outdoor Design IP67-rated enclosure withstands temperatures from -40°C to 65°C.
Integrated 14dBi Antenna Directional antenna with 30° beamwidth and optional external antenna support.
PoE Powered Operates via standard 802.3af Power over Ethernet for simplified installation.
Simple Management Web UI, CLI (SSH/Telnet), and SNMP for streamlined configuration and monitoring.
Ideal Uses:
Enterprise Campus Connectivity Extend LAN between buildings without trenching or cabling.
Remote Surveillance Backhaul Ideal for outdoor cameras in parking lots, perimeters, or rooftops.
Rural Internet Access Bridge areas without fixed-line infrastructure.
Hotel & Resort Wi-Fi Extensions Reliable, high-speed wireless for large grounds or external facilities.
Specifications
Condition:
Device with no signs of previous use. Device has been extensively tested and is 100% Functional.
Manufacturer & Model:
Dell Ruckus P300Smart
Form Factor:
Outdoor Point-to-Point / Multipoint Wireless Access Point
Wireless Specifications:
IEEE 802.11a/n/ac (5GHz)
2x2:2 MIMO
Modulation: OFDM
Up to 867Mbps Peak PHY Rate
UDP Throughput: Up to 500Mbps
Channel Bandwidths: 20/40/80MHz
Frequency Band: 5.15 5.875GHz
Spatial Streams: 2
WPA2 AES Security
Antenna & RF Specs:
Integrated 14 dBi Directional Antenna
30° 3dB Beamwidth
Up to 36dBm EIRP
Up to -96dBm Receive Sensitivity
2 External N-Type Antenna Ports
Max Distance: 12 km
Point-to-Multipoint Coverage:
30° with internal antenna
120° with optional external antenna
Ports & Interfaces:
1 x RJ-45 10/100/1000 Mbps Ethernet Port
Auto MDI/MDX
PoE 802.3af Support
Power Requirements:
802.3af PoE Input
Power Draw:
Quiescent: 6.5W
Typical: 7.5W
Peak: 11W
Physical & Environmental:
Dimensions: 18cm x 15cm x 8.6cm
Weight: 2.1 kg (without bracket), 2.5 kg (with bracket)
Operating Temperature: -40°C to 65°C
Lockable: Pad-Eye Compatible
Enclosure Rating: IP-67 (Outdoor Rated)
Operating System:
Not Applicable (Access Point)
Warranty & Inclusions
Warranty: 12-Month Carry-In Warranty
What's in the Box?
Dell Ruckus P300Smart Outdoor Access Point
Quick Start Guide
High-Speed Outdoor Bridging Fast, reliable Wi-Fi where cables can't reach.
Built for Harsh Environments IP67 rating for all-weather deployments.
Flexible & Scalable Expand point-to-multipoint setups with ease.
Quick Deployment Auto-pairing and intuitive software reduce install time.
