Description
Overview.

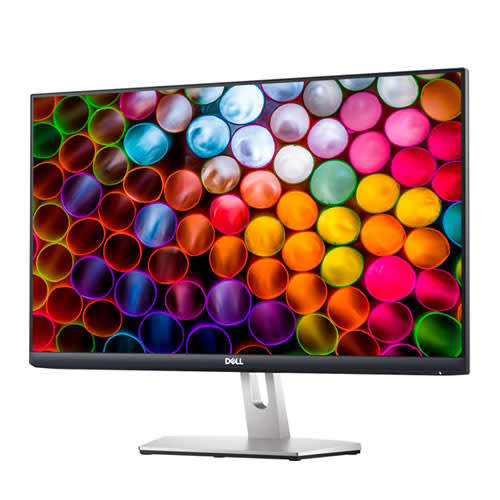

23.8 FHD monitor beautifully designed to sit easily into any space ready for your everyday lifestyle.
Specifications
Viewable image size (diagonal): 23.8 inch
Active display area (horizontal x vertical): 1920 x 1080 at 75 Hz
Maximum resolution: FHD
Aspect ratio: 16:9
Colour gamut (typical): 72% NTSC (CIE 1931)
Typical viewing angles: 178° (vertical) typical
178° (horizontal) typical
Response time (gray to gray): 8 ms (Grey to Grey)
Backlight: LED
Pixel Pitch: 0.2745 x 0.2745 mm
Contrast ratio: 1000:1
Colour depth: 16.7 M
Connectivity:
2 x HDMI ports (ver 1.4)
1 x Audio line-out port
Power :
Voltage Required
100 to 240 VAC / 50 or 60 Hz ± 3Hz / 1.5 A (typical)
Power Consumption (Operational)
16W (typical) /21W (maximum)
Power Consumption Stand by / Sleep
Less than 0.3W
Dimensions & weight:
Border width (edge of monitor to active area)
5.40 mm (Top/Left/Right)
20.70 mm (Bottom)
Height with stand (Compressed ~ Extended)
412.8mm
16.25 inches
Width
537.8 mm
21.17 inches
Depth
152.8 mm
6.02 inches
Height without stand
322.6 mm
12.70 inches
Width without stand
537.8 mm
21.17 inches
Depth without stand
53.8mm
2.12 inches
Weight (panel only - for VESA mount)
3.3 kg (7.28 lb)
Weight (with packaging)
5.09 kg (13.00 lb)
Standard service plan/ Warranty:
3-Year Advanced Exchange Service
What's in the box
Monitor
Stand riser and base
Power cable
1 x HDMI cable
VESA cover
Quick setup guide
Safety, Environmental, and
Regulatory Information
