Delphi 2 way Female

Delphi 2 way Female

80 available / new
R40.00
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
ACC-177
Bob Shop ID
614719015

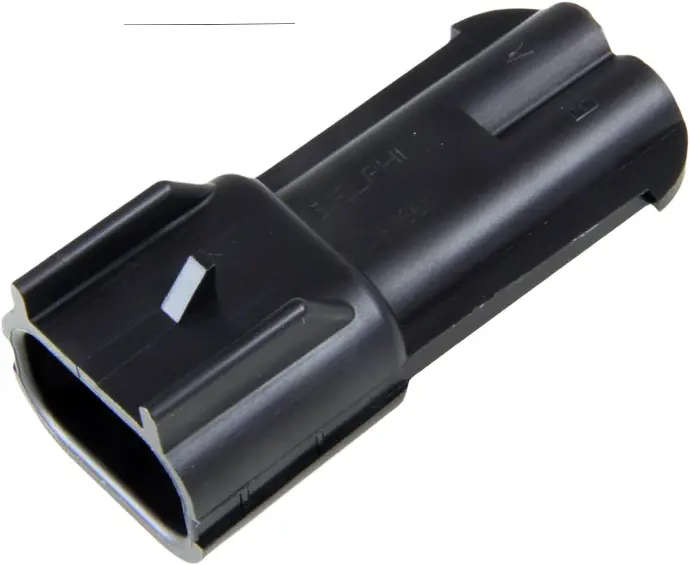

Weather-Pack sealed female automotive connector assemblies with triple ribbed silicone connectors and cavity seals designed to withstand extreme temperatures, chemicals, and fluids. The terminals of these Weather-Pack automotive connectors are tin-plated and have special core wings that allow crimp-only connections so solder is not needed, the dual tangs on the terminals help prevent backing out. These Weather-Pack automotive connectors have positive locking indexing to prevent mismating.


Typical applications for these Weather Pack sealed automotive connectors are low energy, low voltage automotive applications in harsh environments such as commercial vehicles and marine applications. For mating connectors, crimp terminals, and cable seals please see the table.

Type Automotive Connector
Number of Contacts 2
Gender Female
Number of Rows 1
Current Rating 20A
Mounting Type Cable Mount
Series Weather-Pack
Color Black
Termination Method Crimp
Height 20.8mm
Width 21.5mm
Housing Material PA
Depth 40.8mm
Maximum Operating Temperature +125°C
Minimum Operating Temperature -40°C
Water Proof Yes
Dust Proof Yes

Resources:

Datasheet
