Package list:

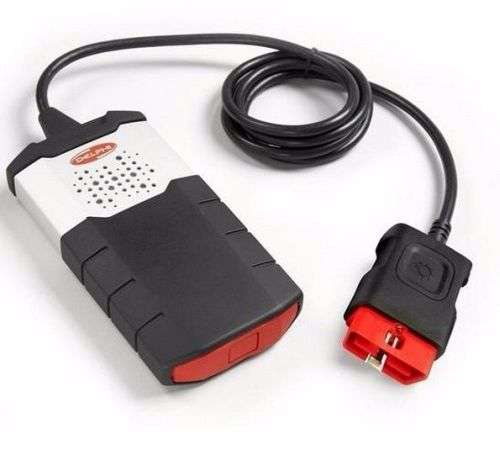

1. 1 X Delphi DS150e diagnostic main unit
2. 1 X DS150e 2015 Release 3 CD
3. 1 X USB cable
A:Manufacture specific serial diagnose
B:Scan function
C:EOBD/OBDII communication
D:Serial Systems
E:Engine
F:Ignition
G:Climate
H:ABS
I:Service reset
J:SRS
K:Immobilizer
L:Instrument
M:Comfort system
N:Gear-box etc
With CARS, you are able to perform brand specific diagnostics for cars and light vans from 1988 onwards. A total of 47 different brands. With TRUCKS software package, you are able to perform brand specific diagnostics for light and heavy commercial vehicles, buses and trailers from 1995 onwards.
A total of 37 different brands. The diagnostic program GENERIC is designed for the legislation based diagnostics, specially targeted for emission related fault codes. GENERIC is included in CARS and TRUCKS packages.
Multiplexer function, 2xHS CAN (ISO 11898-2), SW CAN (SAE J2411), K/L (ISO 9141-2), VPW (J1850), PWM (J1850), RS485 (J1708), TTL and (SPI, analog in, 5volt out).
FLIGHT RECORDER
With the flight recorder function, you can record parameters in real time while you are driving a vehicle. During recording, you can, with a press of a button, highlight the specific error so that you can investigate the detected error at a later time. TCS CDP+ is equipped with built-in memory thus removing the need to bring a computer. Memory cart not include in package .
MULTI COLOUR INDICATOR
With the multi colour indicator on TCS CDP+, you have full control of the diagnostic process. Different colors and sound communicates the status and the placement of the indicator allows you to see it from a far. For example, if the indicator alternates between blue and green the CDP+ is in communication with the vehicle control unit.
VOLTAGE CHECK
When TCS CDP+ is connected to the vehicle, the unit will check the battery voltage of the vehicle and automatically adjusts itself to the vehicle’s voltage level of 12 or 24 volts. If the voltage gets too high or too low, CDP+ will warn you with both sound and light and you will also be alerted through the battery icon in our diagnostic software.
CHASSIS NUMBER VIN
In our CARS software, we have a smart function that allows you to read out the chassis number from the vehicle that you would like to diagnose. This ensures that the right model and year is selected automatically. In addition, engine code for vehicles, which are commonly available on the markets, is also selected automatically.
ISS
Intelligent System Scan (ISS) scans through all the systems in the vehicle and displays the fault codes that are stored in each system. This saves time and you get a quick overview of the actual status of the entire vehicle. When the ISS is complete, you can then select a specific control system to analyse the results further on.
