High-Quality Sound Reproduction
• New High Resolution 32bit Floating Point DSP
• 96 kHz Processing Circuit
• 24 bit, 192 kHz Capability High Resolution D/A Conversion

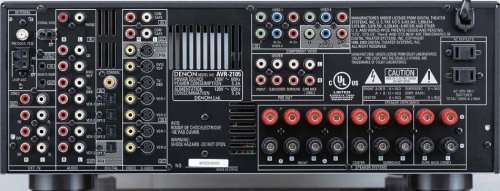

3 Sets of Component Video Inputs
The AVR-2105 is equipped with 3 sets of assignable, component video inputs and 1set of monitor outputs (all RCA terminals)
Fully Discrete, Equal Power 7 Amplifier Channels, 90 Watts Each
• Twin Drive Rectifier
DENON's Twin Drive Rectifier design uses two rectifying diodes in parallel to bring out the maximum potential of the large transformer. Since the rectifiers recharge the large block capacitors at low impedance, they are able to supply ample current to reproduce deep basses as well as sudden bursts of sound from percussion or other musical instruments.
• Large Aluminum Extruded Heatsink
DENON uses a large heatsink made of extruded alu- minum. It is placed in a design that ensures mostly uni- form temperatures throughout the heatsink. This will ensures that all channels respond with equal perfor- mance to the demands of the audio signals.
Dual-Channel Surround Back Power Amp for 7.1 Surround
The AVR-2105 is equipped with a total of 7 power amps including 2 for the Surround Back channel speaker to give you more clearly defined sound localization at the rear for 6.1-channel surround sources such as DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, Dolby Digital EX, and DTS-ES NEO:6.
Wide-Range Play Capability for DVD-Audio and Super Audio CD The power amp circuits of the AVR-2105 have been meticulously designed to reproduce the exceptionally high sound quality with wide frequency response from 10 Hz to 100 kHz.
Cinema Equalizer
The sound from movie sources recorded in Dolby Digital, DTS or other formats emphasizes high-frequency range due to a theater’s front speakers being placed behind the movie screen. If this sound is reproduced in the home theater without correction, the high-frequency range is too strong. The AVR-2105 features a Cinema Equalizer to correct these high-frequency components so that the sound is clearer and easier to listen to. (For Dolby Digital, Dolby Pro Logic IIx,
Dolby Digital EX and DTS surround modes)
On Screen Display
The AVR-2105 lets you make system settings via diaplays on your TV screen from the comfort of your chair.
Front
Center
Surround
Surround Back
For optimum Dolby Digital and dts reproduction, the AVR-2105 features high quality, wideband audio amplification, providing 90 watts power output for each of the 7 main channels. A large capacity power supply includes a high current power transformer along with discrete power output devices on all 7 amplifier channels for highest dynamic range and superb reproduction clarity.
90W+90W (8ohms,20Hz-20kHz,0.08%THD) 90W (8ohms,20Hz-20kHz,0.08%THD) 90W+90W (8ohms,20Hz-20kHz,0.08%THD) 90W+90W (8ohms,20Hz-20kHz,0.08%THD)
DENON's Basic Design for High-Quality Sound Reproduction • Power Transformer for High Power Driven
The chassis that supports the large transformer has been designed to absorb vibration, and the transformer is housed inside a highly rigid frame to secure it more solidly to the chassis. In addition, a cushioning material has been placed around the core of the transformer to minimize interference on the signal and enable more faithful reproduction of the original sound.
The AVR-2105 inherits these low-noise design from higher-end models not to mention the use of short ring.

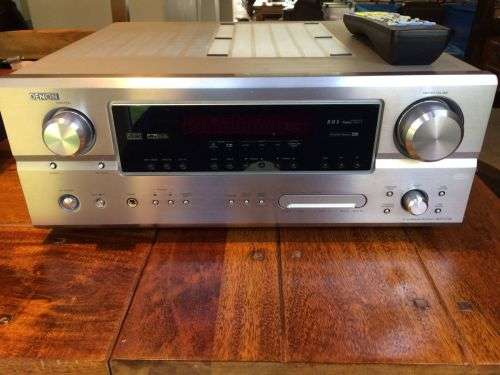

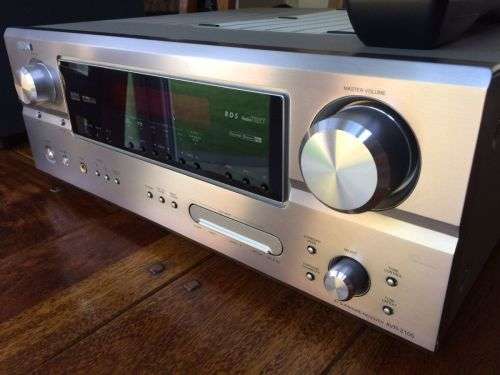

In very good condition and 100% working order.

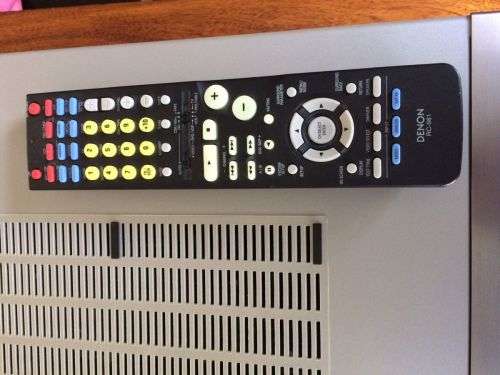

Has Original remote .
