Description
Touchscreen Interface

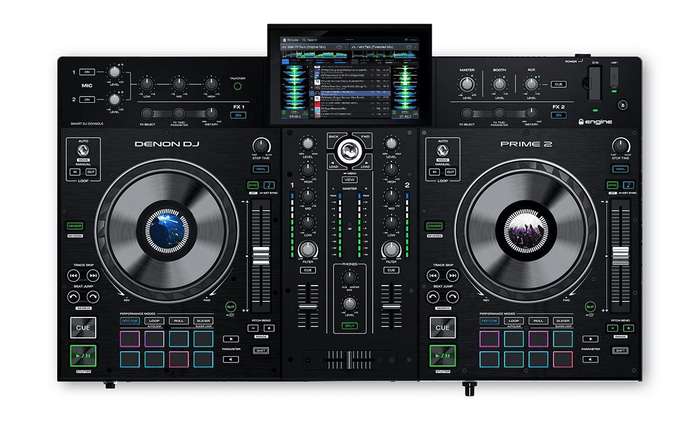

PRIME 2's, 7 multitouch, multi-gesture display gives DJs fingertip control of music library navigation, search and track load. Large, color waveforms and essential DJ workflow information is shown as well as access to PRIME 2 preferences and performance customization
Standalone Digital Media + Streaming
Multiple (USB/SD) media sources and a built-in SATA drive bay give DJs unlimited music access plus onboard recording. PRIME 2 is also enabled for WiFi internet connectivity, enabling streaming playback of Beatport, SoundCloud and TIDAL
Expressive Workflow and Control
Powered by Engine OS software, PRIME 2 is the DJ's essential Pro/Mobile workhorse. Comprehensive performance control is ensured via capacitive touch jog wheels (with color displays), powerful EQ, FX and audio manipulation
Jog Wheels with Color Display 6 Capacitive-touch jog-wheels with HD display for loop info, track artwork & custom logo.
Multifunction Performance Pads 8 ultra-responsive trigger pads for hotcue juggling, looping techniques, beat rolls and slicer.
Dual Mics + Flexible Monitoring No sacrifice of line faders with 2 independent mic channels plus multi-option headphone monitoring.
Powerful Mix & Audio Control Pristine 24bit/48k audio quality with 2-channel mixer, 3-band EQ and filter controls. Timestretch and Key Shift functions add more creativity into the mix.
STAGELINQ: Event Pro DJ Lighting and Video Control — Soundswitch and Resolume Video
TECHNICAL SPECIFICATIONS
Audio
- Frequency Response: 20 Hz — 20 kHz (+- 1 dB)
- Dynamic Range: > 112 dB (A-weighted)
- Signal-to-Noise Ratio: > 92 dB (A-weighted)
- Channel Separation: < -85 dB (1 kHz, unity)
- Headroom:
- Aux/Line: > 15 dB
- Mic Input: > 20 dB
- Outputs: > 20 dB
- T.H.D.
- Aux/Line: < 0.01% (1 kHz, unity)
- Microphone: < 0.02% (1 kHz, unity)
- Analog Input
- Aux/Line:
- +15 dBV (maximum)
- 0 dBV (unity)
- Microphone:
- -40 dBu (unity)
- -60 dBu (minimum)
Analog Output
Master, Balanced:
+24 dBu (maximum)
+4 dBu (unity)
Master, Unbalanced:
+20 dBu (maximum)
0 dBu (unity)
Booth:
+24 dBu (maximum)
+4 dBu (unity)
Headphone Output: < 150 mW @ 40 Ohms
Connections
(2) XLR outputs (master left/right, balanced)
(1) RCA output pair (master left/right, unbalanced)
(2) XLR outputs (booth left/right, balanced)
(1) 1/4 (6.35mm) stereo output (headphones)
(1) 1/8 (3.5mm) stereo output (headphones)
(1) RCA input pair (line-level, unbalanced)
(2) XLR + 1/4 (6.35mm) inputs
(3) USB ports (for USB drives. Port 3 with 5V, 1A)
(1) USB port (to computer)
(1) SD card slot
(1) Ethernet port
(1) IEC power cable input
(1) 2.5 SATA HD bay
