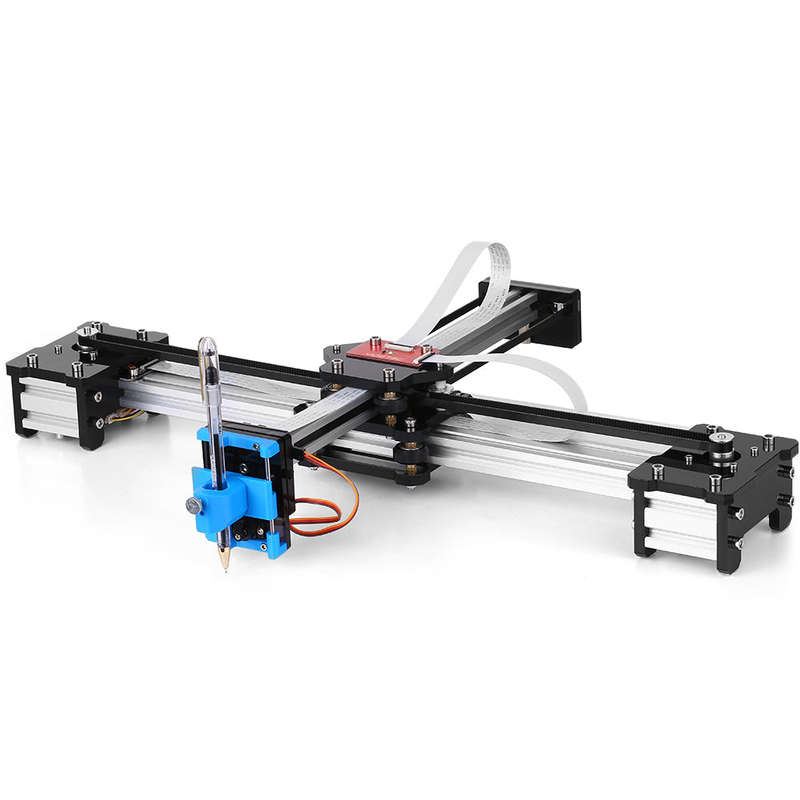

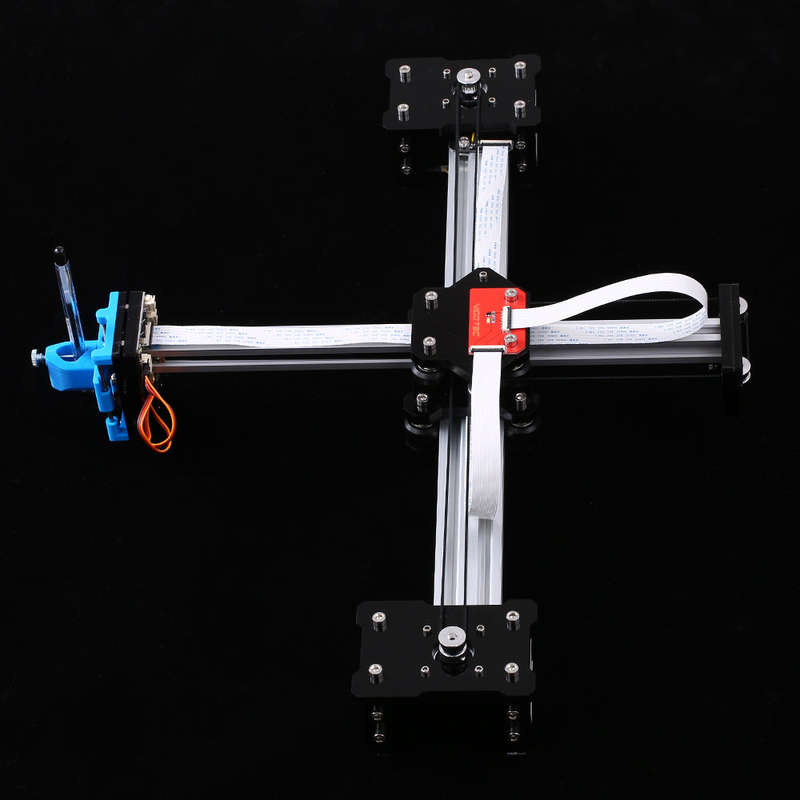

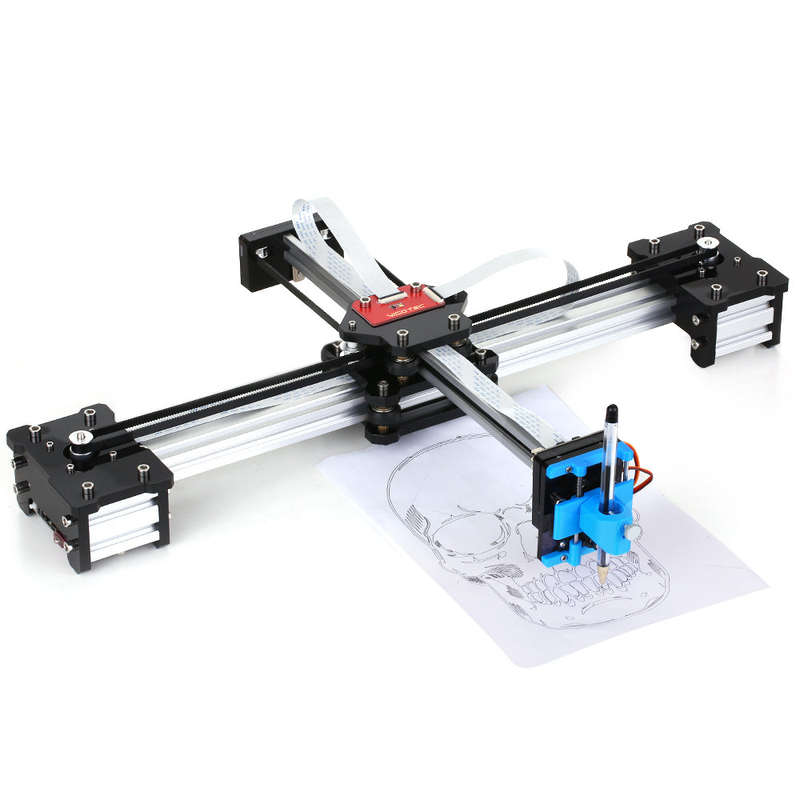

This VG-X4 is an extremely versatile machine, designed to serve a wide variety of everyday and specialized drawing and writing needs. You canￂﾠuse it for almost any task that might normally be carried out with a handheld ball-point pen or pencil. It allows you to use your computer to produce writing that appears to be handmade, complete with the unmistakable appearance of using a realￂﾠball-point pen or pencil (as opposed to an inkjet or laser printer) to address an envelope or sign your name. And it does so with precisionￂﾠapproaching that of a skilled artist, and ￢ﾀﾔ just as importantly ￢ﾀﾔ using an arm that never gets tired.
Features:
Desktop DIY plotter is simple and modern pen plotter, capable of writing or drawing on almost any flat surface.
Support Win7 and above software system, support Chinese and English bilingual operation interface.
310 * 256mm large drawing space, easy to operate.
Can draw any pictures easily and can be directly read in JPG, BMP, DXF, Gcode carving file.
Aluminum alloy and acrylic body with fine workmanship show excellence in quality.
Interesting to install and use, perfect gift for drawing DIY enthusiasts.
According to the form of the ball-point pen or pencil, provide the outline of the font, fill it, and draw the black back or grayscale image inￂﾠthe simulation of dot or curve mode.
NOTE: DIY Kit, Need To Assemble By Yourself. (Installation link: http://www.vigotec.cn)
Specifications:
Material: Aluminum Alloy + Acrylicￂﾠ
Main Color: Silver
Power Supply: AC 100-240V Output 12V 1A
Plug Type: US / EU / UK (Optional)ￂﾠ
Supported OS: Win 7 and above
Controller Board: VigoTec
Communication Port: Micro USB
Stepper Motor: 26mm thick 42SHD0503, Step Distance Angle 1.8
Supported Software: Drawing machine software uses VigoWriter, Support GRBL, benbox, elekscam, if you have firmware you can use.
Supported Formats: jpg / bmp / DXF / G-code
Image Size: No Limitation
Engrave Mode: Image Engraving, Text Carving, Scanning Carving, Contour Carving, Pixel Carving, Grayscale, Black White
Continuous Work Time: Sustainable Workingￂﾠￂﾠ
Working Voltage: DC 12V
Working Current: DC 1A
Engraving Accuracy: 0.05mm
Effective Working Area: 310 * 256mm / 15.6 * 11.2inￂﾠￂﾠ
Item Size: 570 * 436 * 88mm / 22.4 * 17.2 * 3.5in
Item Weight: 2.4kg / 5.29 lb
Package Size: 50.5 * 40.5 * 10.5cm / 19.9 * 15.9 * 4.1in
Package Weight: 3119g / 6.88 lb
Package List: (DIY Kit, Need To Assemble By Yourself.)
VG-X4 Writing Machine Kits:
1 * F1 430mm Aluminum Profileￂﾠ ￂﾠ
1 * F2 360mm Aluminum Profileￂﾠ ￂﾠ
4 * F3 50mm Aluminum Profileￂﾠ ￂﾠ
1 * P1 Acrylic Central Plate A (TopﾼﾌThickness 8mm)ￂﾠￂﾠ
1 * P2 Acrylic Central Plate B (MiddleﾼﾌThickness 8mm)ￂﾠￂﾠ
1 * P3 Acrylic Central Plate C (BottomﾼﾌThickness 8mm)ￂﾠￂﾠ
2 * P4 Acrylic Motor Plate (Thickness 8mm)ￂﾠￂﾠ
2 * P5L, P5R Acrylic Leg AﾼﾈInsideﾼﾌThickness 8mm)ￂﾠ ￂﾠ
2 * P6 Acrylic Leg BﾼﾈOutsideﾼﾌThickness 5mm)ￂﾠ ￂﾠ
1 * P7 Acrylic Rear Plate A (Thickness 8m)ￂﾠￂﾠ
1 * P8 Acrylic Rear Plate B (Thickness 5mm)ￂﾠ ￂﾠ
1 * P9 Acrylic Front Plate (Thickness 8mm)ￂﾠ ￂﾠ
8 * W1 Flat Pulleyￂﾠ ￂﾠ
2 * M1 Stepper Motorￂﾠ ￂﾠ
2 * Set M2 Synchronous Pulley and Set Screwￂﾠￂﾠ
4 * W2 Driven Pulleyￂﾠ ￂﾠ
8 * S1 Inner Hexagon Screw (M5ￃﾗ45ﾼﾌFastening the acrylic central plate and flat pulley)ￂﾠ
9 * S2 Inner Hexagon Screw (M5ￃﾗ20ﾼﾌFastening the acrylic leg plate, front plate, rear plate and pen control kit/Laser kit)
25 * S3 Inner hexagon Screw (M5ￃﾗ12ﾼﾌFastening the acrylic motor, leg and front plate)
8 * N1 Antiskid Nut (M5ﾼﾌFastening the acrylic central plate and flat pulley)ￂﾠ ￂﾠ
13 * N2 Square Nut (M5ﾼﾌFastening the acrylic motor plate and synchronous belt)ￂﾠ
2 * N3 L Type Connector (M5 NutﾼﾌFastening the acrylic front and rear plate)ￂﾠ
1 * Parts Box
1 * Protective Glasses
1 * Power Adapter
1 * Hardware Installation Manualￂﾠ
