Features:

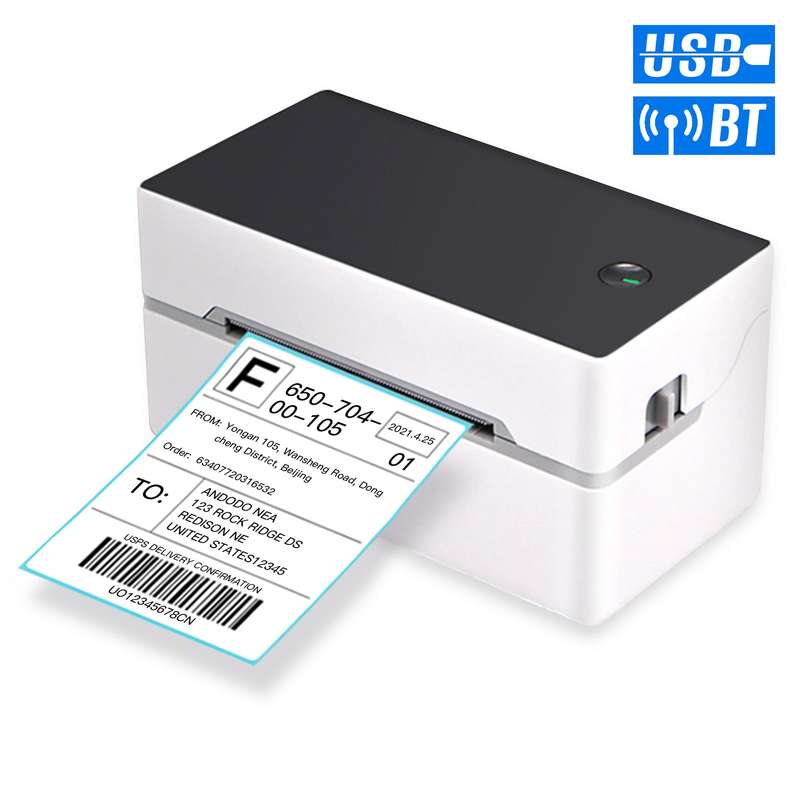

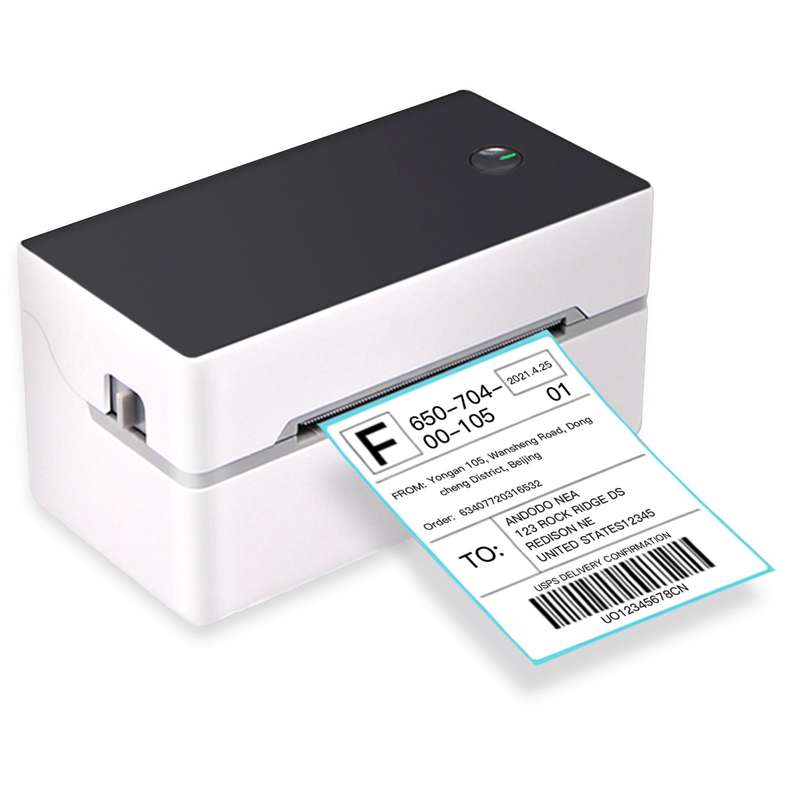

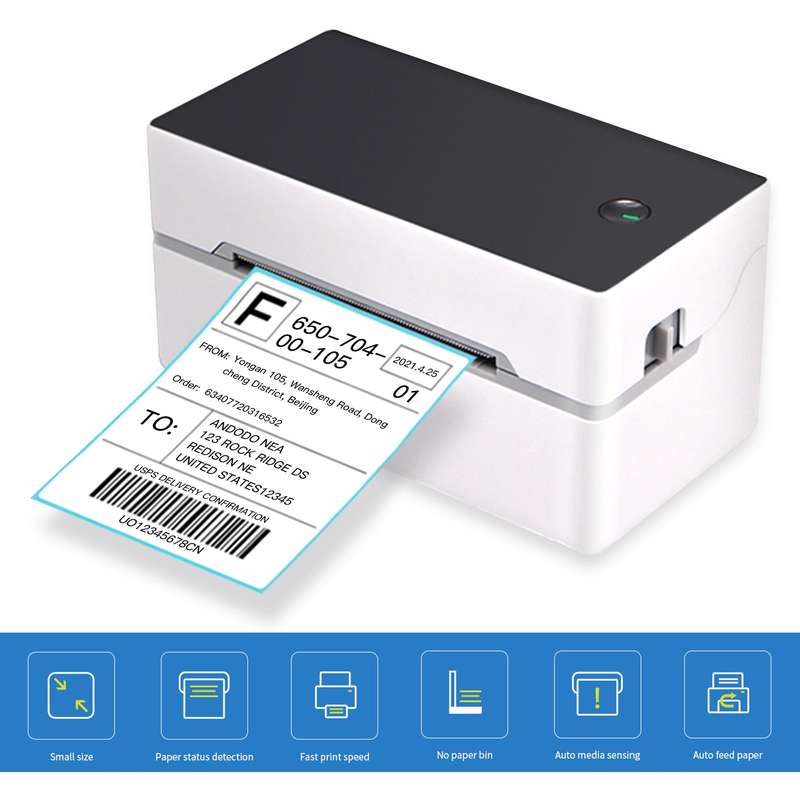

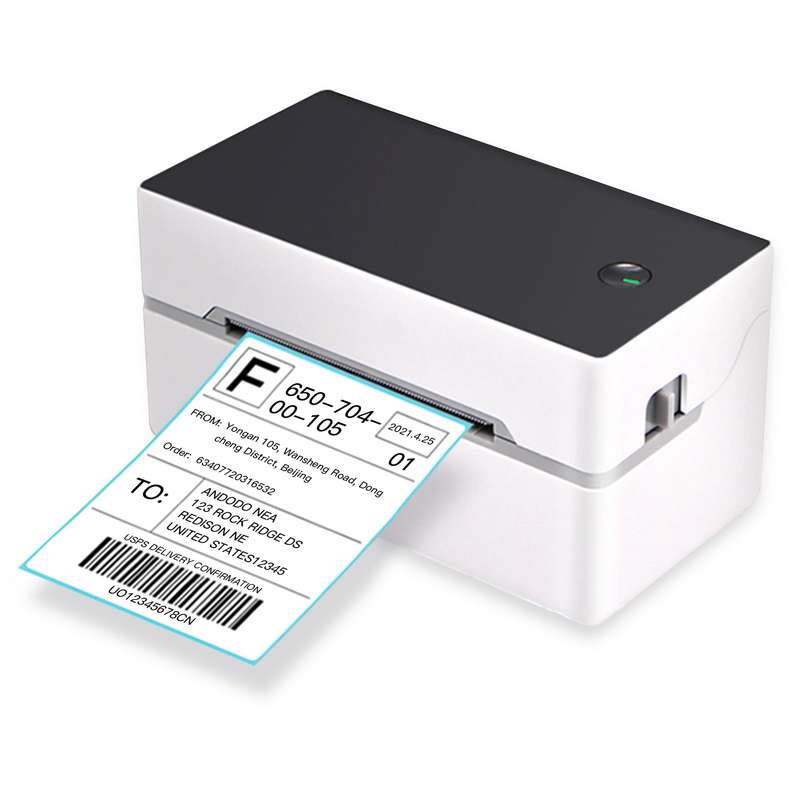

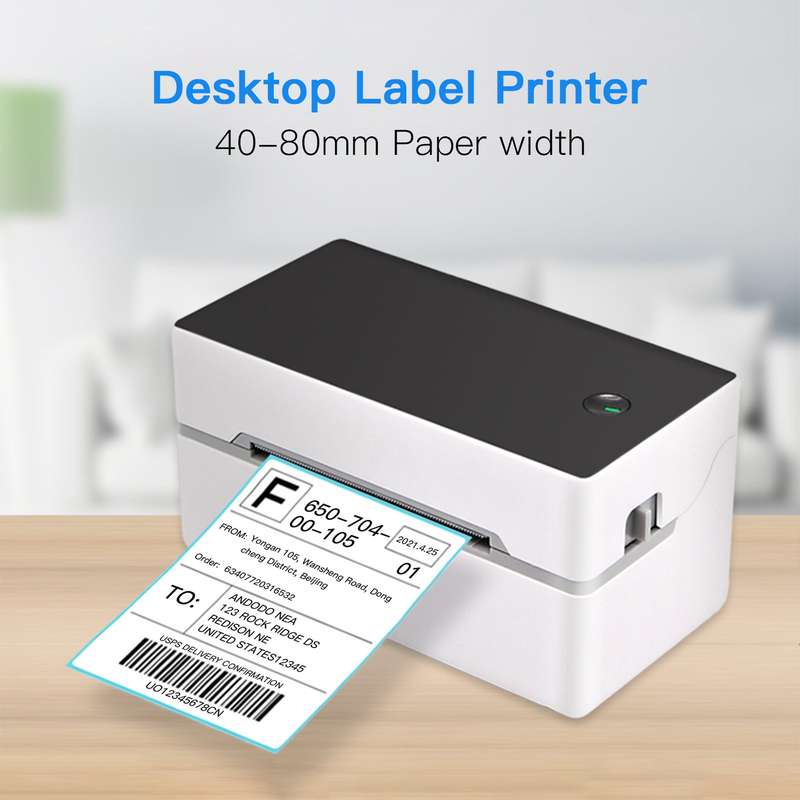

TDL402 desktop thermal label printer, support BT and USB cable connection, compatible with Win2003/WinXP/Win7/WIN8/WIN10/MAC/iOS/Android system. Please download relative software and driver on your devices.
Support printing thermal receipt paper, label paper, fanfold label paper. The printer can print paper width 40-80mm. Support auto feed paper.
No paper bin design, the printing paper is placed outside the printer. No ink cartridge or ribbon required, low operation cost, thermal label paper is easy to buy.
High quality print head, 203DPI resolution, clear printing quality and reliable performance, high speed printing, saving time, the speed can reach max. 150mm/s.
Widely used in warehouse industry, supermarket, retail store, restaurant, clothing, post package industry, medical industry, home, office. Suitable for printing price tag, product labeling, shipping labels, warehouse labels, mail delivery label, instruction label, drug labeling, etc.
Specifications:
Model: TDL402
Interface Type: BT+USB/USB(optional)
Plug: US/EU/UK/AU(optional)
Input: 100-240V 50/60Hzￂﾠ 1.5A
Output: 24V = 2.5A
Print Type: Line Thermal Printing
Print Speed: 150mm/s
Paper Width: 40-80mm
Effective Resolution: 203dpi
Paper Thickness: 0.058-0.17mm
Thermal Paper Types: Roll label, fan-fold label, sticker paper.
System Compatibility(optional):
-BT+USB: Compatible with WinXP/Win2003/Win7/WIN8/WIN10/MAC/iOS/Android System
-USB: Compatible with WinXP/Win2003/Win7/WIN8/WIN10/MAC System
Character Size: ASCII Font A:12*24 ASCII Font B: 9*17 Chinese24*24
ASCII Character: 12*24dotﾼﾌ1.25ﾼﾈwideﾼﾉ*3.00ﾼﾈhighﾼﾉmm
Gb-1,Gb-2 Chinese Character Database: 24*24dot, 3.00 (wideﾼﾉ*3.00 (highﾼﾉmm
Barcode Type:
1D: Code 39,39C,I25,Code 93,ITF25,EAN128,Code 128,Codabar,EAN -8,EAN8 +2,EAN8+ 5,EAN -13,EAN13+ 2,EAN13 +5,UPC-A,UPCA+2,UPCA+5,UPC-E,UPCE +2,UPCE+5M SIC,ITF14,EAN14,CODE11,POST
2D: QRCODE,PDF41 7(optionalﾼﾉ
Extended Character: PC437,Katakana,PC850,PC86 0,PC863,PC865,WPC1252,PC866,PC852,PC858 and other 10 international languages
Working Temperature: 0~50￢ﾄﾃ, Working Humidity: 20~85%
Storage Temperature: -20~ 70￢ﾄﾃ, Storage Humidity: 5~95%
Item Size: 15.3 * 8.0 * 8.1cm / 6.0 * 3.1 * 3.2in
Item Weight: 523g / 18.4oz
Package Size: 18.0 * 15.0 * 10.3cm / 7.1 * 5.9 * 4.1in
Package Weight: 985g / 34.7oz
Notes:
Thermal paper are not included.
The PC driver download link: http://www.chinayoko.com/index.php?m=Download&a=show&id=381&l=en
Packing List:
1 * Printer
1 * Power Adapter
1 * Power Cord
1 * USB Cable
1 * User Manual(English)
