Deutsch DTM Series connectors are ideal for automotive and other harsh environment signal connector applications. They are often used in engine compartments and sensor wiring. The DTM series features a smaller contact and enhanced design in comparison to the DT series connector.

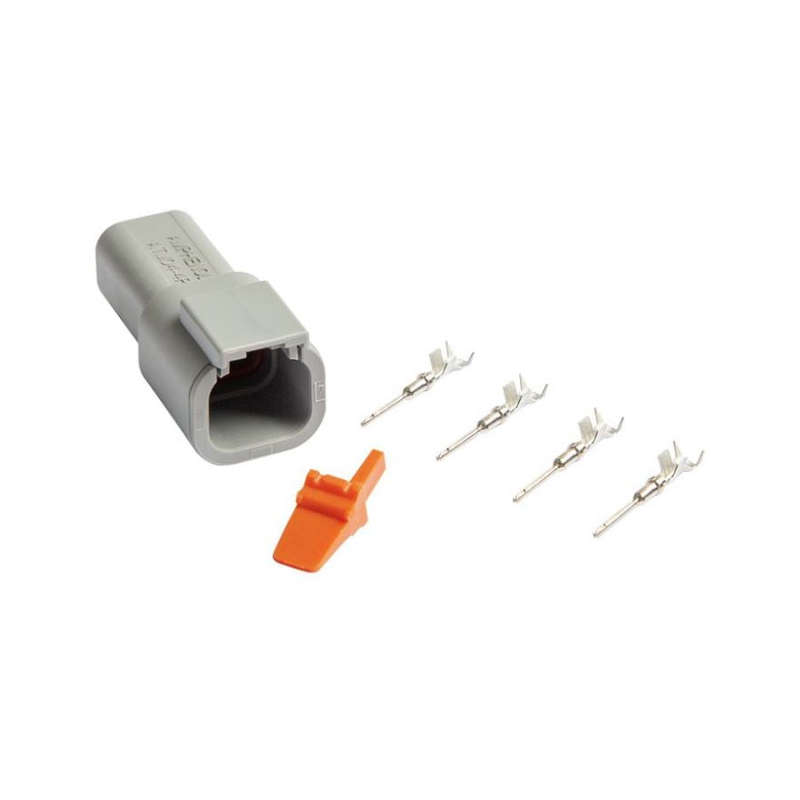

The DTM plug comes in a pack with pins, stoppers and seals included.
Technical Specification:
• Friction lock connector mating
• Rugged thermoplastic connector housing
• Hand insertable/removable contacts
• Dielectric withstand voltage 1500 V ac
• Positive contact retention
• Front and rear seals provide water tight sealing.
• Waterproof up to 1m deep
Type | Receptacle Housing |
Number of Contacts | 4 |
Gender | Female |
Number of Rows | 2 |
Series | DTM |
Colour | Grey |
IP Rating | IP68 |
Height | 26.62mm |
Width | 26.92mm |
Depth | 47.27mm |
Maximum Operating Temperature | +125°C |
Minimum Operating Temperature | -55°C |
