Deutsch DTM Series connectors are ideal for automotive and other harsh environment signal connector applications. They are often used in engine compartments and sensor wiring. The DTM series features a smaller contact and enhanced design in comparison to the DT series connector.

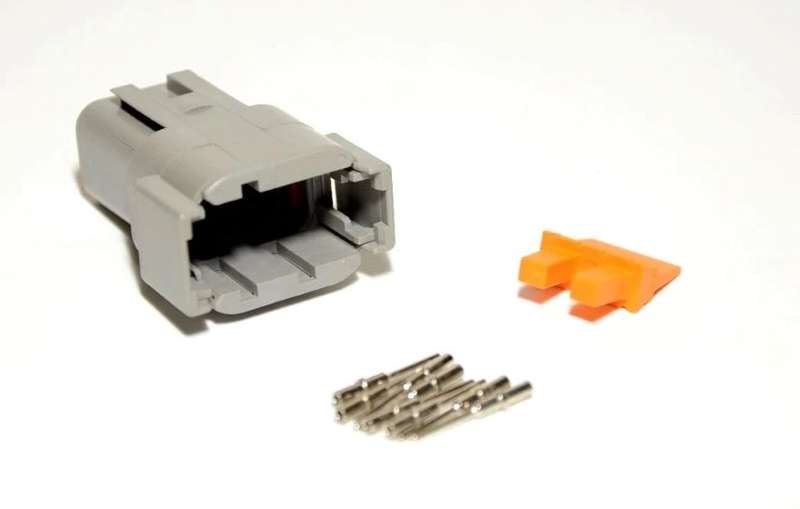

The DTM plug comes in a pack with pins, stoppers and seals included.
Technical Specification:
• Friction lock connector mating
• Rugged thermoplastic connector housing
• Hand insertable/removable contacts
• Dielectric withstand voltage 1500 V ac
• Positive contact retention
• Front and rear seals provide water tight sealing.
• Waterproof up to 1m deep
| Number of Contacts | 8 |
| Type | Automotive Connector |
| Gender | Female |
| Number of Rows | 2 |
| Current Rating | 7.5A |
| Series | DTM |
| Colour | Grey |
| Termination Method | Crimp |
| Height | 20.22mm |
| Width | 31.62mm |
| Housing Material | Thermoplastic |
| Depth | 43.69mm |
| Contact Plating | Nickel |
| Maximum Operating Temperature | +125C |
| Minimum Operating Temperature | -55C |
| Contact Material | Copper Alloy |
