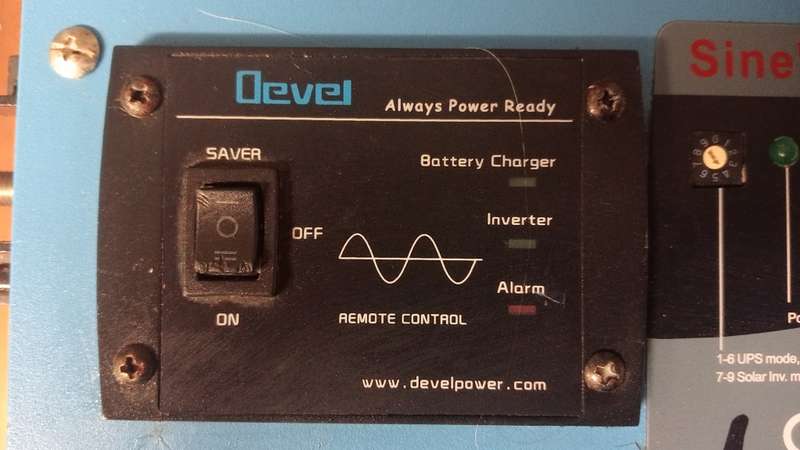

Pure sine wave output, input & output fully isolated - Built-in AC charger with 4-stage charge mode. Up to 75A - High efficiency design up to 88%, energy saving mode - Excellent loads with 3 x-rated start power - Built-in-LCD display, show date of working - Built-in AC bypass relay. UPS function - Advanced microprocessor control - Input polarity/UVP/OVP/OSP/OLP/OYP - Remote control RJ11 Specifications: - Models: LPPT-6000 - Output Power: 6000W - Surge Power: 18000W - DC Input Voltage: 48V DC - Output Voltage: 220/230/240V AC 10% - Output Frequency: 50/60HZ 0.5% - Output Wavefoam: True sine wave (THD < 5%) - Power Factor: 0.1-1 - Efficiency: 88% - No Load Power: < 10W (Power saving model) - Transfer Time: < 8ms - AC Range: 90-135VAC/190-245VAC - Voltage Range: 42.0-62.0VDC - Charger Current: 50A - Fault indication: LED Red - Remote Control: RJ11 - Safety: LVD (EN60950) - EMC: CE (EN55022: 2006+A1: 2007) - Operating Temp:-20-50 Degrees Celsius - Working Humidity: 20-90% RH - Storage Temp: -30 - 70 Degrees Celsius - Cooling: Automatically controlled cooling fan - Weight: 45kg - Dimensions: 600mm x 218mm x 180mm - Application: Vehicle, Yacht, Solar Power System, Portable equipments, Power tools, Home and office appliances.
