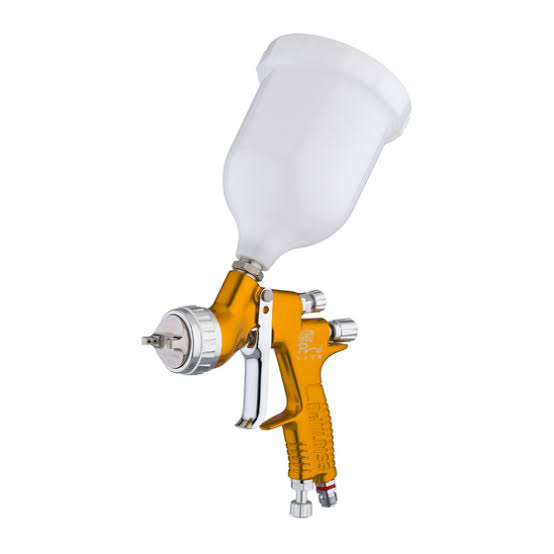

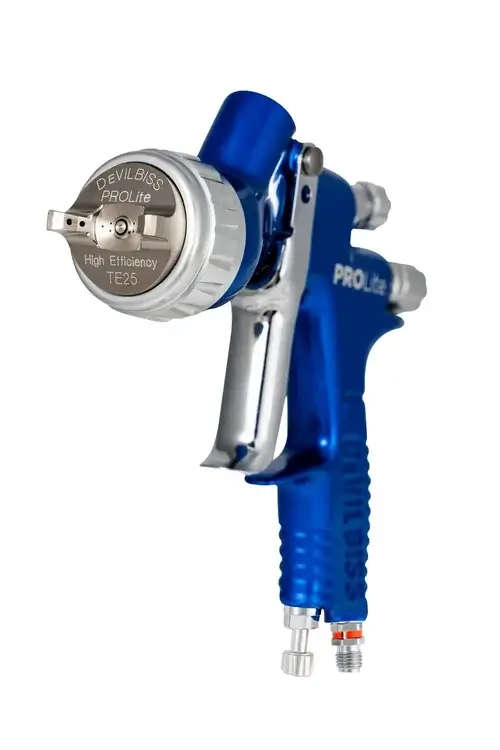

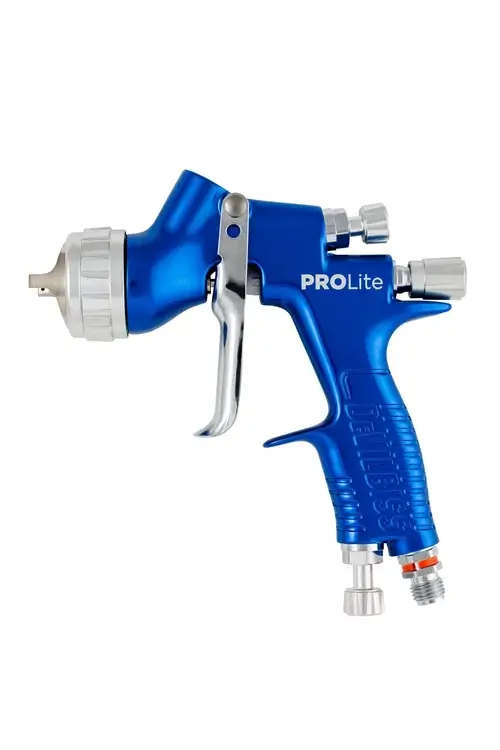

DeVilbiss PROLite Spray Gun (GTi ProLite)

The DeVilbiss GTi PRO Lite is precision built using the highest quality materials and component parts for a guaranteed, reliable, long and durable working life in all industrial markets.

A drop forged aluminium body with tough anodized external finish. High grade stainless steel fluid tips, needles and nickel plated hard brass air caps all contribute to a gun that can last in the extreme environment of the spray shop. When routine maintenance is needed then the simple design and easy to maintain format ensures minimum down time and interrupted production.

• Enhanced ergonomics combined with DeVilbiss' legendary fit and feel ensure incredible performance, handling and balance.
• Comprehensive range of Conventional, HVLP and Trans Tech (Compliant) Air Caps for choice of Transfer Efficiency, Atomisation power and Application requirements.
• Extensive range of stainless steel, hardened and tungsten carbide fluid tips and needles for all types of industrial applications.
• Coaxial trigger air valve design for lighter trigger pull and improved air flow.
• Drop forged aluminium gun body and removable air baffle for a longer working life.
• Fully Environmental Legislation Compliant with high transfer efficiency resulting in significant paint savings.
• Air adjuster valve provides instant "on gun" pressure adjustment for the sprayer.
• Fully ATEX certified and authorized for use in the EU community.

DeVilbiss expertise and performance unequaled at work... The DeVilbiss GTi PRO Lite spray gun family ensures there's a spray gun to suit all types of industrial spray finishing application.

Air Cap TE10 base coat & all-rounder

Application:

• Standard water and solvent base coats.
• Air dry and MS clear coats.

Performance Data:

• Spray Pattern: 290-310 mm [11-12 in].
• Air Flow (@ 2bar): 280 lpm [9.9 cfm].

Misc.:

• Slower than TE20.

Air Cap TE20  clear coat with faster flow

Application:

• Clear coats (especially HS and UHS clear coats).
• Recommended for polyurethane clear coats (in combination with 1.3mm nozzle).

Performance:

• Spray Pattern: 285-300 mm [11-12 in].
• Air Flow (@ 2bar): 350 lpm [12.4 cfm].

Misc.:

• Faster than TE10.
• In connection with 1.3 mm nozzle widely recommended for 2K gloss / clear coat.
