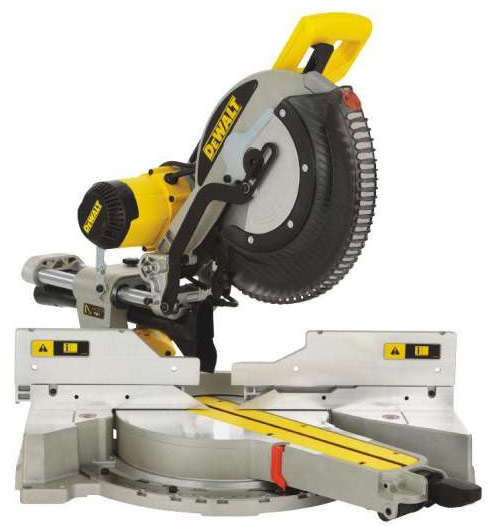

DeWalt DWS780-QS 305mm Compound Slide Mitre Saw - DEWALT_DWS780-GB

DeWalt DWS780-QS 305mm Double Bevel Sliding Mitre Saw 1675W

Features:-

Outstanding cutting performance in both small profiles and large construction timbers up to 110 x 303 mm

XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required

Heavy duty durability with the ability to fully adjust your machine to maintain accuracy over the life fo the tool.

New quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49º left and right

Easy to use mitre and bevel controls making the tool fast and simple to change from one set up to another

Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0º - 50º left and 0º - 60º right

Long life Accuracy in Table and Fence Design

The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles

Linear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 345 mm wide

Compact and lightweight design characteristics deliver a saw with enormous capacity which is easy to transport around the jobsite

Outstanding dust control and deflection away from cutting area

Electronic speed control for adjusting cutting speed when cutting materials other than wood

The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications.

Comes with:

High Quality 60 tooth blade

Blade spanner- Dust bag- Material Clamp

Specifications:

Power Input: 1675 Watts

Power Output: 960 Watts

Blade Speed: 1900 - 3800 rpm

Blade Diameter: 305mm

Blade Bore: 30mm

Bevel Capacity: 49/49°

Mitre Capacity right: 60°Mitre Capacity left: 50°

Cutting Capacity at 90°/90°: 303 x 110 mm

Cutting Capacity at 45°/90°: 268 x 63 mm

Cutting Capacity at 90°/45°: 211 x 112 mm

Max Capacity 45°/45°: 212 x 76 mm

Depth: 470mm

Length: 770mm

Height: 396mm
