This item is sold brand new. It is ordered on demand from our supplier and is usually dispatched within 7 - 11 working days

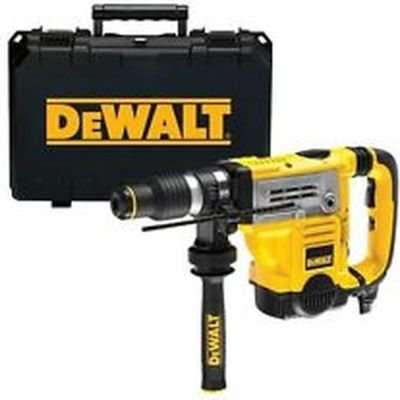

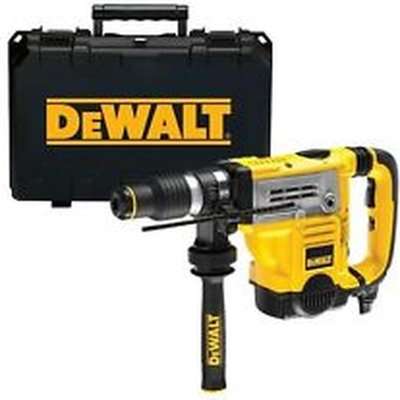

Ideal for drilling anchor fixing and through holes in concrete and masonry from 12 to 45 mm in diameter. Core drilling up to 100 mm
Chain drive improves durability and increases efficiency together with an oil filled gearbox to ensure total component lubrication and superior heat dissipation
Ergonomic, compact and slim line design maximises control and offers easy access to confined spaces
Active Vibration Control system incorporating a floating rear handle and damped side handle to reduce vibration
Rotationstop for mediumlight demolition applications
Unique dust sealing protection to prevent even the finest dust ingress into the hammer mechanism delivering high durability and extended tool life
Hammer mechanism is optimised by reducing the number of components and by improving dampening to deliver maximum impact energy and therefore the efficiency to drill into the hardest concrete
Efficient mechanism delivers impact blows directly to the bit without losses through excessive vibration and rebound dampening reduces stress to the tool
Soft rubber grip handles improve user comfort lowering fatigue during extended use
Electronic variable impact energy/speed for total control with smaller bits and light material
Lockon switch for greater control when in chipping mode
Electronic service and brush wear indicator identifies when brushes need replacing and product should be serviced
Excellent power to weight ratio: 12 Joules of impact energy delivered by a 6 kg hammer
Magnesium housing for lower weight and excellent durability
- Power Input: 1250 Watts
- Power Output: 615 Watts
- Load Speed: 210415 rpm
- Blows per Minute: 14302840 bpm
- Impact Energy: 12 J
- Tool Holder: SDSMax Morse Taper
- Max. Drilling Capacity [Concrete]: 45 mm
- Max. Drilling Capacity [Breakthrough bit]: 65 mm
- Max. Drilling Capacity [Core bit]: 100 mm
- Weight: 6.8 kg
- Length: 477 mm
- Hand/Arm Vibration: 9.2 m/s2
- Uncertainty K 1 (Vibration): 1.5 m/s²
- Hand/Arm Vibration Chisel: 7.2 m/s²
- Uncertainty K 2 (Vibration): 1.5 m/s²
- Sound Pressure: 92 dB(A)
- Uncertainty K 1 (Sound): 3 dB(A)
- Accoustic Pressure: 103 dB(A)
- Uncertainty K 2 (Sound): 3 dB(A)
- Impact energy (EPTA 05/2009): 8 J
Features
| Summary | Ideal for drilling anchor fixing and through holes in concrete and masonry from 12 to 45 mm in diameter. Core drilling up to 100 mm Chain drive improves durability and increases efficiency together with an oil filled gearbox to ensure total component lubrication and superior heat dissipation Ergonomic... |
| Colour | Yellow and Black |
