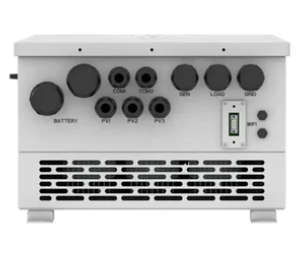

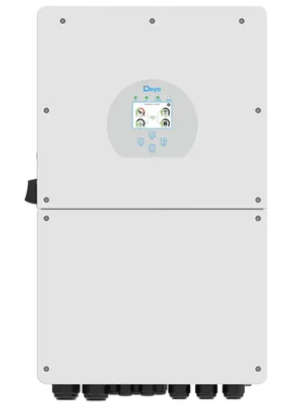

The Deye 12kW single phase hybrid inverter is a powerful device designed for large residential and small commercial solar systems. It combines solar power generation, battery storage, and grid connectivity, supporting both on-grid and off-grid applications. This inverter allows for efficient energy management, storing excess solar energy in batteries and ensuring a reliable power supply even during outages. With features like remote monitoring, high efficiency, and smart energy management, the Deye 12kW hybrid inverter optimizes solar energy use and enhances energy independence.
Description
General Data
Colorful touch LCD with IP65 Protection Degree
AC Couple to retrofit existing Solar System
Maximum 16 Units Parallel for On-Grid and Off-Grid operation
Supports Multiple Batteries in Parallel
Maximum Charging / Discharging Current of 290A
6 Time Periods for Battery Charging / Discharging
Support for storing Energy from Diesel Generator
Self-Consumption and Feed-In to Grid
Auto Restart while AC is recovering
Programmable Supply-Priority for Battery or Grid
Programmable multiple operation modes: On-Grid, Off-Grid and UPS
Configurable Battery Charging: Current / Voltage based on applications by LCD Setting
Configurable AC / Solar / Generator Charger priority by LCD Setting
Compatible with Mains Voltage or Generator Power
Overload / Over Temperature / Short Circuit protection
Smart Battery Charger design for optimized Battery performance
Limit Function to prevent excess power overflow to the Grid
Supports WIFI monitoring and 2 Strings of each MPPT
Smart settable three stages MPPT Charging for optimized Battery performance
Time-Of-Use Function
Smart-Load Function
GRID/AC OUTPUT:
Grid Type: Single Phase
Protection Degree: IP65
Maximum Charge/Discharge Current: 240A
Charging Strategy for Lithium Ion Battery: Self-adaption to BMS
AC Output & UPS Power: 12000W
Maximum AC Output Power: 13200W
AC Output Rated Current: 54.5/52.2
Maximum AC Current: 60/57.4
Maximum Efficiency: 97.60%
PV INPUT:
Maximum DC Input Power: 19200W
Max. PV Input Voltage: 500V
Rated PV Input Voltage: 370V
3/2 x MPPT
Start-up Voltage: 125V
PV Input Current: 26A + 26A + 26A
BATTERY:
Battery Type: Lead-acid or Lithium-ion (Not Included Sold Separately)
Battery Voltage Range: 40-60V
Communication with BMS: CAN/RS485
Weight 52 kg
Dimensions 76.3 × 46.4 × 28.2 cm
