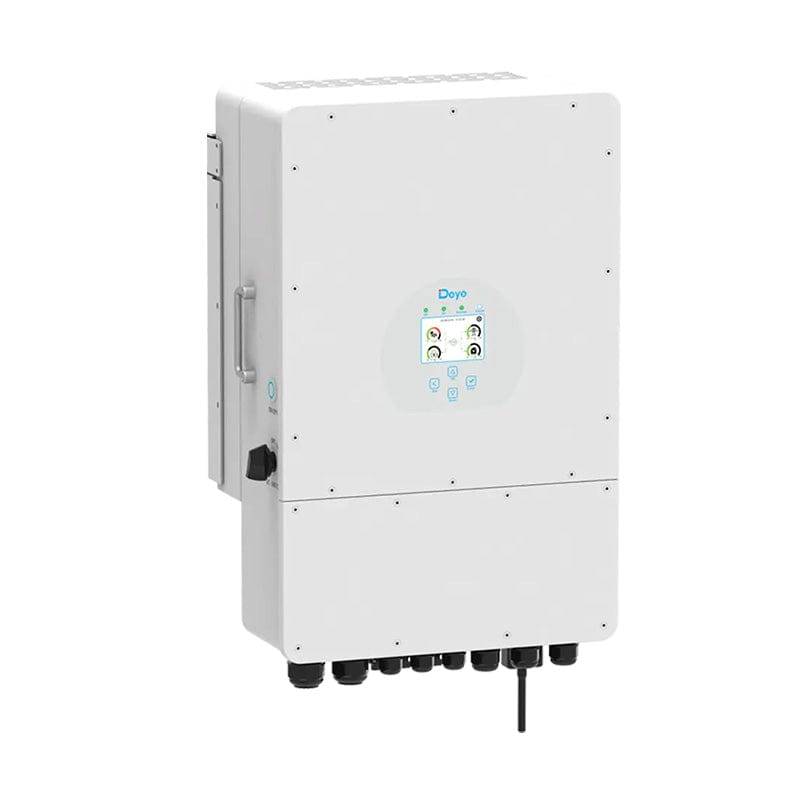

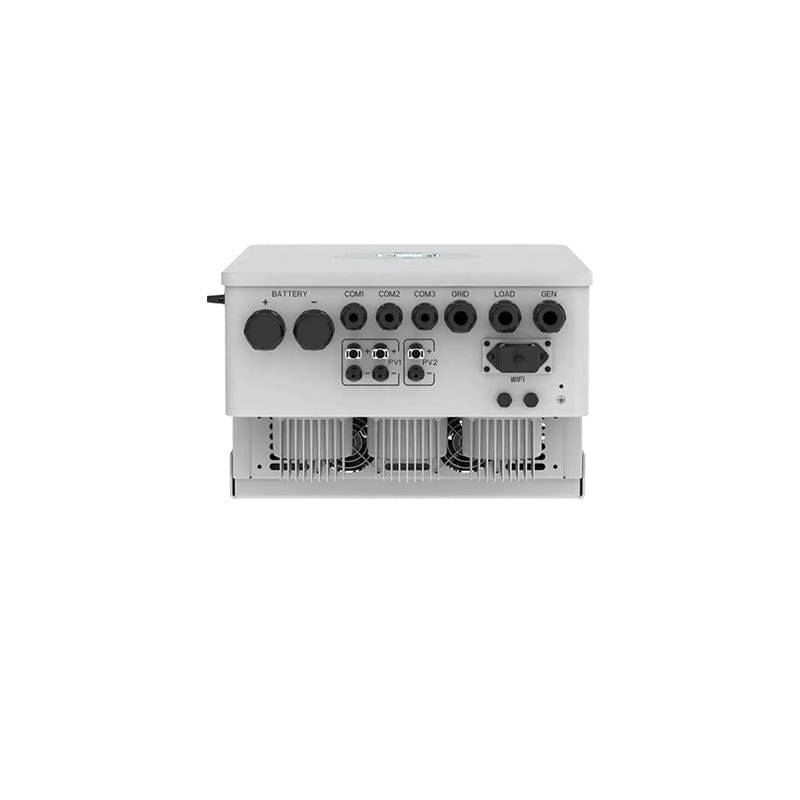

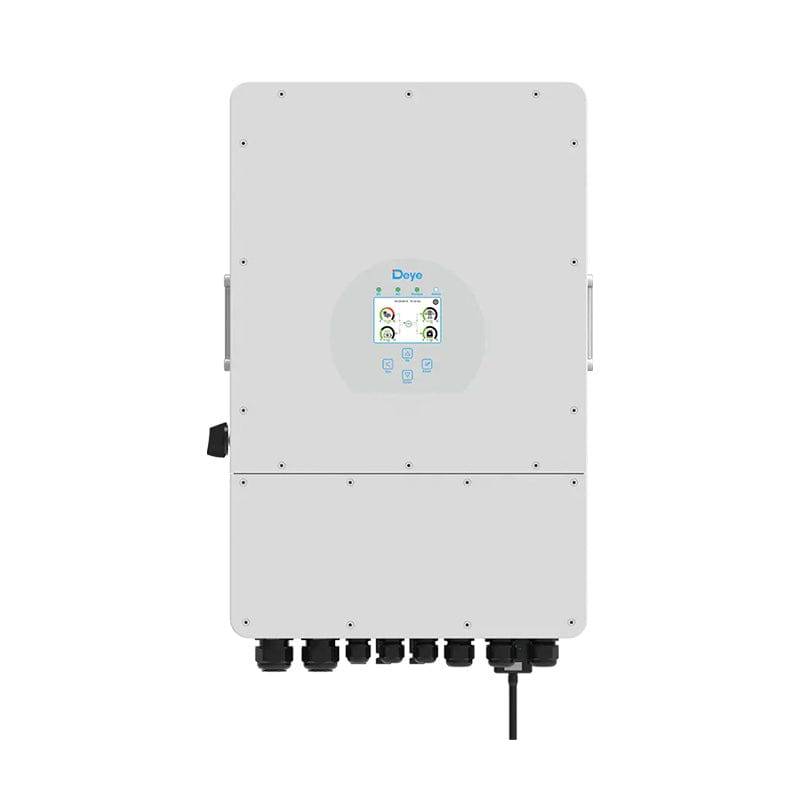

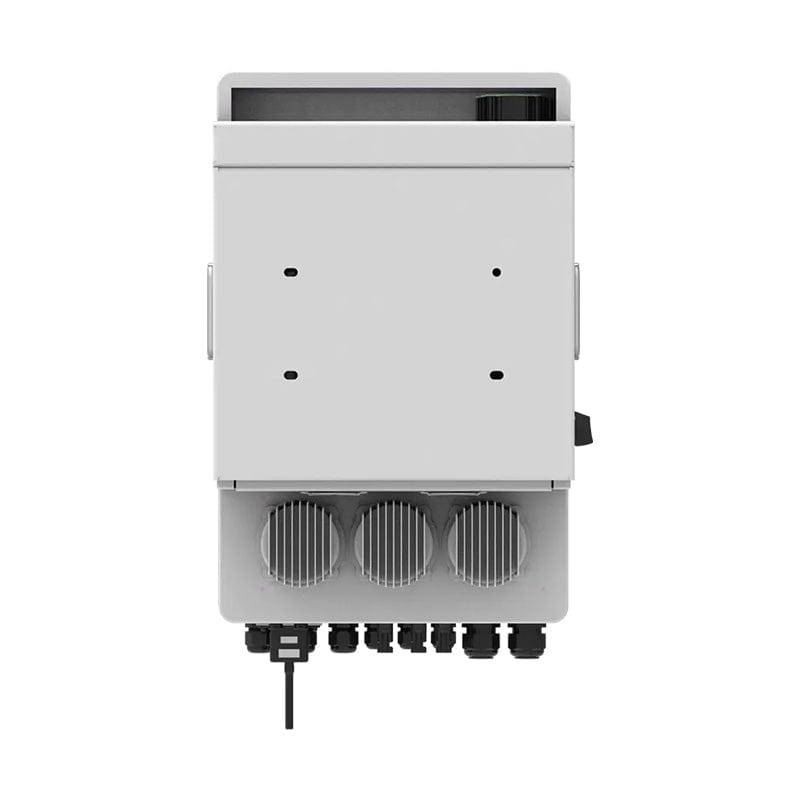

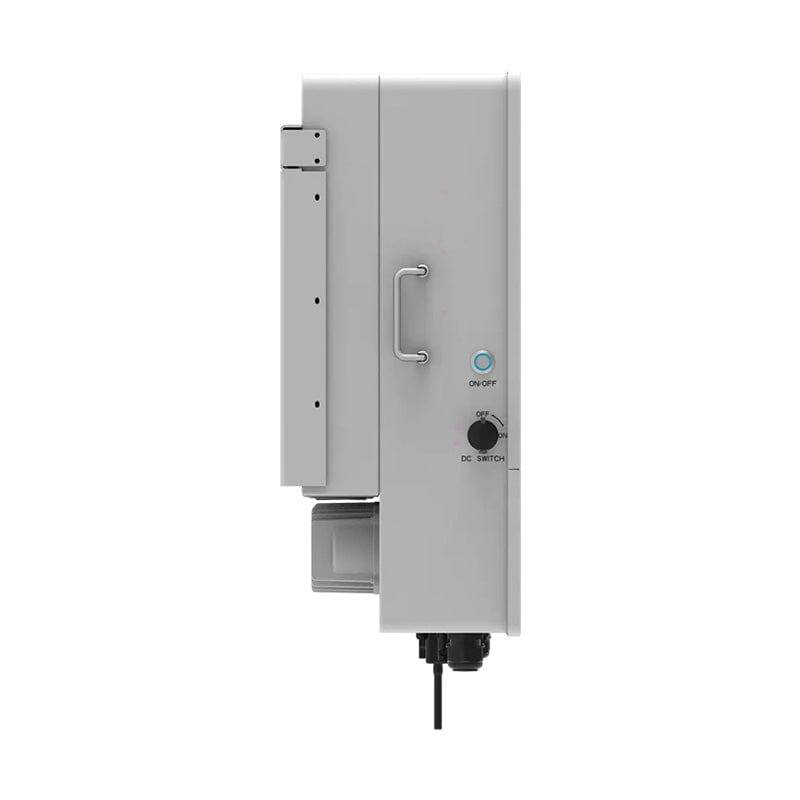

Deye 12kW Three Phase Hybrid Inverter

The 12kW Deye Inverter is a three phase hybrid inverter with a low battery voltage of 48V, making it ideal for large homes with a three phase supply and commercial applications. Equipped with 2 MPPTs, it allows you to connect up to two strings of solar panels, supporting a maximum PV array power of 15600W. This powerful and versatile inverter is designed to handle larger energy demands while offering high efficiency and flexibility.

Key Features

• High Efficiency: Delivers an impressive maximum efficiency of 97.6%, maximizing energy harvest and reducing electricity costs.
• Versatile MPPT Design: Equipped with dual Maximum Power Point Tracking (MPPT) inputs, it optimizes energy collection from solar panels, even in partial shading conditions.
• Battery Compatibility: Compatible with a wide range of high-voltage battery systems, providing reliable and scalable energy storage solutions.
• Three-Phase Output: Ensures stable and balanced power supply across three phases, suitable for various applications and energy needs.
• Advanced Safety Protection: Features comprehensive safety mechanisms including overvoltage protection, short circuit protection, and over-temperature protection.
• Intuitive User Interface: Includes a user-friendly LCD display for easy monitoring and management of your solar energy system.

Technical Specifications

• Rated Power: 12kW (Three Phase Low Battery Voltage)
• Max PV Input Power（W): 15600W
• Max PV Input Voltage: 550V
• Battery Voltage Range: 40V60V
• Max Efficiency: 97.6%
• Operating Temperature Range: -40°C to +60°C
• Weight: 34.5kg
• Dimensions: 422mm×702mm×281mm (Excluding Connectors and Brackets)
• Standard warranty: 5 Years (If installed with a Deye battery, the inverter's warranty extends to 10 years.)

Downloads

• Download Datasheet
• Download Manual
