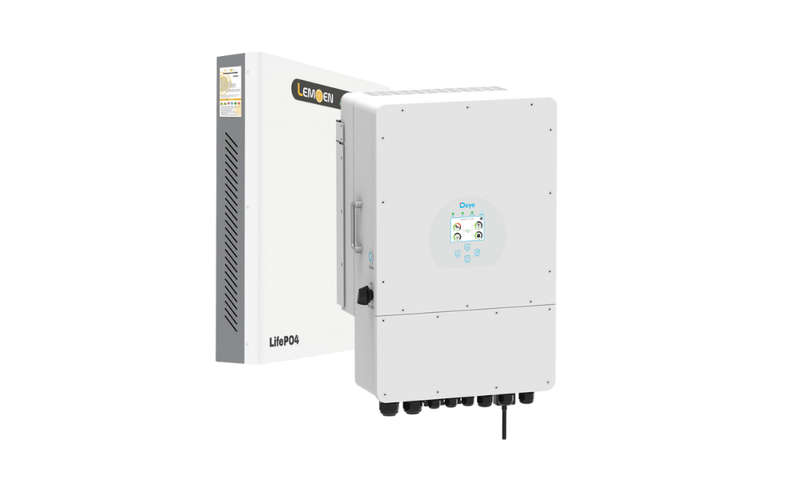

Deye 5KW hybrid invertor + Lemoen 5.12KWH lithium battery

Deye hybrid inverters include single phase 3-16kW and three-phase 8-12kW, For the SUN-3K-SG04LP1-24-EU, it uses 24V battery bank and the rest of them adopts 48V battery. Also, the SUN-16K-SG01LP1-EU is the max single phase hybrid inverter on the global market.

The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.

Description

• Package Includes WIFI Dongle & Current Transformer
• Max Efficiency of 97.6%
• 2 MPPT (Maximum Power Point Tracker)
• RS485 / CAN Communication Ports
• Load or Home power first with Zero Export to the Grid
• IP65 Ingress Protection
• High Power Factor
• AC Coupled
• Supports Generator Connection
• Six stages time of use setting
• Support multiple parallels
• Touchscreen Interface
• Update existing solar on-grid system to a hybrid system
• Use Gen input as crucial load output
• Compatible with PYLONTECH, LG, BYD etc, brand battery
• Output: 230V AC Single Phase @ 50Hz
• PV Rapid Shutdown Control, PV Arc Fault detection, input lightning protection, multiple inverters in parallel
• Multiple working modes: Grid-Tied, Hybrid or Off-Grid
• Simultaneously manages power to / from Panels, Batteries, Grid, Load, and Generator
• UPS time: less than 5ms
• Charge and Discharge up to 190A, 7.6/8Kw (120A 5Kw, 135A 6Kw)
• Wall Mounted
