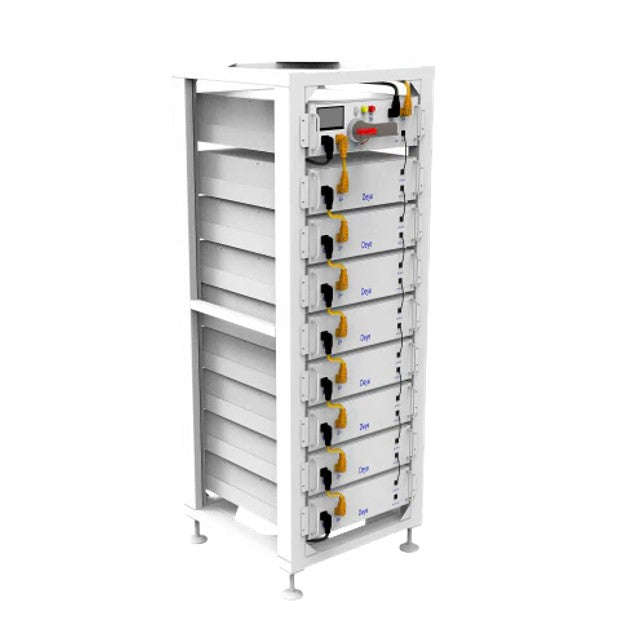

Deye 61.4kWh BOS-G 7.68KWH HV Battery Bank
The BOS-G series utilizes advanced LiFePO4 cell technology, known for its superior thermal stability, high cycle life, and excellent safety profile. Each battery module has a nominal capacity of 100Ah and energy of 5.12 kWh, allowing you to scale your system to perfectly match your energy storage requirements.
With a recommended depth of discharge (DOD) of 90% and a cycle life of 6000 cycles at 25°C, the BOS-G series ensures maximum usable energy and long-term performance. The system also features a wide operating temperature range of -20°C to 55°C, making it suitable for various environments.
The BOS-G series comes equipped with a high-voltage box (HVB750V/100A) that enables seamless integration with your existing power system. The high-voltage box supports an operating voltage range of 120-750 Vdc and a maximum charge/discharge current of 125A, ensuring efficient power transfer and compatibility with a wide array of inverters and chargers.
Safety is a top priority with the BOS-G series. The system features multiple layers of protection, including over-voltage, under-voltage, over-current, short-circuit, and temperature monitoring. The IP20-rated enclosure provides protection against dust and debris, while the built-in status indicators keep you informed of the system's operating status at all times.
Deye's commitment to quality and customer satisfaction is evident in the 10-year warranty provided with the BOS-G series. With its robust design, advanced features, and exceptional performance, the Deye BOS-G LiFePO4 battery system is the ideal choice for those seeking a reliable and efficient energy storage solution
Product Features:
- 8 x Deye BOS G 7.68kWh High Voltage Lithium Batteries
- 1 x Deye High Voltage Control Box For BOS-G
- 1 x Deye Rack for 12 BOS G Batteries
Specifications:
- Nominal Capacity: 100Ah per battery module.
- Energy per Module: 7.68 kWh.
- Total Capacity: Up to 61.44 kWh with 12 modules.
- Depth of Discharge (DOD): 90% recommended.
- Cycle Life: 6000 cycles at 25°C.
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
