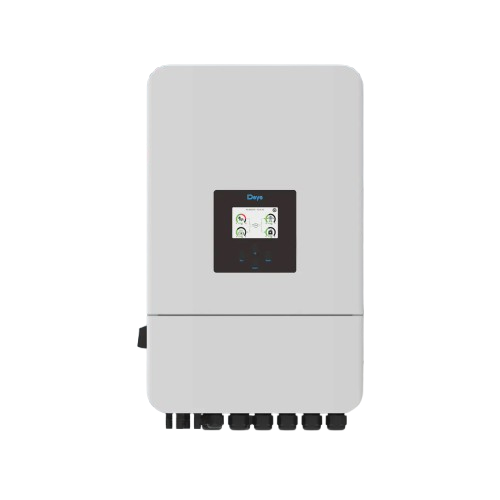

DEYE 8kW single phase inverter with dual MPPT's, WIFI included, IP65, can parallel connect DEYE 8kW single phase inverter with dual MPPT's, WIFI included, IP65, can parallel connect
DEYE 8kW single phase inverter with dual MPPT's, WIFI included, IP65, can parallel connect DEYE 8kW single phase inverter with dual MPPT's, WIFI included, IP65, can parallel connect

DEYE 8kW single phase inverter with dual MPPT's, WIFI included, IP65, can parallel connect

New 5 available
Indicative market price: R25,000.00
Only 5 left – grab it before it’s gone!
R24,795.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
10118322454806_50358761619734
Bob Shop ID
651179102

Technical specifications :

  • Max PV input power : 12000W
  • MPPT voltage range : 125 - 500Vdc
  • Max PV input current (Imp) : 26A + 26A
  • Max PV input Short-Circuit current (Isc) : 34A + 34A
  • No. of MPPT : 2
  • No. of strings per MPPT : 2
  • Rated AC input : 8000W
  • Max AC input : 8800W
  • Rated AC input/output current (A) : 36.4/34.8A
  • Max  AC input/output current (A) : 40/38.3A
  • Power factor : 0.8
  • Max Efficiency : 97.6%
  • Battery Type : Lead-acid, Gel or Lithium-ion

Datasheet available here

User manual available here

IP rating :

  • IP65

Certification :

  • Grid Regulation : IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE  217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
  • Safety / EMC Standard : IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Protection :

DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection,
AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch,
Insulation Impedance Detection, Residual Current Detection.

Features :
  • Dual MPPT inputs
  • Support storing energy from diesel generator (dedicated connectors)
  • Communication Interface : RS485/RS232/CAN
  • Monitor Mode : GPRS/WIFI/Bluetooth/4G/LAN (wifi dongle included)
  • Max. charging/discharging current of 190A
  • Single phase or 3-phase parallel installation

Dimensions :

  • 366 x 589 x 237mm (Excluding Connectors and Brackets)
  • 26.8kg

What's in the box :

  • 1 x 2 meter LAN-cable for parallel communication
  • 1 x 3 meter printer cable
  • 1 x battery temperature cable/connector
  • 1 x 100A/5-mA split core sensor clamp (4m cable)
  • 4 sets MC4 connectors
  • MC4 disconnect tool
  • Wifi dongle
  • 11 x magnetic rings for wires.
  • Wall-mounting bracket
  • 4 x mounting bolts
  • User Manual

Warranty :

5 Years, the Warranty Period Depends the Final Installation Site of Inverter,
More Info Please Refer to Warranty Policy


**FREE DELIVERY NATIONWIDE!!!**

Free nationwide delivery on inverters. (T's & C's apply)



IMPORTANT: THE CORRECT SETTINGS ON THE INVERTER WILL AID IN ENSURING OPTIMAL BATTERY LIFE.
