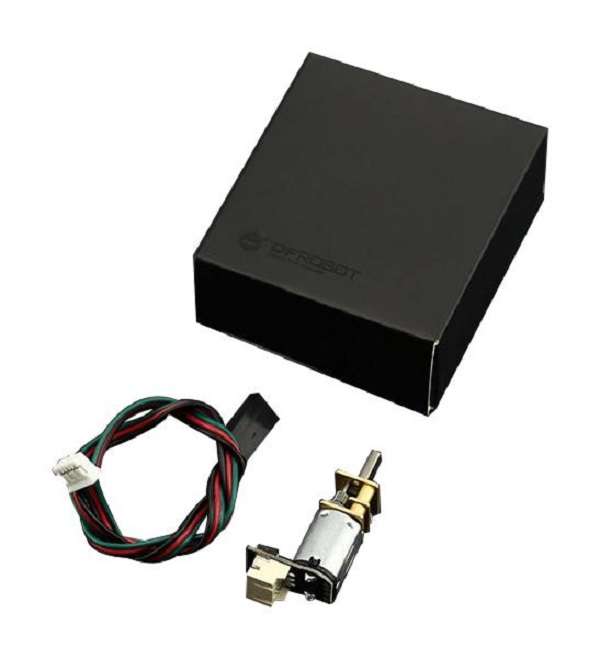

DFRobot (DFR0399) Add-On Board, Micro Motor Module, DC, 75:1

DFRobot (DFR0399) Add-On Board, Micro Motor Module, DC, 75:1

New 3 available
Only 3 left – grab it before it’s gone!
R695.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2946075
Bob Shop ID
674512070
Product Information:- Accessory Type: DC Micro Metal Gear Motor w/Driver-75:1- For Use With Arduino IO Expansion Shield- Product Range: Gravity SeriesProduct Overview:A compact and easy to operate DC geared motor complete with a driver that offersa reduction ratio of 75:1; you can control the motor using a single controlsignal thanks to the 3-pin Gravity interface. The motor combines the features ofa DC motor and a 360-degree servo.Specifications:- Implement forward- reverse movement and speed control via PWM- Operating voltage: 3.5-8V- Reduction ratio: 75:1- No load current: Approx. 40mA @6V- Static current: & 1mA (no PWM control signal)- PWM frequency: 500Hz- PPM signal resolution: 1us- PPM signal pulse width range: 500us-2500us- Clockwise pulse width range: 500us-1400us (500us speed maximum)- Stop pulse width range: 1400us-1600us- Anticlockwise pulse width range: 1600us-2500us (2500us speed maximum)Applications:- Embedded Design & Development, Electronics Design, IoT (Internet of Things),Hobby & Education
