DFRobot (DFR0518) Micro Mate Gravity Expansion Board

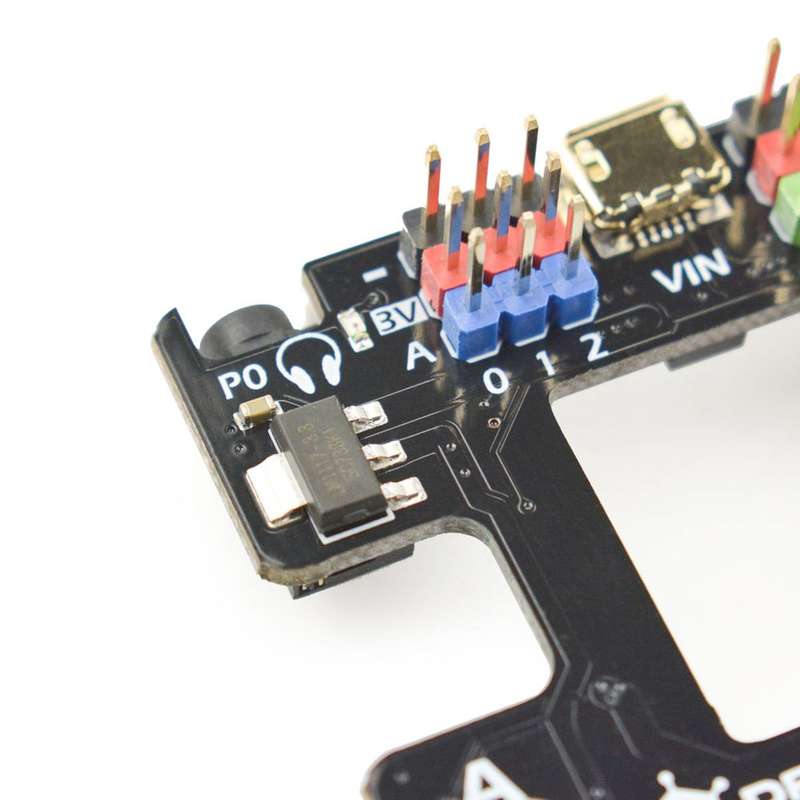

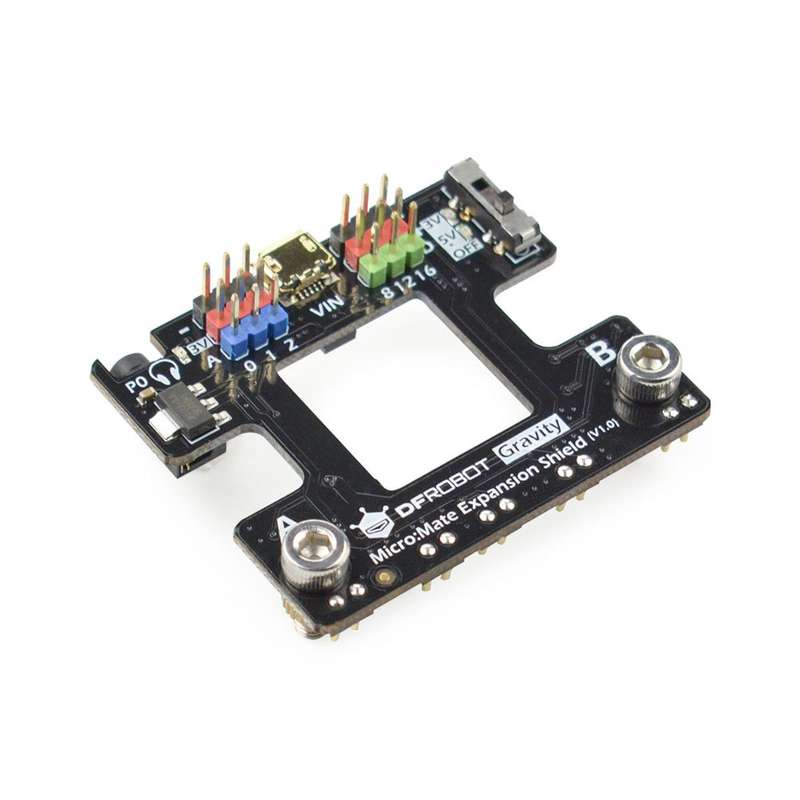

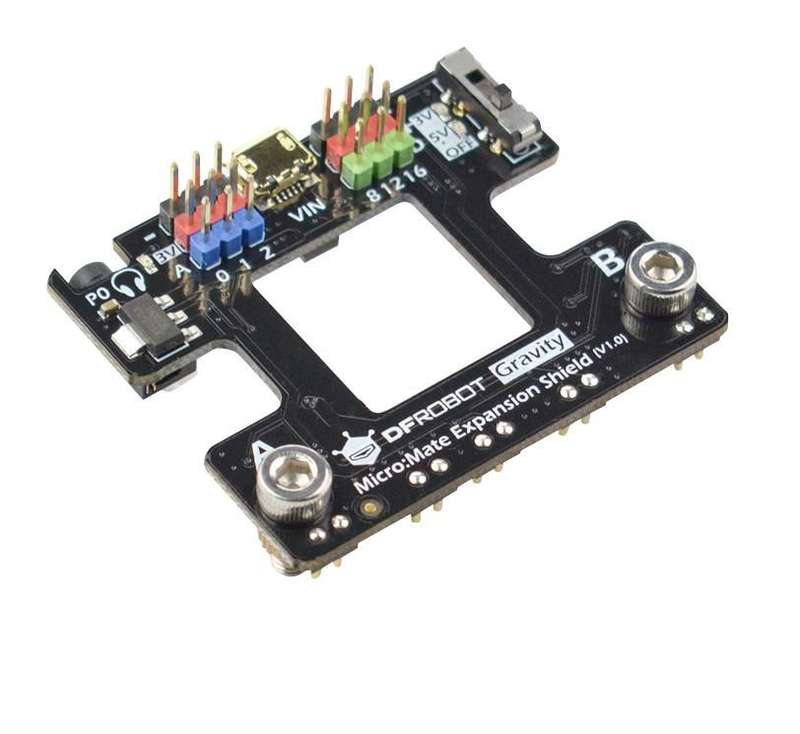

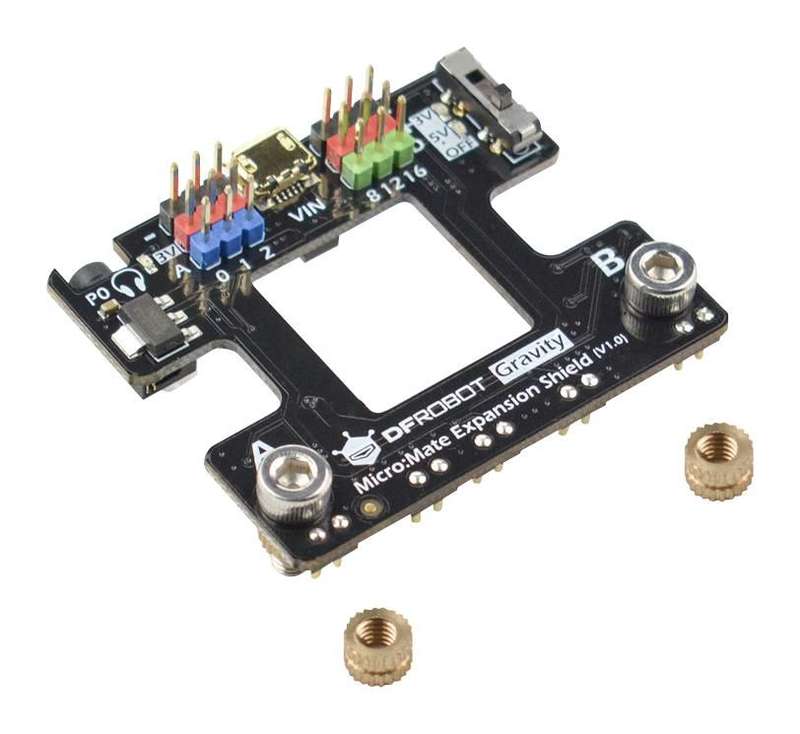

Product InformationSilicon Manufacturer: -Core Architecture: -Core Sub-Architecture: -Silicon Core Number: -Silicon Family Name: -For Use With: BBC micro:bit BoardKit Contents: Micro Mate Gravity Expansion Board, 2x Brass Nut M4x5x4Product Range: -Product Overviewmicro:Mate mini & thin expansion board for micro:bit (gravity compatible). It isa tiny micro:bit I/O expansion board for learning electronics and building DIYprojects. micro:Mate expands 6 sets of 3-pin I/O interfaces, capable ofconnecting DFRobot Gravity series modules, servo motors, sensors and jumperwires. Additionally, pin 8, 12, 16 support voltage switch between 3V-5V,allowing up to 5V 2A digital (PWM) output. micro:Mate is in the same dimensionof micro:bit. It connects to micro:bit through contact pins (with springloaded), ensuring easy, compact and secure connection. The rubber bumpers andthe 3.5mm audio jack on the back side keep the expansion installed stably on theboard, meanwhile prevents reversed connection.Colour coded gravity 3-pin interface, compatible with hundreds of plug&playelectronic modules3-way analogue input, 6-way digital input/output (PWM), 3V/5V jumper switch,3.5mm audio jackExternal micro USB power port, up to 5V 2A power outputWell designed component lay-out and silk screen, reversed connection protectionOperating voltage is 5V/3.3VInput power is less then 10WMeasuring range from 0 to 3.3V (analogue), 0 to 5V (digital)Dimension is 68.5mm x 53.3mm/ 2.7 x 2.1 inch, weight is 22.8gContentsMicro:Mate Gravity Expansion Board x1, Brass Nut M4x5x4 x2.
