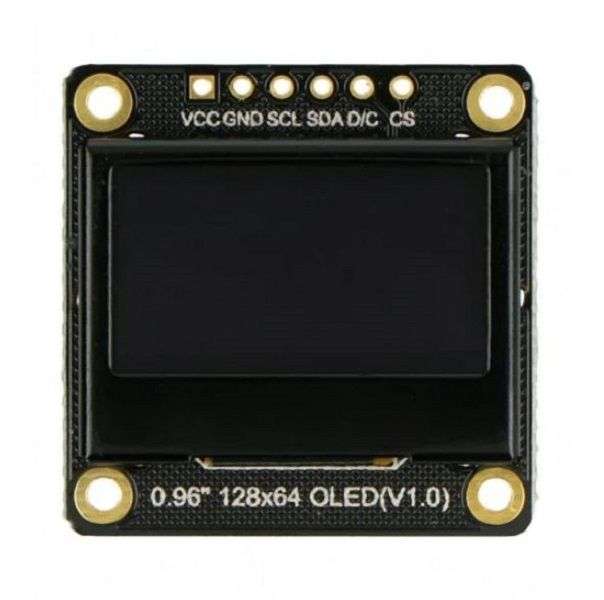

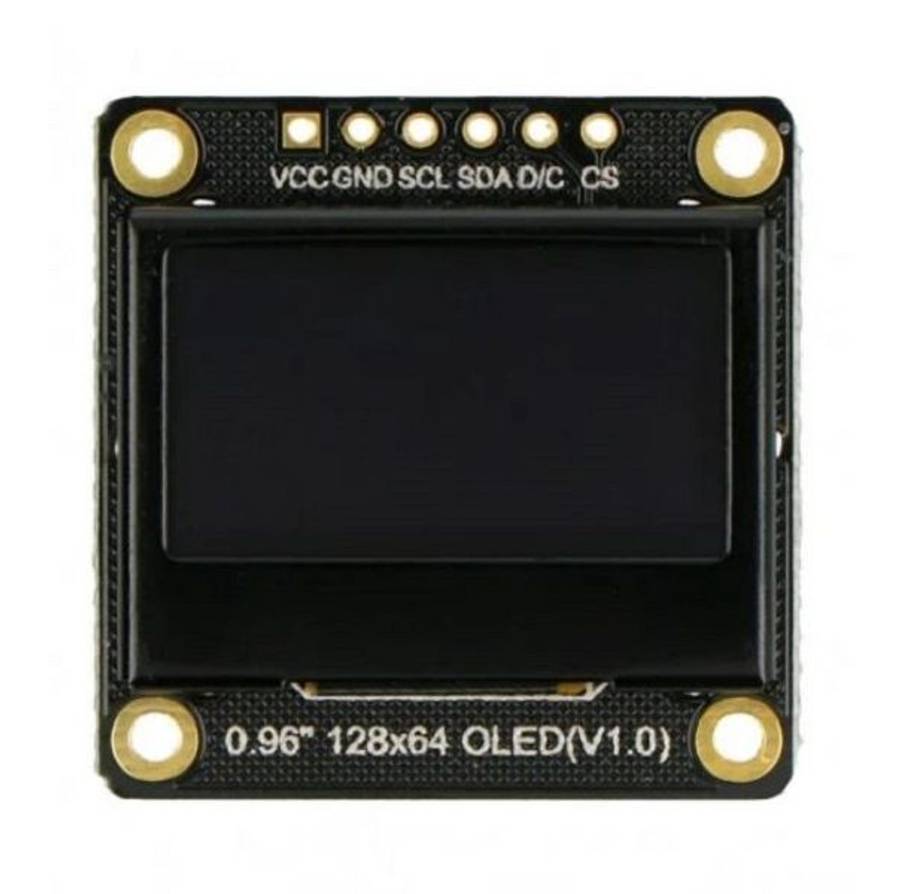

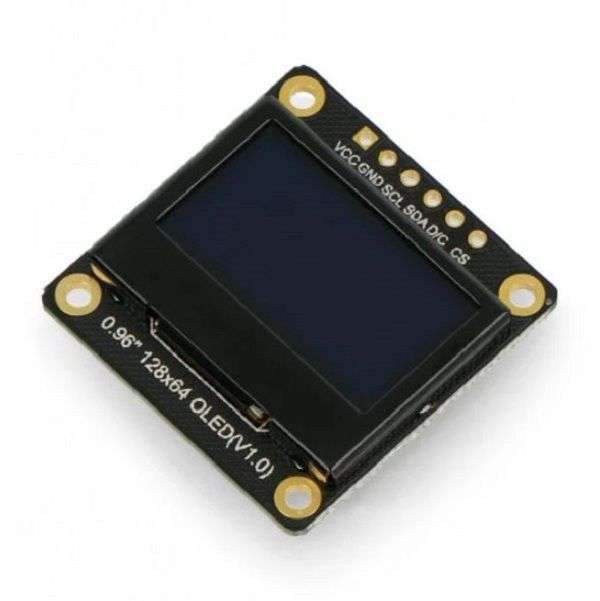

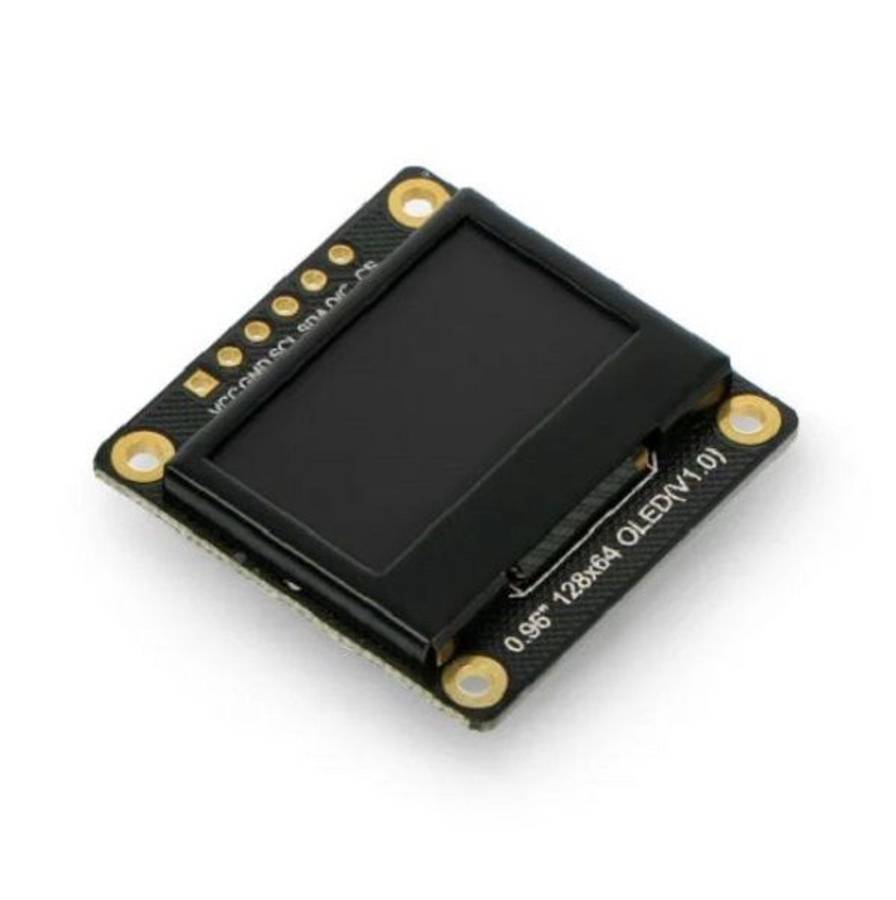

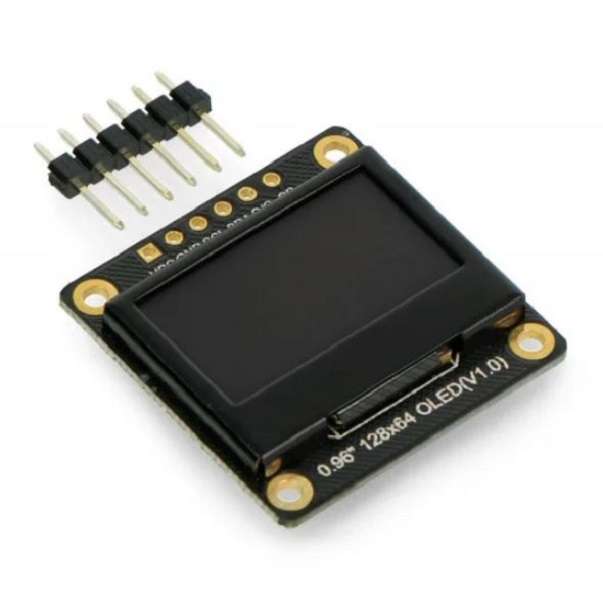

DFRobot (DFR0650)OLED Display Module, SSD1306

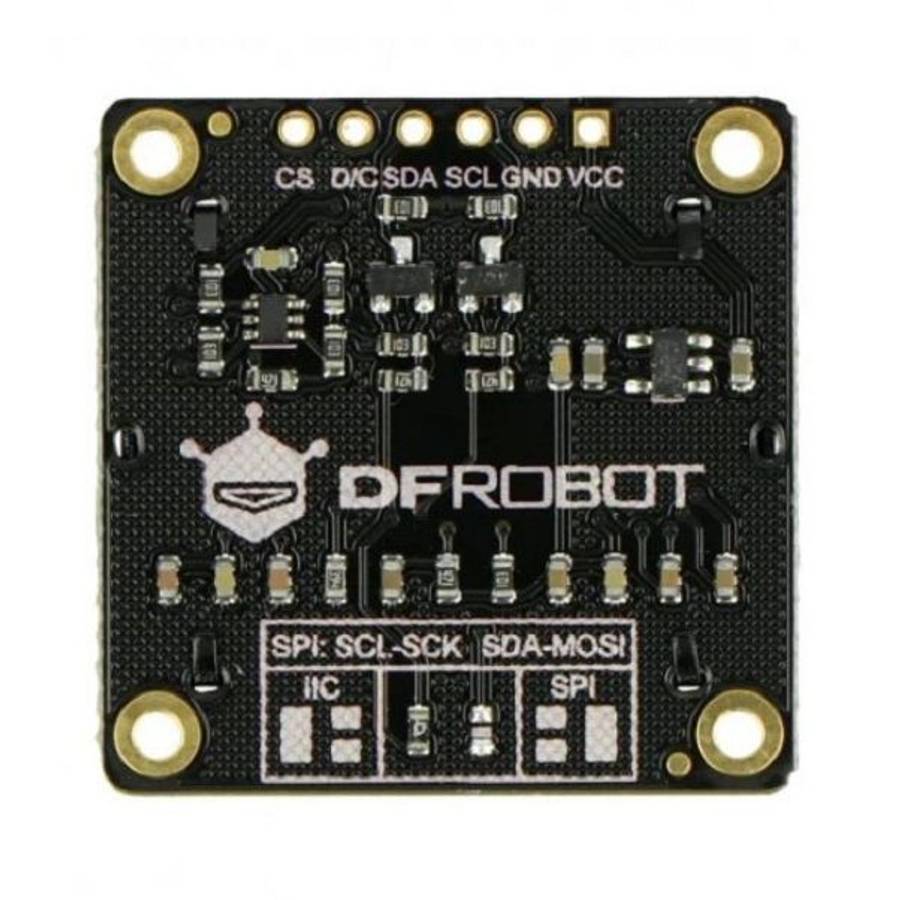

Product OverviewDFR0650 is a Fermion: Monochrome 0.96" 128x64 I2C/SPI OLED display (breakout).This 0.96" OLED display module uses the SSD1306 drive chip. With its highcontrast, simple wiring and low power consumption, it can be applied to manydisplay applications, such as wearable display devices, Mini small gameconsoles, desktop widgets, etc. It is compatible with controllers such asArduino UNO, Leonardo, ESP32/ESP8266, FireBettle-M0 and so on. Internal power-onreset processing, I2C communication methods, so that your welding line will bemore convenient and simpler. If you want to change I2C communication to SPI, youjust need to change the resistor position. In addition, the display is in analuminium frame package that protects the screen from damage, and also preventsyou from scratching that caused by the glass edge of the screen. Typicalapplications include thermometer, desktop weather display, kitchen weighingmachine, air quality detector, mini game consoles and wearable display.0.96" OLED display module supports both 3.3V and 5VDisplay module adopts a high-contrast, low-power OLED display128 x 64 resolution and colour pixels and display 4 rows of 16 pixel (white)characters30 x 30mm sizeSupport I2C/SPI and supports power-on resetIron frame to protect the screenApplicable for users who want to display much content with high-speed SPIrefreshSelf-illuminating OLED displayControllable pixels and low power consumptionOperating temperature range from -30 C to 70 C
