DFRobot (DFR0668) LiPo Charger, Type C Board, Arduino Board

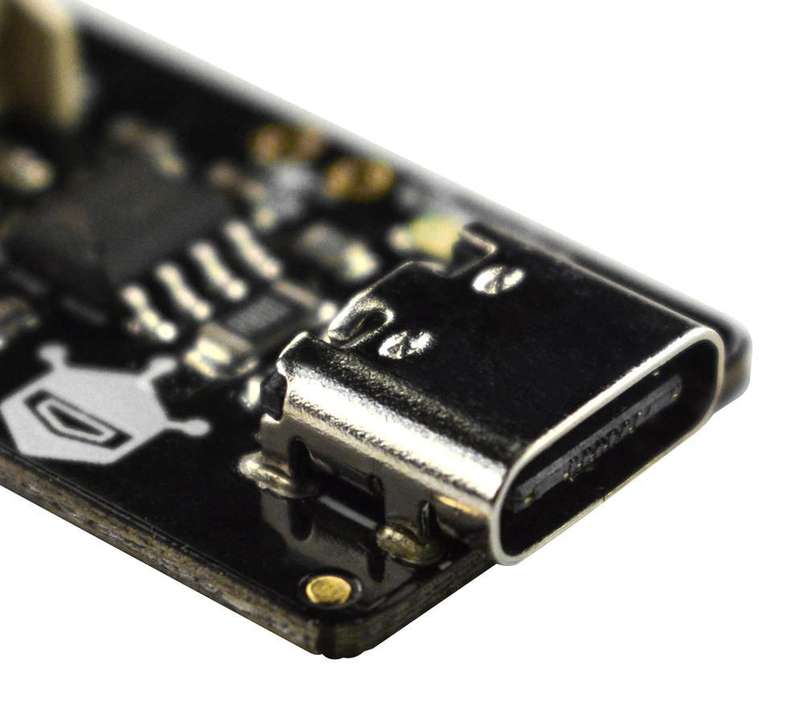

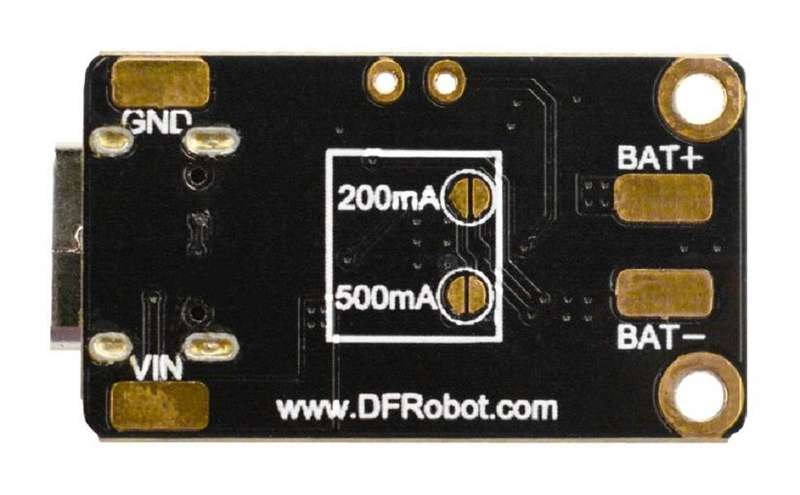

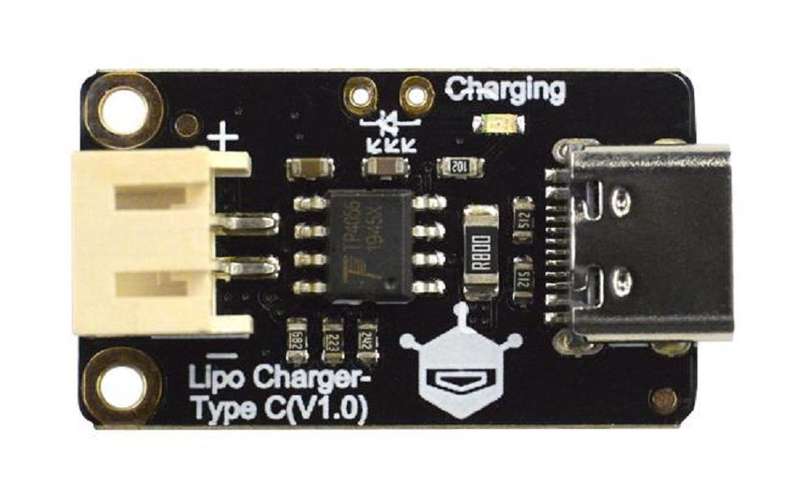

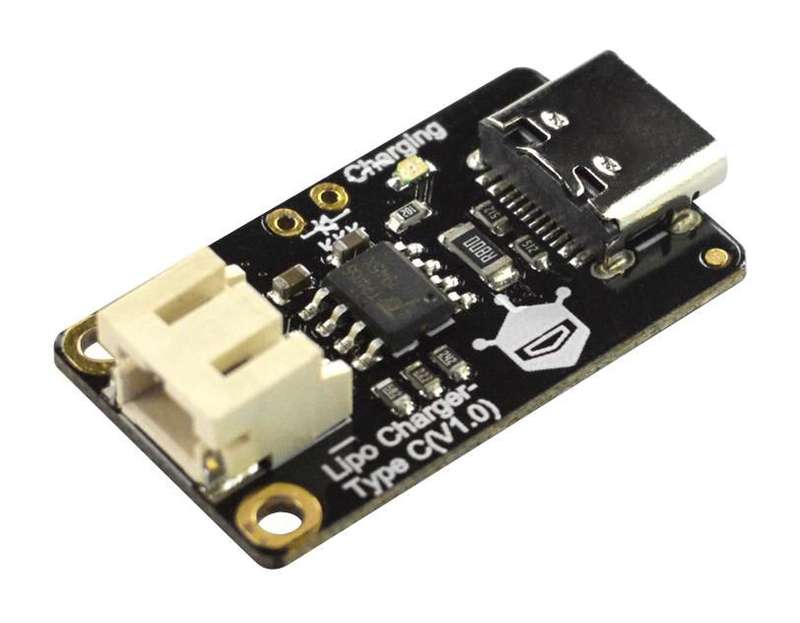

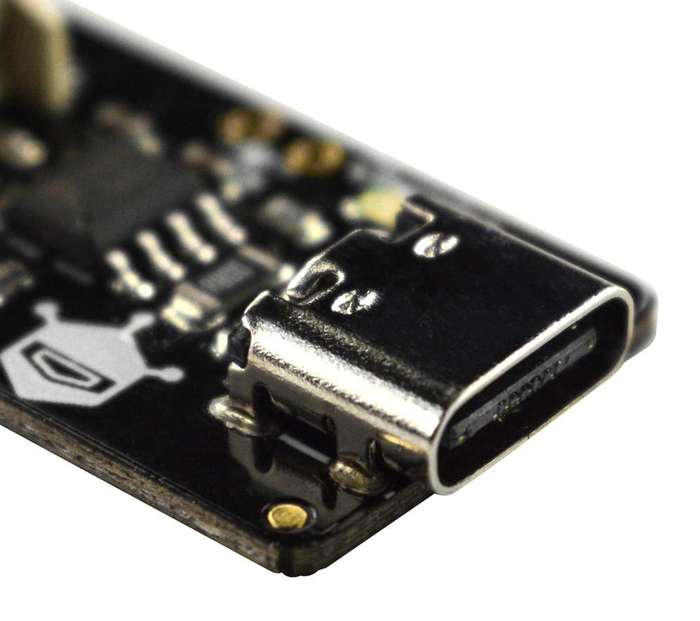

DFR0668 is a Type-C Lipo charger designed for single-cell 3.7V lithium battery.The compact size makes it easy to integrate into your applications. The chargeradopts TP4056X lithium battery charging IC which guarantees quick and safecharging and also can easily switch between 3 output currents (the defaultoutput current is 50mA) by selecting different bonding pads on the back. Thethermal feedback inside the TP4056X can automatically adjust the chargingcurrent to limit the chip temperature under high power operation or high ambienttemperature conditions. Plug this charger into power source via its Type-C port,the LED on the charger will flash when no battery is not connected. keep on whencharging and go off when the battery is fully charged. So, this LED will consumenothing of your battery. Besides, you can also connect an external indicatorwhich allows you to easily check the charging status when this module isintegrated into your projects.Specifications:- Accessory Type: Lipo Charger-Type C Board- For Use With: Arduino Board- Kit Contents: Lipo Charger-Type C- Multiple current output modes (50/200/500mA- Mini size- External indicator available- Safe and quick charging- 5V input voltage- 4.2V 1% limited charging voltage- Working temperature of -40 C to 85 C- 50mA, 200mA, 500mA charging current
