DFRobot (DFR0767) IoT Router Carrier Board, ARM, Cortex-A72,

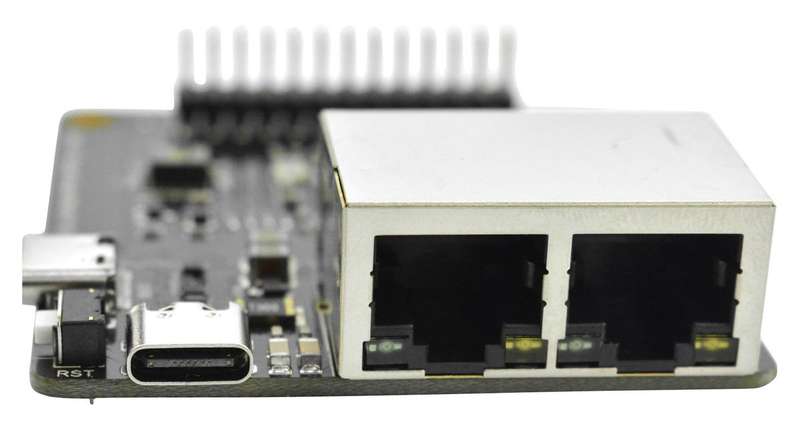

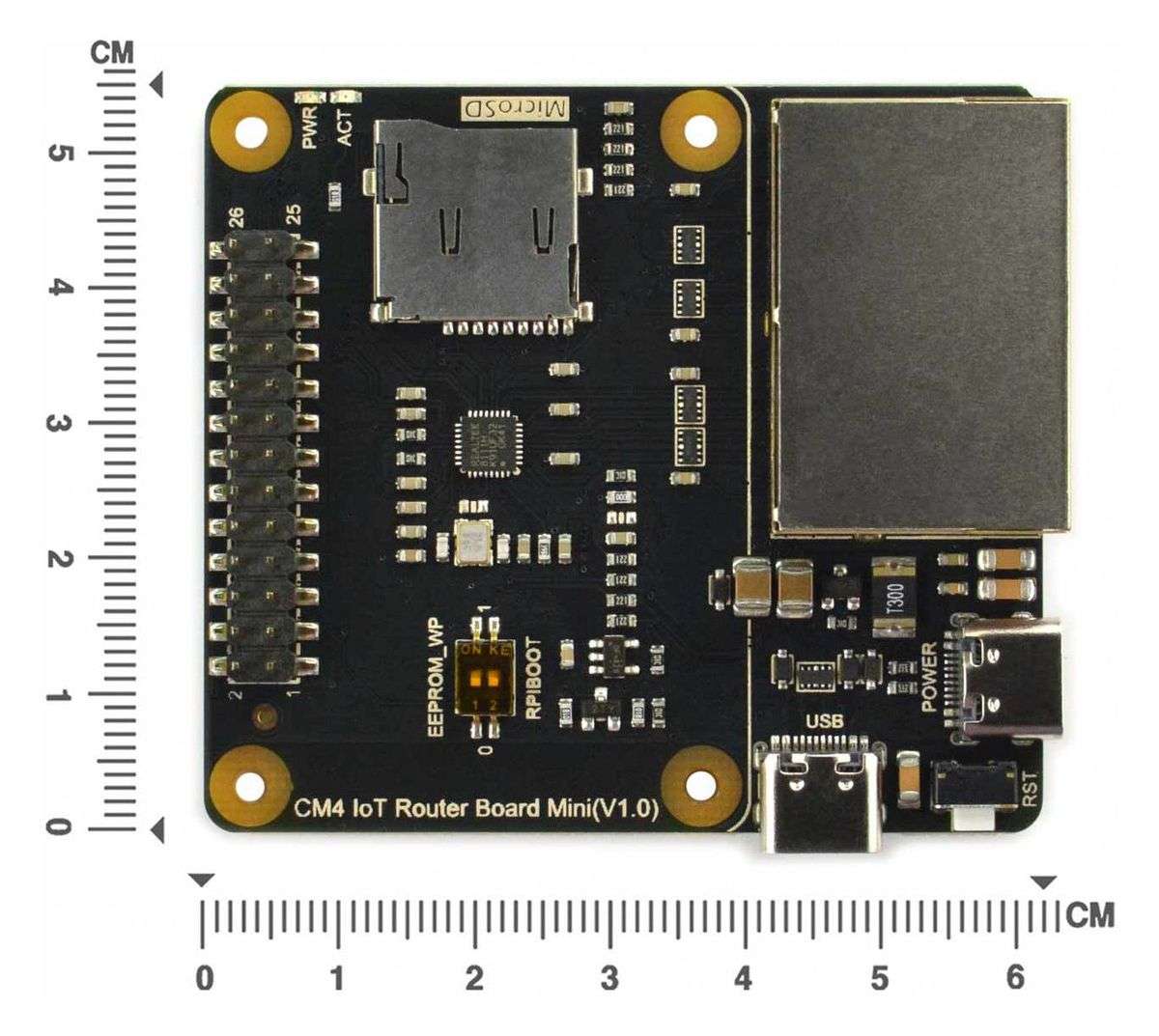

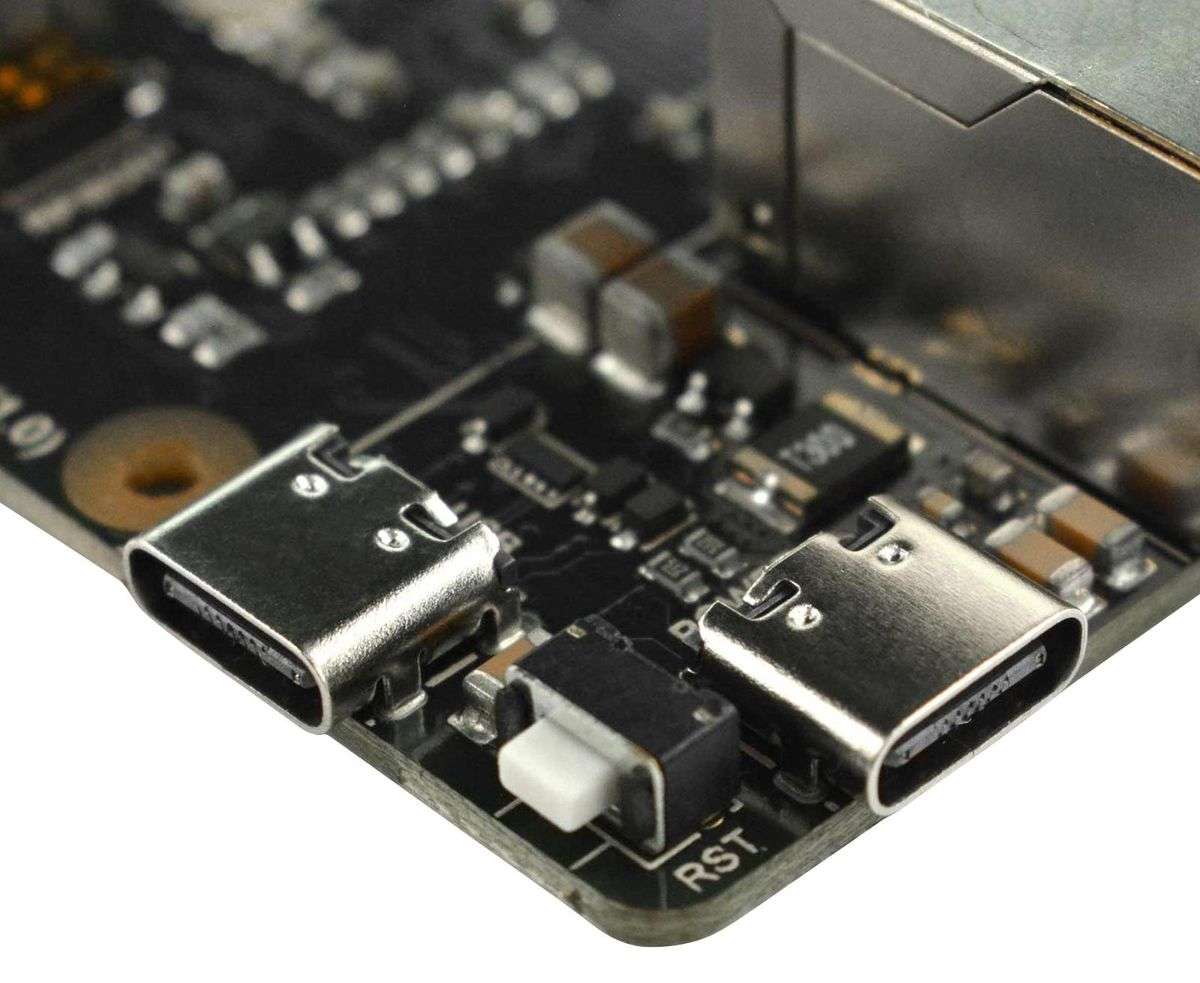

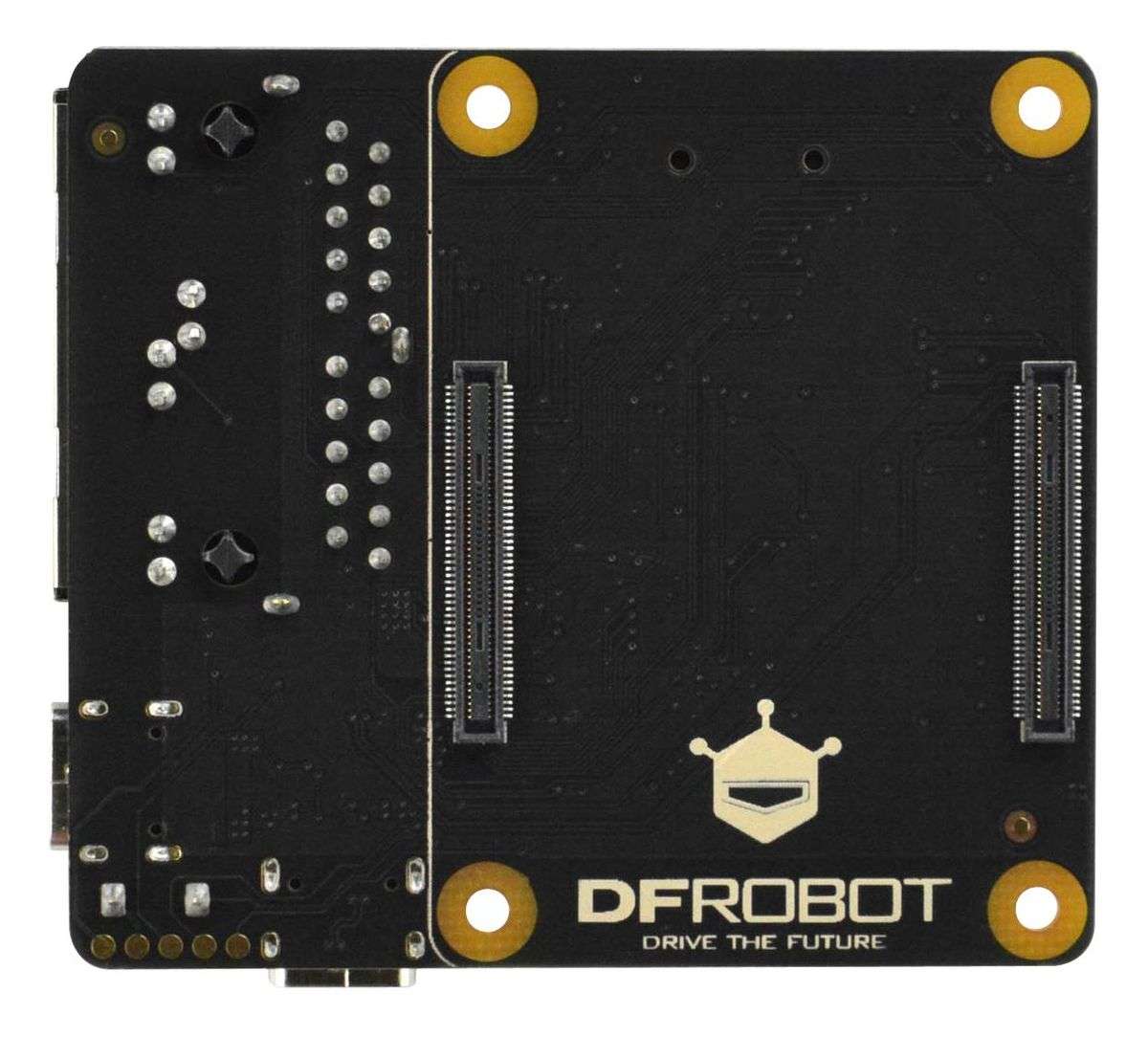

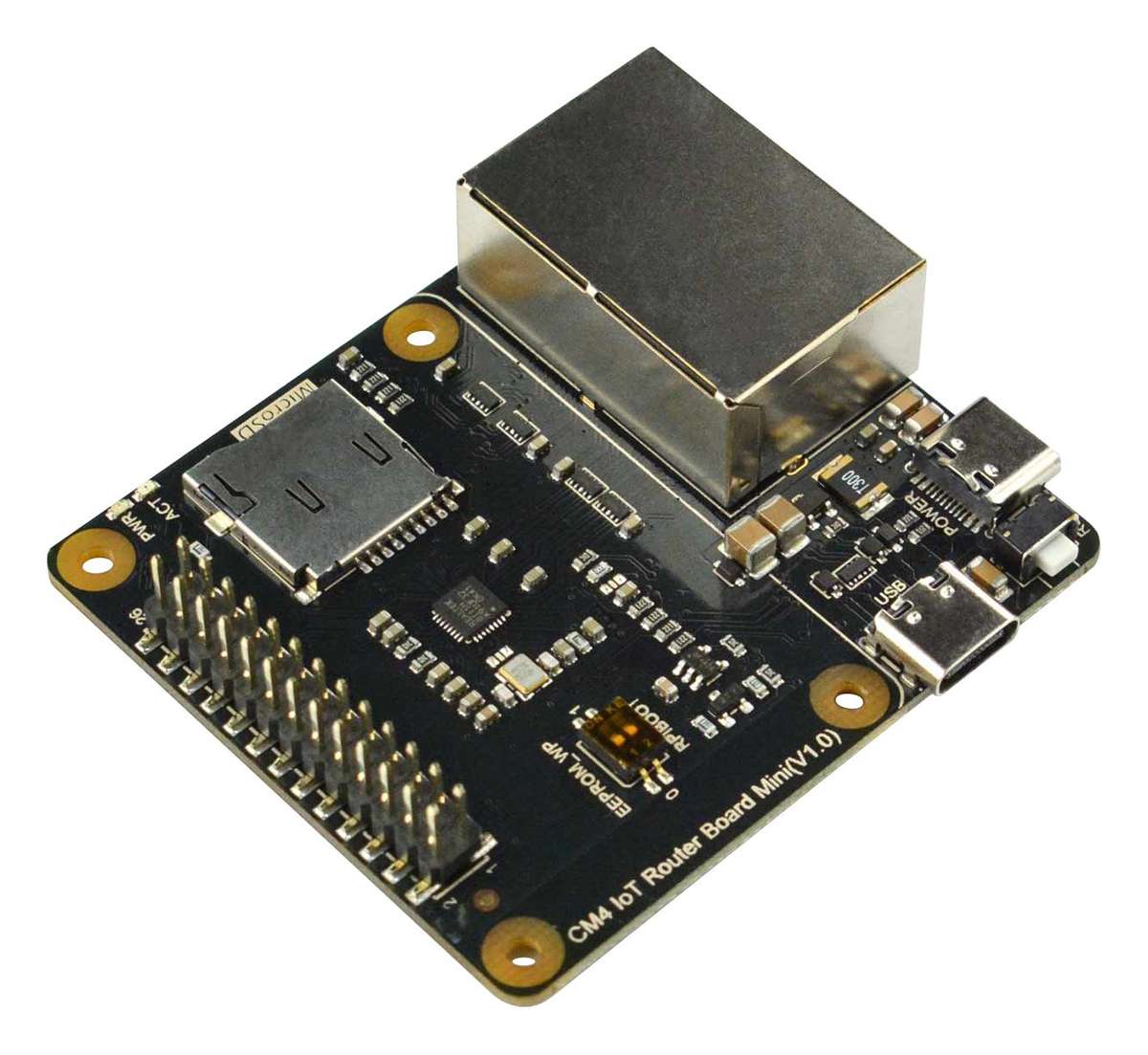

Silicon Manufacturer: BroadcomFor Use With: Raspberry Pi Compute ModuleCore Architecture: ARMCore Sub-Architecture: Cortex-A72Silicon Core Number: BCM2711Silicon Family Name: BCM2xxxKit Contents: 1 x Compute Module 4 IoT Router Carrier Board MiniProduct Overview:Raspberry Pi compute module 4 IoT router carrier board mini. This is an internetexpansion board based on the Raspberry Pi compute module 4. When connecting witha gigabit network card via PCle, it brings Raspberry Pi CM4 two full-speedgigabit network ports and offers better performance, lower CPU usage and higherstability for a long time work compared with a USB network card. Besides with amini size of 55 x 62mm, the board still retains the characteristic GPIO pinheader of Raspberry Pi which makes it applicable for connecting other actuators,sensors and smart cooling fan. Furthermore, there is also a USB2.0 interfacethat can be connected to mobile hard drives, printers, WI-FI modules, LTFmodules, etc. The powerful performance of BCM2711 4 core 1.5GHz Cortex-A72 andthe rich software support in the Raspberry Pi community make this board a solidfoundation for building high-performance gateways, smart routers and home IoTplatforms.Provides OpenWRT open-source router systemCompatible with raspberry OS, Ubuntu server and other raspberry pi systemsEthernet: ETH1: compute module 4 built-In and ETH2: PCI express 1000BASE-T NIC1x USB-C: power only and 1x USB-C: USB 2.0 high speedStorage card: microSD slot (Only modules without eMMC supported)GPIO: 26pin GPIO compatible with raspberry piPower supply: USB-C 5V/3AOperating temperature range 0 C to 80 CConnected to peripherals and used as a mini-NAS, wireless network bridge, or LTEInternet terminal
