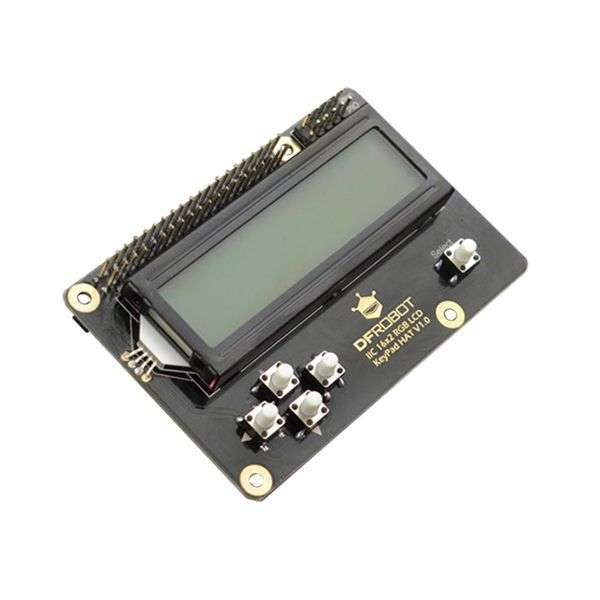

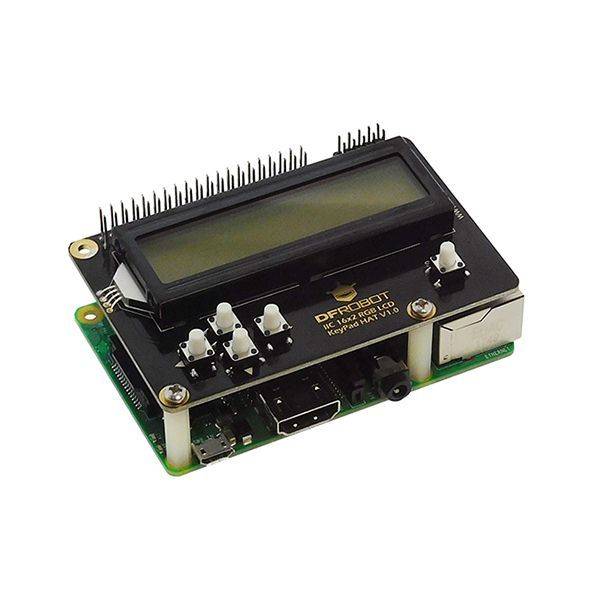

DFRobot, LCD KeyPad HAT with RGB Font (Compatible with Raspberry Pi 4B/3B+)

This is a 2x16 character RGB LCD+Keypad plate for Raspberry Pi. We madeimprovements in the wiring connection based on the previous LCD display as wellas left out the contrast adjustment function, so the product can be pretty easyto use, and users can spend time focusing on the most important projects.The RGB LCD1602 display is integrated on the shield. It leads out Raspberry Pi'sGPIO ports for connecting more device. Besides, the shield adopts IIC interface,so you can realize the 16 million colour combination of the LCD, backlightbrightness adjustment, display control etc. To convenient your use on RaspberryPi, there are 5 push-buttons integrated on the board to help you to switchdisplay and configure functions, then you can easily build up your data monitorand small operating platform.IIC 16x2 RGB LCD Keypad HAT has two display effects: colourful background orcolourful font.Supply Voltage: 5VLogic Voltage: 3.3VOperating Current: Less than 60mA16 x 2 LCD DisplayCommunication: IICFont: 5 x 8Backlight: RGB adjustable backlight (16 million)Operating Temperature: -20 to +70 Degrees CelsiusStorage Temperature: -30 to +80 Degrees CelsiusDimensions: 85.0mm x 56.0mm x 26.8mm/3.35 x 2.20 x 1.06"
