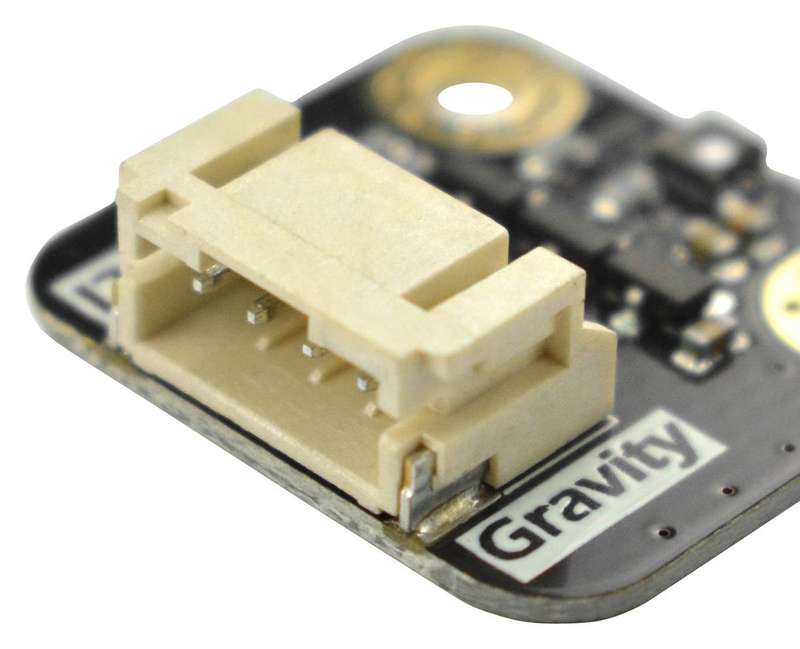

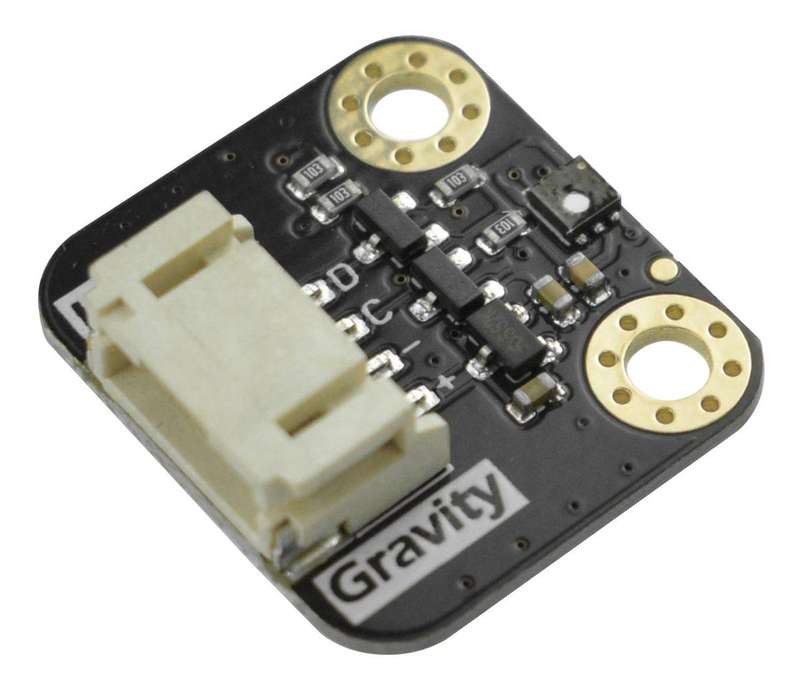

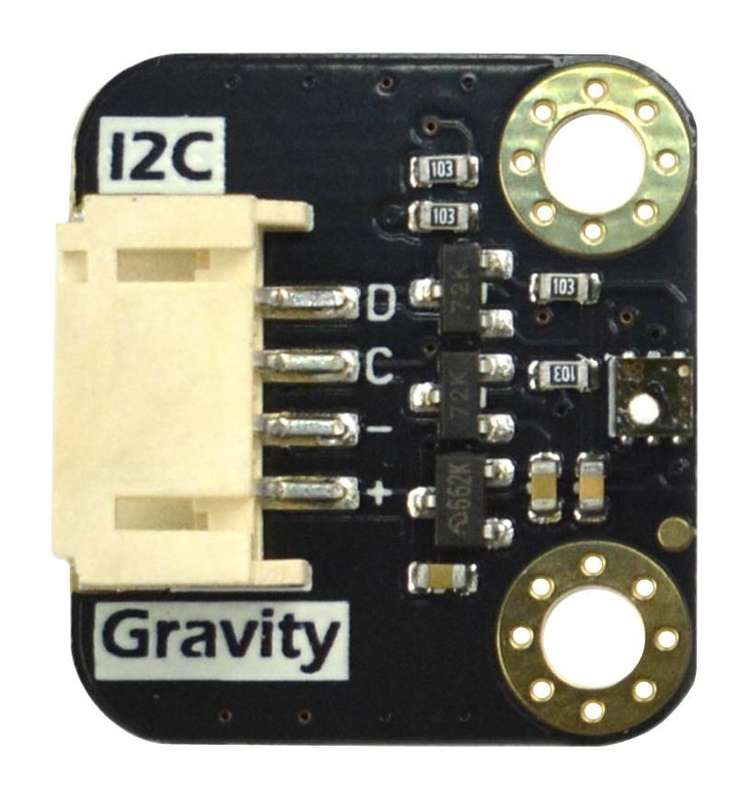

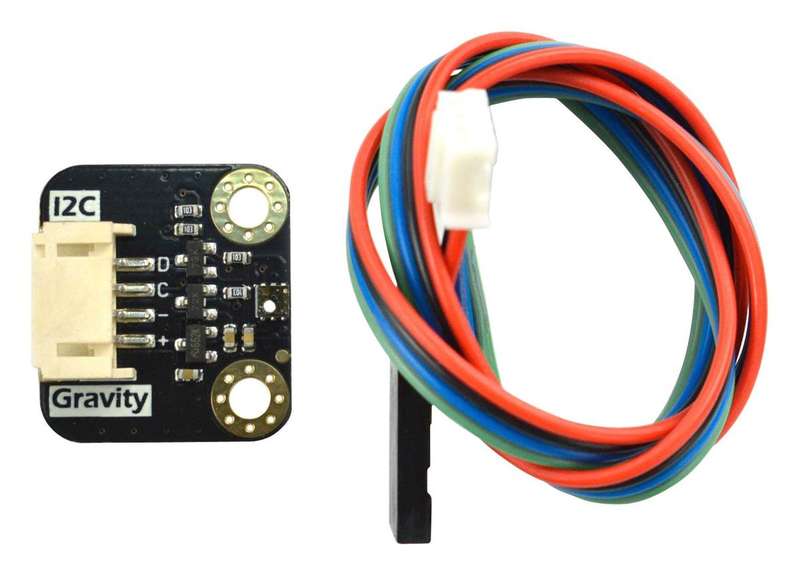

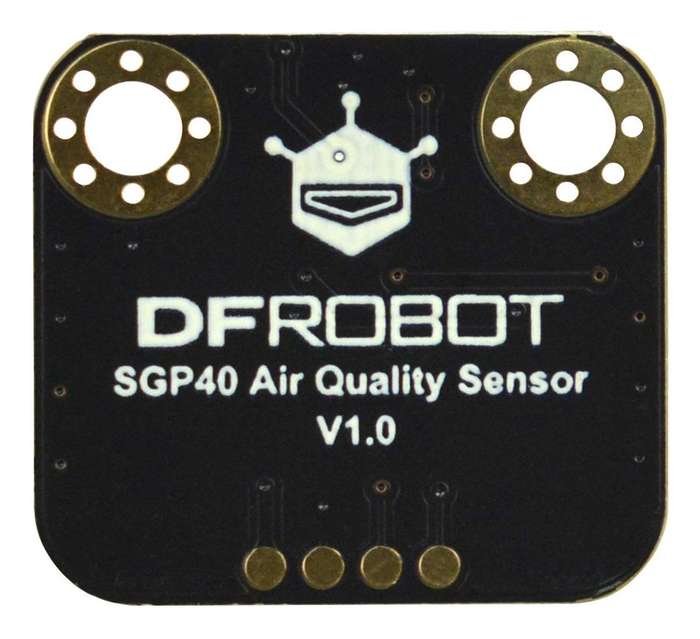

DFRobot (SEN0394) Air Quality Sensor Module, Gravity, SGP40, 2.6mA

Gravity SGP40 air quality sensor adopts the new SGP40 digital VOC sensor chiplaunched by the well-known Sensirion. Based on the Sensirion's CMOSenstechnology, the SGP40 offers a complete sensor system on a single chip, atemperature-controlled micro-hotplate and a humidity-compensated indoor airquality signal. In combination with Sensirion's powerful VOC algorithm, thesensor signal can be directly used to evaluate indoor air quality. It featureslow power(2.6mA), fast response(2s) and small size. The data from the sensor canbe directly used to evaluate air quality without calibration. Integrated with aneasy-to-connect Gravity interface, this Gravity SGP40 Air Quality sensor is verysuitable for indoor projects that will be used for a long time, such asrefitting air purifiers, kitchen hoods, etc.Specifications:- Accessory Type: SGP40 Air Quality Sensor Module- For Use With: Arduino Board- Ultra-low power consumption(2.6mA)- Built-in temperature and humidity compensation, no need to calibrate- VOC index for direct air quality indication- 3.3V to 5V power supply and 2.6mA operating current- 10S preheat time, 2S response time and I2C communication- 0x 59 I2C address- Operating temperature range -10 C to 50 C- Storage temperature range from 5 C to 30 C- Measuring range of 0-1000ppm(ethanol equivalent)
