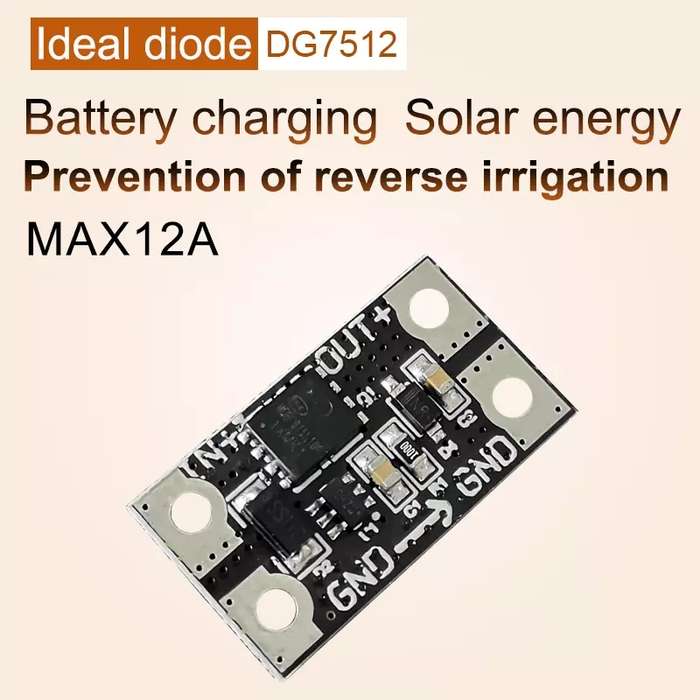

DG7512 75V 12A High Current Ideal Diode Solar Energy Anti-backflow Charging Anti-backflow Protection

New

20 available

R293.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4040

92.36 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654096671

Specification:

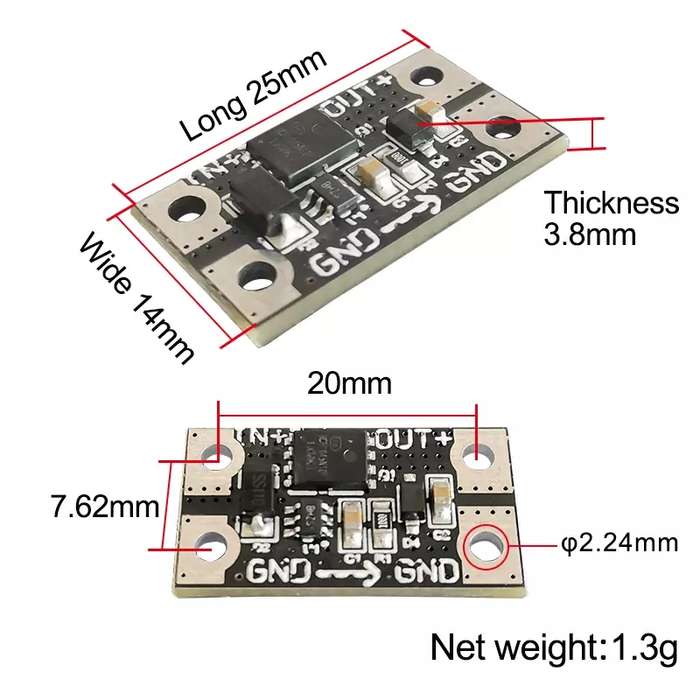

Module name: DG7512 anti-backflow ideal diode Working voltage: DC5-75V Working current: 12A (MAX) (without heat dissipation for a long time working within 10A, Can be used in parallel to increase operating current) Static operating current: 0.7mA Input reverse connection protection: None (do not reverse the positive and negative poles, otherwise the chip will be burned) Working temperature: -40a~125a Connection method: welding output Module size: 25 *14*3.8mm
Package included:
1 xHigh Current Ideal Diode
