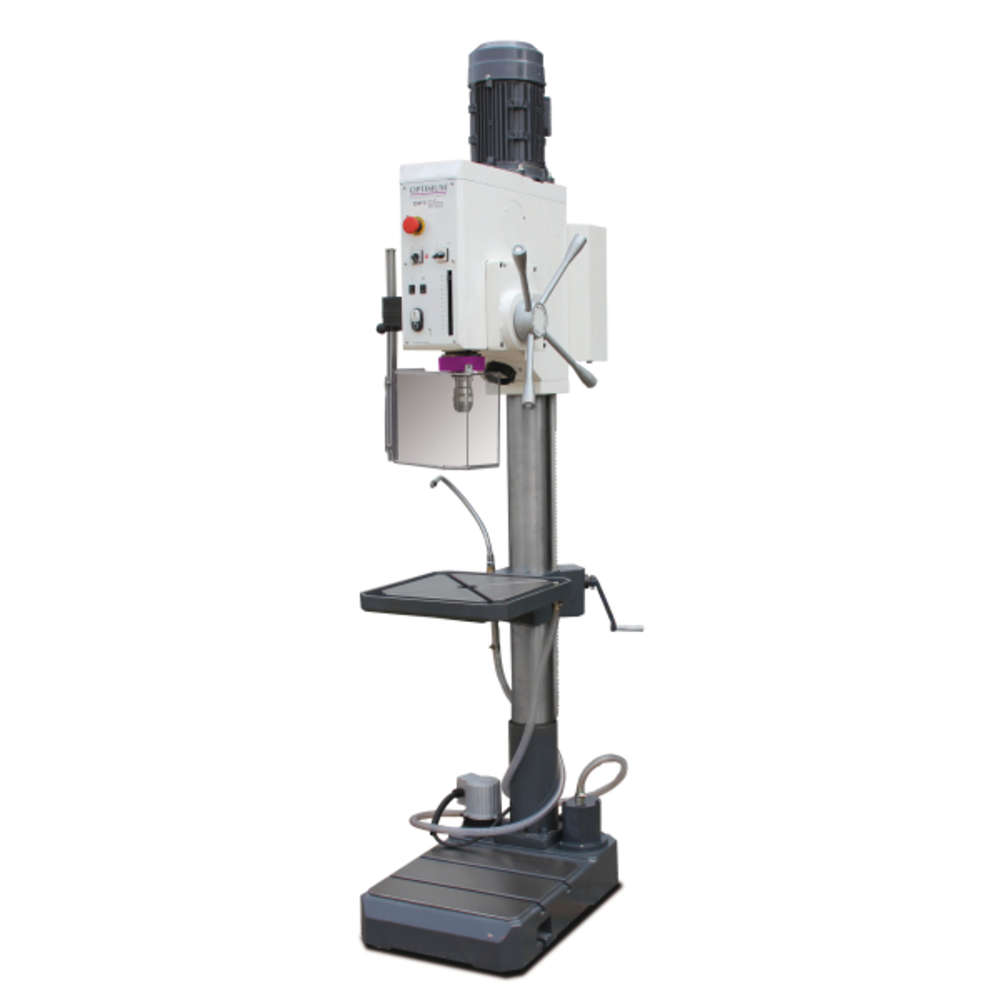

Upright drilling machine with gear
Description
Bench drills and upright drilling machines with gear
High true running accuracy due to hardened and ground main spindle
Wide speed range
Heavy, solid cast iron construction
Adjustable drilling depth stop with millimetre scale
Low maintenance gear with grease lubrication
OPTIdrill DH 32GS:
Threading function
Automatic spindle sleeve feed
Coolant pump
Optional foot switch for operating the
thread cutting function and to switch right-left
Automatic spindle sleeve feed
For deep drilling or pocket hole drilling, the coupler of the automatic spindle sleeve feed can be opened or closed at any time by actuating the spindle feed switch
Features
Gear
8 gear stageDH 32GS: 75 2'000 min-1
Integrated drill drift
Easy tool change due to ejection mechanism
Right-hand/left-hand rotation
Machine luminaire
Integrated in the drill head
Halogen lamp
Chuck guard
Best possible protection of the user
Height-adjustable
Micro switch
Casting column
Thick-walled
For high power absorption and stability
Drilling table
Largely dimensioned
Solid
Precisely worked
Transversally running T-slots
Heavily ribbed at the rear side
Coolant equipment
Chip filter
according to the machine directive
Optional foot switch for DH 32GS (Item No 3050032)
Functions:
Thread cutting
Switching from right-hand/left rotation
Extent of Supply
Adapter MT 4-B16
3034240
