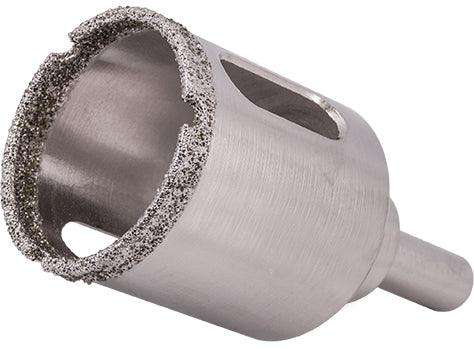

Diamond Core Bit 35 Mm For Tiles

Application:

The Diamond Core Bit Is Used To Drill Holes In:

•

• Ceramic Tiles
•

• Marble
•

• Grade 5 Porcelain (Hardest)
•

• Granite
•

• Glass
•

• Slate
•


The Diamond Core Cuts Faster, Smoother And Lasts Longer Than Any Other Core
Drills.

How To Use The Diamond Core Bit:

The Diamond Core Drill Bit Must Be Used With Water At All Times When
Drilling. The Water Serves As A Coolant To Prevent The Diamonds From
Overheating. The Maximum Allowable Temperature For A Diamond Core Bit Is 500&Deg;C.

There Is No Pilot Drill With The Diamond Core Bit. A Low Rpm Rotary Drill
With A Planetary Gearbox Is Required To Be Used With A Diamond Core Bit. It Is
Possible To Use A Cordless Drill, But In The Lowest Gear Setting. No Hammer
Action Is Used.

1.

2. Tightly Fasten The Diamond Core Bit In The Drill's Chuck.
3.

4. Keep The Bit Steady At A 45������ Angle
   With The Starting Point On The Edge Of The Assigned Area To Be
   Drilled Whilst The Bit Is Rotating.
5.

6. A Notch Will Be Made (This Is Normal).
   Gradually Move The Drill From 45&Deg; To 90&Deg; And Continue Drilling Until
   Finished.
7.

8. Allow The Diamond Core Bit To Cool Down Completely Before Proceeding To
   Drill Another Hole.
9.


Water Can Be Applied By:

•

• Spraying Water On The Surface,
•

• Using A Wet Sponge,
•

• Attaching A Water Feed Device. This Is Necessary When Drilling Into A
  Wall Tile.
•


Please Have A Look At The Video In The Tabs Above
Showing How To Use The Diamond Core Bit.

An Indication Of The Correct Spindle Speed:

&Nbsp;

Important:

The Tool Life Will Mostly Depend On The Proper Usage And The Hardness Of The Items
Drilled Into. It Is Normal For A Diamond Core Bit To Last Up To 10 Or More
Drilled Holes In Hard Tiles. Please Remember To Always Use
Water When Drilling With Diamond Core Bits.
