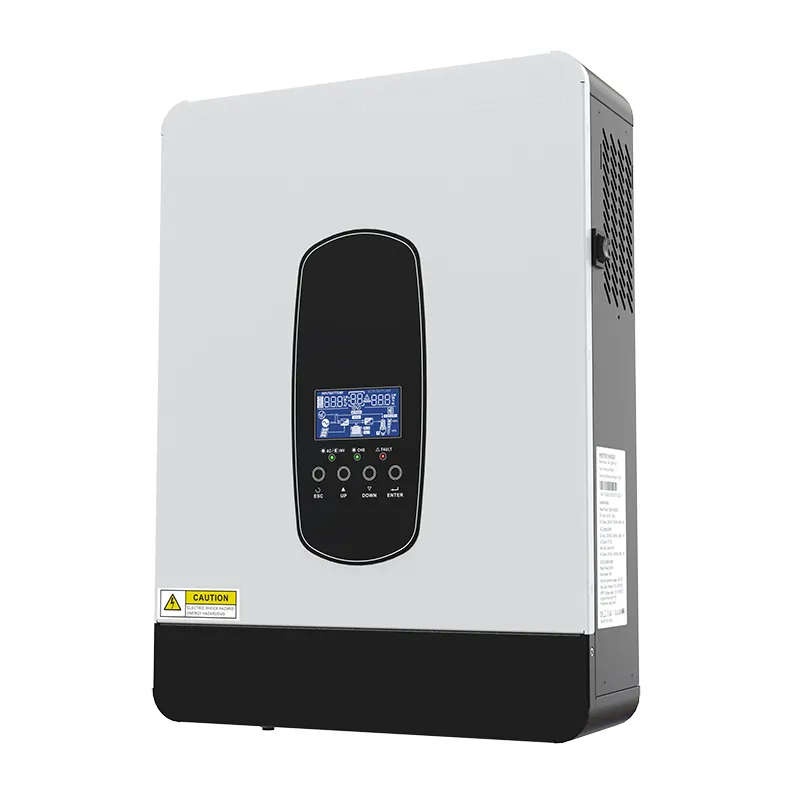

Diamond Hybrid Solar Inverter 6.2kW
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Diamond Hybrid Solar Inverter 6.2kW (Evo Series)
Features of Module
- Pure sine wave solar inverter
- Self-consumption and feed-in to the grid
- Inverter running without battery
- One-key restoration to factory settings
- Built-in Lithium battery automatic activation
- Bult-in 120A MPPT solar controller
- Max 6500W(for 6.2KW) solar charge
- High PV input voltage range(90-450VDC)
- Built-in anti-dusk kit for harsh environment
- Smart battery charge design to optimize battery life
- Dual output
RATED POWER: 6200W
Maximum PV Input Power: 6500W
GRID-TIE OPERATION PV INPUT (DC)
Nominal DC Voltage/Maximum DC Voltage: 500VDC
Start-up Voltage/Initial Feeding Voltage: 120VDC
Maximum DC Voltage: 90-450VDC
Number of MPPT Trackers/Maximum Input Current: 1/27A
GRID OUTPUT (AC)
Nominal Output Voltage: 220/230/240VAC
Output Voltage Range: 195.5-253VAC
Nominal Output Current: 27.0A
Power Factor: >0.99
Feed-in Grid Frequency Range: 59-611Hz
EFFICIENCY
Maximum Conversion Efficiency(Solar to AC): 98%
TWO-LOAD OUTPUT POWER
Full Load: 6200W
Maximum Main Load: 6200W
Maximum Second Load(battery mode): 2067W
Main Load Cut-Off Voltage: 44VDC
Main Load Return Voltage: 52VDC
OFF-GRID OPERATION AC INPUT
AC Start-up Voltage/Auto Restart Voltage: 120-140VAC/180VAC
Acceptable Input Voltage Range: 90-280VAC or 170-280VAC
Maximum AC Input Current: 40A
Nominal Operating Frequency: 50/60Hz
Surge Power: 12400W
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage: 220/230/240VAC
Output Waveform: Pure Sine Wave
Efficiency(DC to AC): 94%
BATTERY & CHARGER
Nominal DC Voltage: 48VDC
Maximum Charging Current(Solar to AC): 120A
Maximum AC Charging Current: 100A
GENERAL PHYSICAL
Dimension, D x W x H (mm): 450*350*110mm
Net Weight (kgs): 10
INTERFACE
Communication Interface: WIFI
OPERATING ENVIRONMENT
Humidity: 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature: 10C 50C
Storage Temperature: 15C 60C
Diamond Hybrid Solar Inverter 6.2kW (Evo Series)
Features of Diamond Hybrid Solar Inverter Module
- Pure sine wave solar inverter
- Self-consumption and feed-in to the grid
- Inverter running without battery
- One-key restoration to factory settings
- Built-in Lithium battery automatic activation
- Bult-in 120A MPPT solar controller
- Max 6500W(for 6.2KW) solar charge
- High PV input voltage range(90-450VDC)
- Built-in anti-dusk kit for harsh environment
- Smart battery charge design to optimize battery life
- Dual output
RATED POWER: 6200W
Maximum PV Input Power: 6500W
GRID-TIE OPERATION PV INPUT (DC)
Nominal DC Voltage/Maximum DC Voltage: 500VDC
Start-up Voltage/Initial Feeding Voltage: 120VDC
Maximum DC Voltage: 90-450VDC
Number of MPPT Trackers/Maximum Input Current: 1/27A
GRID OUTPUT (AC)
Nominal Output Voltage: 220/230/240VAC
Output Voltage Range: 195.5-253VAC
Nominal Output Current: 27.0A
Power Factor: >0.99
Feed-in Grid Frequency Range: 59-611Hz
EFFICIENCY
Maximum Conversion Efficiency(Solar to AC): 98%
TWO-LOAD OUTPUT POWER
Full Load: 6200W
Maximum Main Load: 6200W
Maximum Second Load(battery mode): 2067W
Main Load Cut-Off Voltage: 44VDC
Main Load Return Voltage: 52VDC
OFF-GRID OPERATION AC INPUT
AC Start-up Voltage/Auto Restart Voltage: 120-140VAC/180VAC
Acceptable Input Voltage Range: 90-280VAC or 170-280VAC
Maximum AC Input Current: 40A
Nominal Operating Frequency: 50/60Hz
Surge Power: 12400W
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage: 220/230/240VAC
Output Waveform: Pure Sine Wave
Efficiency(DC to AC): 94%
BATTERY & CHARGER
Nominal DC Voltage: 48VDC
Maximum Charging Current(Solar to AC): 120A
Maximum AC Charging Current: 100A
GENERAL PHYSICAL
Dimension, D x W x H (mm): 450*350*110mm
Net Weight (kgs): 10
INTERFACE
Communication Interface: WIFI
OPERATING ENVIRONMENT
Humidity: 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature: 10C - 50C
Storage Temperature: 15C - 60C
