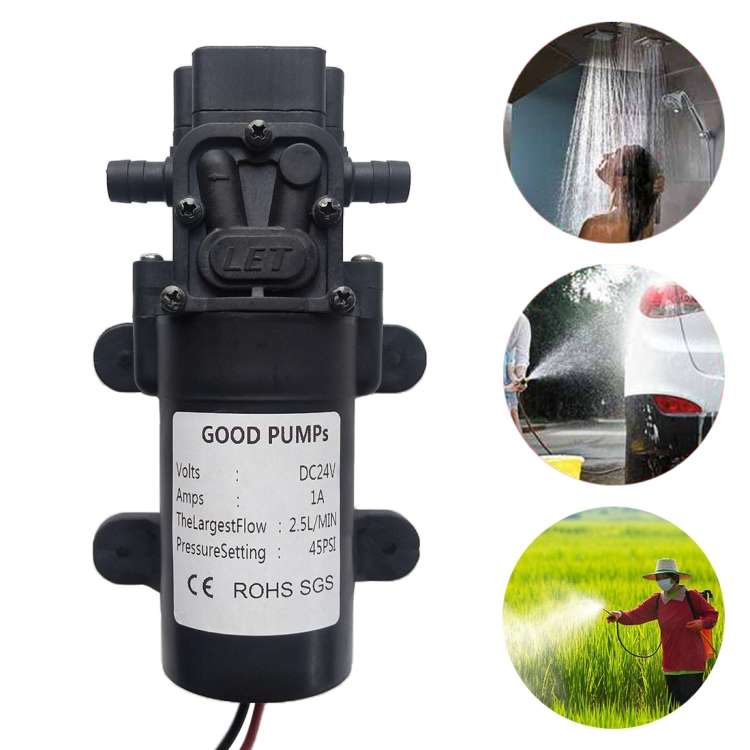

Diaphragm Reflux Mini Electric Water Pump 29W High Pressure Self-priming Water Pump for Car Washing

1. The miniature DC diaphragm water pump combines the advantages of self-priming pump and chemical pump. It is synthesized with a variety of imported materials that are resistant to corrosion. It has self-priming function, thermal protection, stable operation, continuous idling for a long time, and continuous operation for a long time. .
2. Small size, small current, high pressure, low noise and long service life.
3. With oil resistance, heat resistance, acid resistance, alkali resistance, corrosion resistance, chemical resistance and other properties.
4. The pump body is separated from the motor, and there are no mechanical parts and wear in the pump body.
5. The pump has its own pressure relief and overflow circuit device. Turn on the power, turn on the water switch, the water pump starts to work; turn off the water switch, the water pump continues to work, the liquid in the pump body begins to automatically reduce pressure and return, the pressure in the water pipe will not increase, and will not hold back the water pipe.
6. High pressure: generally can reach 4-6Kg
7. Low power consumption: only 1.4-2.4A.
8. Parameters:
Voltage: 12V/24V
Current: about 1-2.4A
Protection pressure: 0.6Mpa
General pressure: 0.3-0.5 Mpa
General flow: 2.5-3.5L/min
Suction head 1-2 meters, head up to 10 meters high
9. Wide range of use.

OEM/ODM are Welcome! we can make customised design and print your logo
