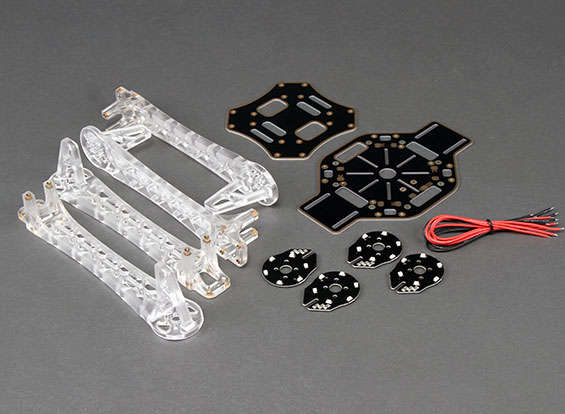

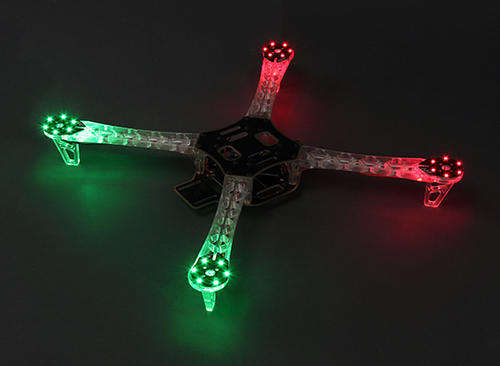

DIATONE Q450 Ghost Edition LED Night Quad-Copter Frame (KIT)

The Q450 Ghost edition is FPV LED night flight version of the popular Q450, a well thought out 450mm quad frame built from quality materials.

This version of the Q450 features integrated PCB connections for direct soldering of your ESCs as well as clear arms with high powered LEDs to illuminate the frame for night orientation. This eliminates the need for a power distribution board or messy multi-connectors, keeping your electronics layout very tidy and high visibility in day and night conditions.

Assembly is a breeze with pre-threaded brass sleeves for all of the frame bolts, so no lock-nuts are required. It utilizes one size of bolt for the entire build, making the hardware very easy to keep in order and only requiring one size of hex wrench to assemble.

A great feature of this frame is the large mounting tabs at the front and rear of the main frame bottom plate for mounting cameras or other accessories. This makes for a great way to take aerial video or fly FPV without the need to add any additional mounting brackets.

The Q450 also features clear led light arms which are great for orientation. It helps to keep you flying the right direction without the need for different colored props.

We offer a full line of multi-rotor electronics such as multi-rotor control board, ESC & motors. It has never been easier or more affordable to get a quad in the air!

Features:
• Clear led light arms
• Integrated PCB connections for direct soldering of your ESCs
• Pre-threaded brass sleeves for all of the frame bolts.
• Dual colored LED arms for orientation to keep you flying in the right direction.
• Large mounting tabs on the main frame bottom plate for easy camera mounting.
• Easy assembly.

Specs:
Width: 450mm
Height: 55mm
Weight: 280g (w/out electronics)
Motor Mount Bolt Holes: 16/19mm

Required:
4 x 28mm 1000~1200kv (or similar size/kv)
4 x 15~25 Amp ESC
4 x 8x4~10x4.5 Prop (2CW & 2CCW)
1 x  Multi-Rotor Control Board
1 x 1500~2200mAh 3s 11.1v Lipoly battery
