Dicktator 60-2 Engine Management System

3 were available / new
R5,100.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
60-2 ECU
Bob Shop ID
598503031

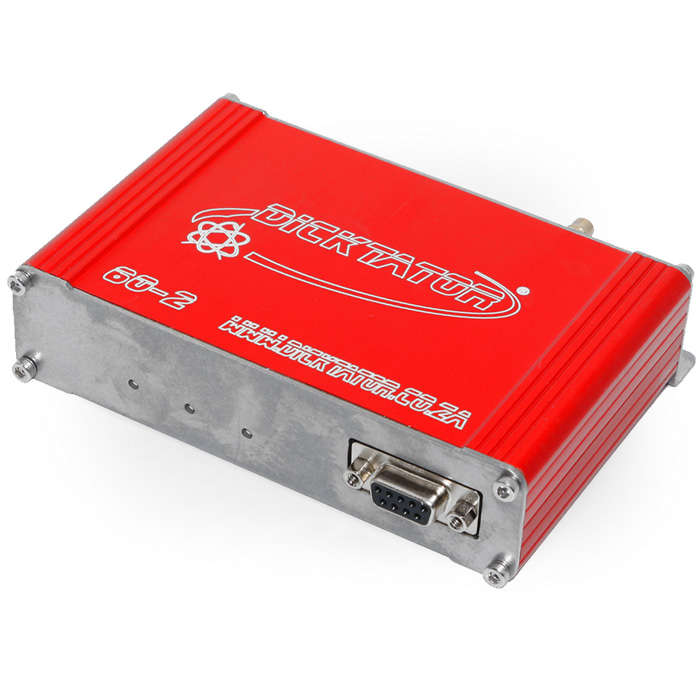

Dicktator 60-2 Engine Management System

Suitable for most 60-2 engines.This engine management is suited for applications using a 60-1 multi-tooth trigger wheel and/with Coil Packs or Individual Coil per Cylinder set up.

SPECIFICATIONS

1 to 12 cylinders are supported but 3 is excluded.
Fuel control adjustable in 1,5,10,Standard, 250 micro second increments.
Fully interpolated RPM and load sites.Load sensing BT map sensor or T.P.S.
Load range 3 BAR map sensor: -100KPA to 200KPA.
Water, Air temperature and T.P.S sensor can be calibrated.
Battery voltage compensation.
Adjustable start prime.
Twin injector drivers.
Triple ignition driver suitable for intelligent or dumb igniters.
6-cylinders or coil-on-plug support up to 4 cylinders.
Coil charge time adjustable.
Two wire idle motor control.
Fuel pump control.
Real time programming.
User friendly software.
1 General purpose output.
Tacho output.
High speed data logging to PC at up to 60 samples per second.
Selectable rev limiting through fuel cut or spark cut.
