DigiPos High-Speed Thermal Cash Receipt Printer

DigiPos High-Speed Thermal Cash Receipt Printer

New to the DigiPoS range, the DS800 Receipt Printer is a very small footprint thermal receipt printer that is packed with features.
Available in black and white, the DS800 compliments any retail or hospitality environment.
The DS800 Receipt Printer Offers fast text (150 mm per second), high resolution graphics and barcodes, as well as easy-to-use features such as drop-in paper load and auto-cutter.

Print Font Font:
9 x 24 (FontA)
12 x 24 (Font B)

Column Capacity:
64 Columns (FontA)
56 Columns (Font B)

Dot Density: (DPI)
203 x 180 (Font A)
180 x 180 (Font B)

Dot Pitch: (mm)
0.125 x 0.141 (FontA)
0.141 x 0.141 (Font B)

Effective Printing Width:
72mm, 576 Dots (FontA)
72mm, 512 Dots (Font B)

Character Set:
95 Alphanumeric
32 International
128x7 graphics

Bar Code: EAN-8, EAN-13, CODE 39, CODE 93, CODE 128, ITF, UPC-A, UPC-E, CODABAR, PDF 417

Paper Handling:
Drop In, Auto Cutter, Near End Sensor

Interface:
RS-232 (Serial)

Print Speed 150mm / sec (47 lps, 0.125" conversion) max.
Thermal Paper Dimensions (mm):
Width: 80mm ± 0.1
Roll Diameter: Maximum 83
Roll Core: 12.5mm ± 0.5
Thickness (mm): 0.06 to 0.09

Current consumption Approx 1.5A (mean)
Power 24 VDC +/- 5%
(Supplied via a DigiPoS 24V Power Supply Module)
Power Consumption Approx. 38 W
D.K.D. Function 2 drives
Overall Dimensions (mm)
152 (W) x 194 (D) x 148 (H)
Weight Approx 1.6 Kg

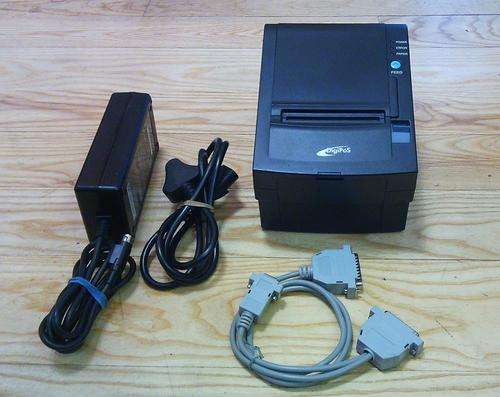

Very Good Working Condition, Works Like New.
Includes All Cables and Power Supply
ONLY R850.00
