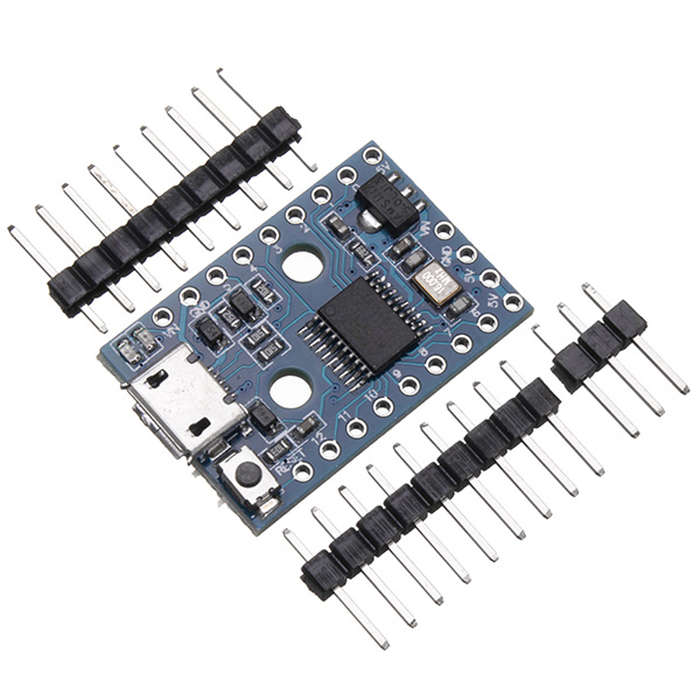

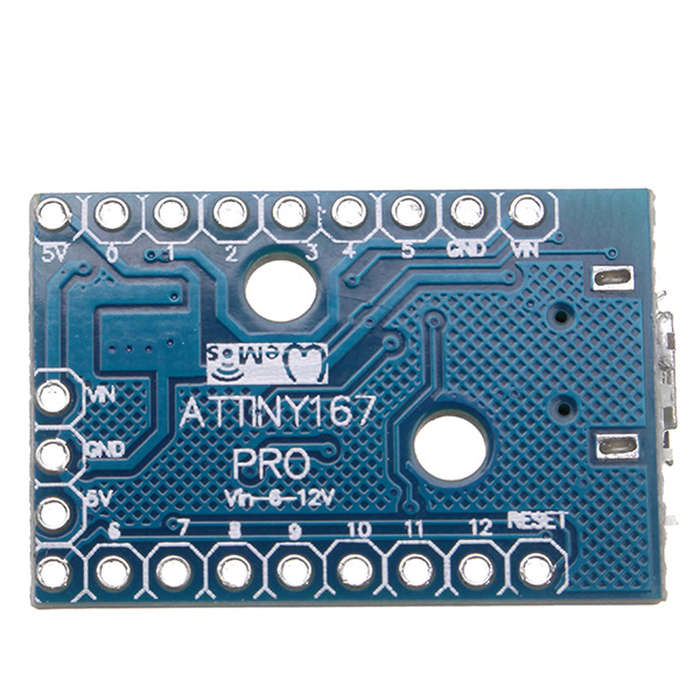

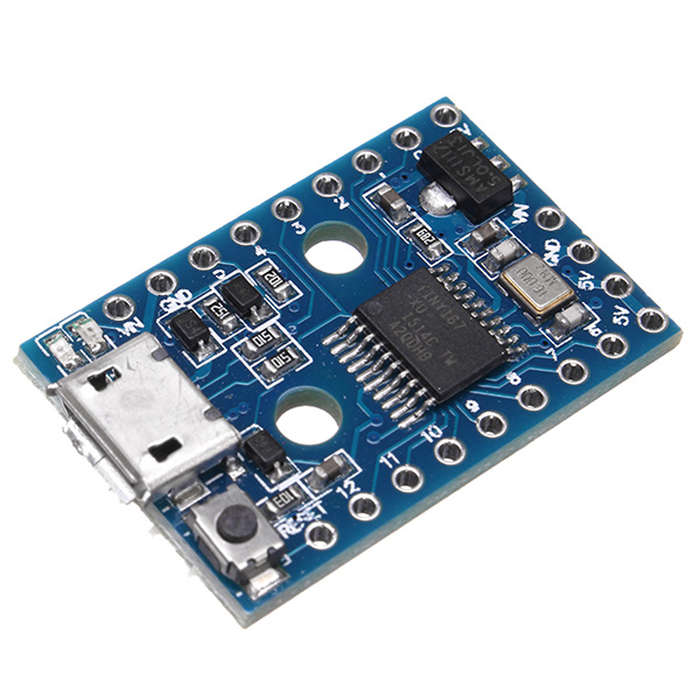

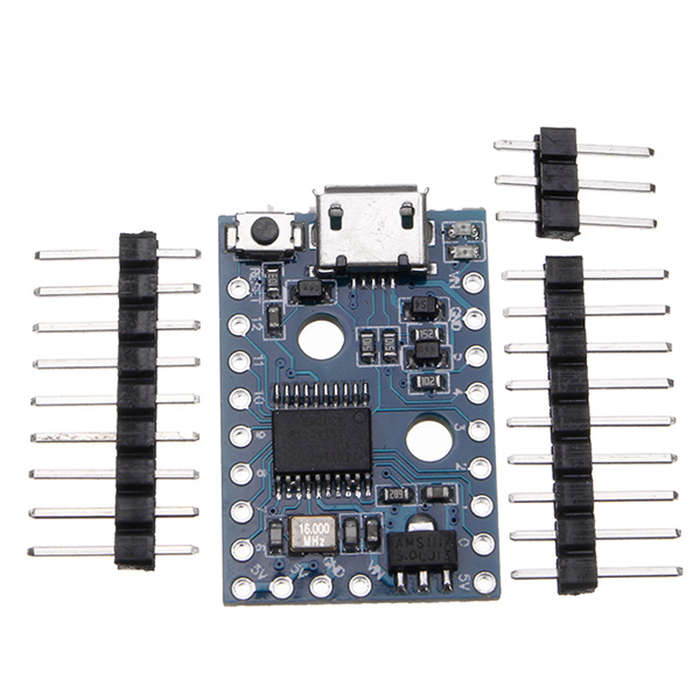

Digispark Pro Kickstarter Development Board USB Micro ATTINY167 Module

New

20 available

R464.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4026

92.46 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654096703

Description:

1. Compatible with IDE 1.5 (OSX/Win/Linux)
2. Fully signed drivers and executable for easy installation
3. USB programming, USB device emulation, USB-CDC virtual serial port emulation
4. 16 MHz AVR MCU - using a true 16Mhz precision crystal
5. 16KB Flash Memory (14.5K+ after bootloader)
6. Serial over USB debugging and communication!
7. 14 I/O Pins (2 shared with USB)
8. I2C, true SPI, UART, LIN, and USI
9. ADC on 10 pins
10. 3 PWM Channels (which can be assigned to a selection of pins)
11. Power via USB, or External Source - 5v or 6-16v (automatic selection)
12. On-board button that can be used as a reset, program, or user button - or can be disabled
to use that pin as general i/o - without changing the bootloader
13. On-board 150mA 5V regulator
14. Power LED and Test/Status LED (on Pin 1)
15. User accessible solder jumpers to disable LEDs, and other features for lower power consumption
16. Two mounting holes.

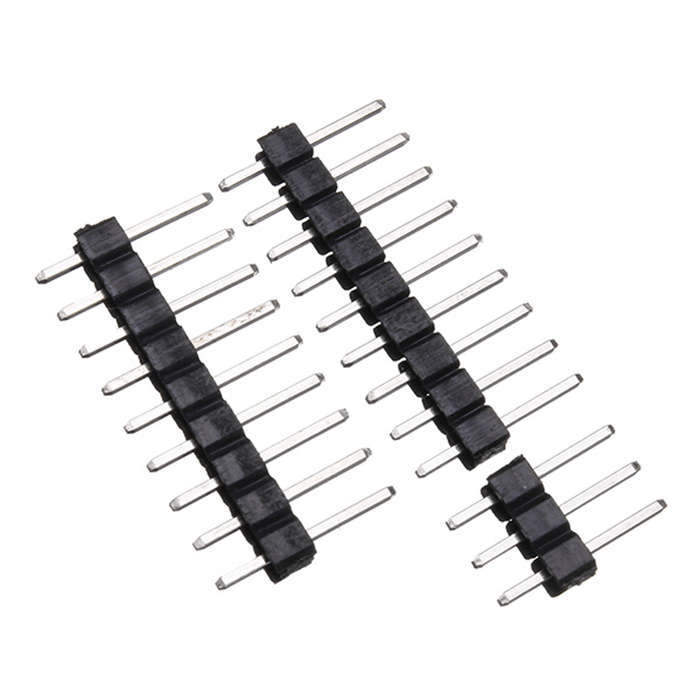

17. Breadboard compatible pin out/spacing (the three side header pins are only for legacy shield support).

Package included:

1 x Digispark Pro Kickstarter Development Board
