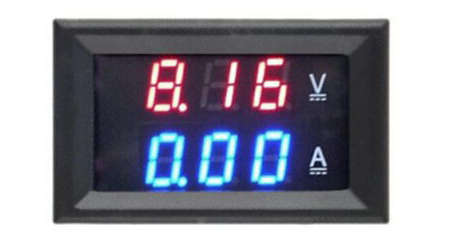

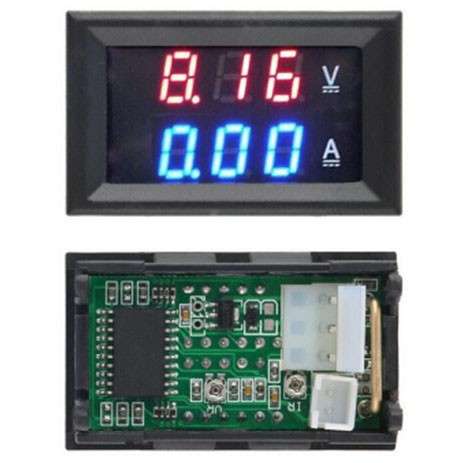

Description:
High-end applications which require high precision and high reliability
10A shunt voltage meter head is not required (built-in shunt)
50A / 100A voltmeter splitter head (Note: the current test, the power supply must first connect the shunt)
Technical Parameters:
Voltage measurement range 0.0V-100V
Current test range 0-10A, 0-50A, 0-100A (3 kinds of range setting optional)
Power range Note: DC4-30.0V (more than 30V need external power supply independent) Voltage error 0.1% Current error 1%
External shunt specifications 75 milliliters Working current <20mA Refresh rate About 300ms time Display method Double 3 0.28 "LED digital tube Color display + Red, red + blue.
Optional Lead length 15 cm size 48 X 29 Length 22 mm, length X width X thickness;
Mounting holes 46 x 27 mm
Operating temperature -10 ~ 65
