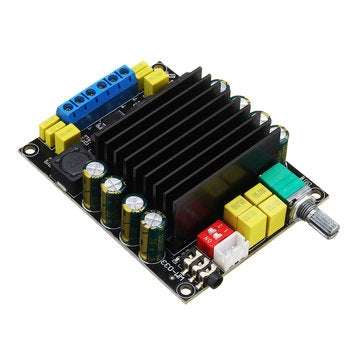

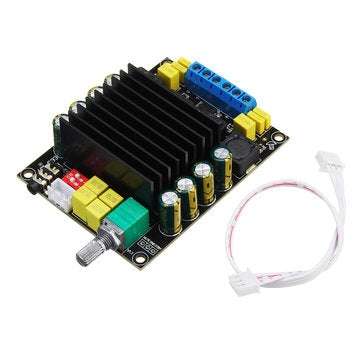

Digital Amplifier Audio Board TDA7498 Power Audio Amp 2.0 Class D Stereo HIFI DC12-36V 2*100W

20 available / new

R533.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3509

93.41 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643377605

Details Parameter: Item Name: TDA7498 amplifier Item model: WM-033 Supply Voltage: DC 12-36V Output Power: Max100WX2 Sound Channel: 2 Channels Output Impedance: 4-8 ohm Frequency: 20Hz-20KHz Dimension: 83*64*26mm Weight: 105g Features: 100-W + 100-W output power at THD = 10% with RL = 6 Q and Vcc = 36 V 80-W + 80-W output power at THD = 10% with RL = 8 and Vcc = 34 V Wide-range single-supply operation (14 - 39 V) High efficiency (n = 90%) Four selectable, fixed gain settings of nominally 25.6 dBt 31.6 dB, 35.1 dB and 37.6 dB Differential inputs minimize common-mode noise Standby and mute features Short-circuit protection Thermal overload protection Externally synchronizable Description: The TDA7498 is a dual BTL class-D audio amplifier with single power supply designed for home systems and active speaker applications. It comes in a 36-pin PowerSSO package with exposed pad up (EPU) to facilitate mounting a separate heatsink. Package includes: 1 x TDA7498 amplifier module
