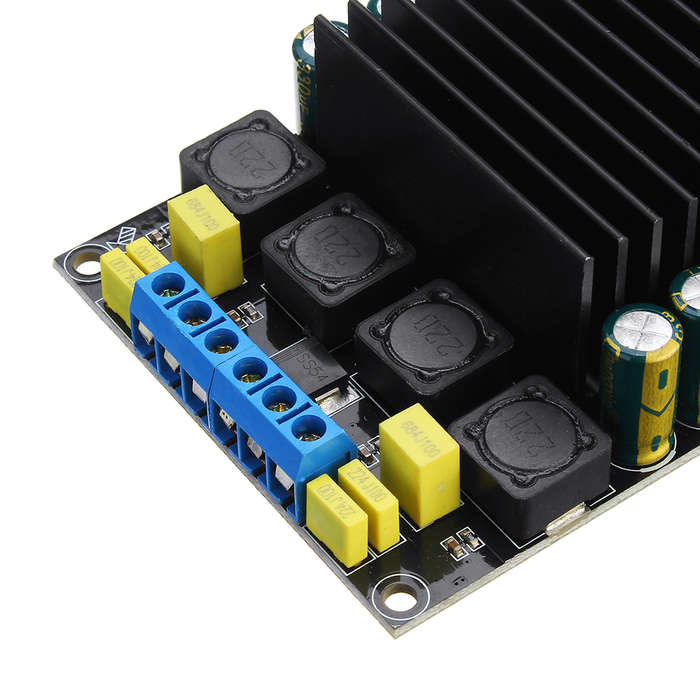

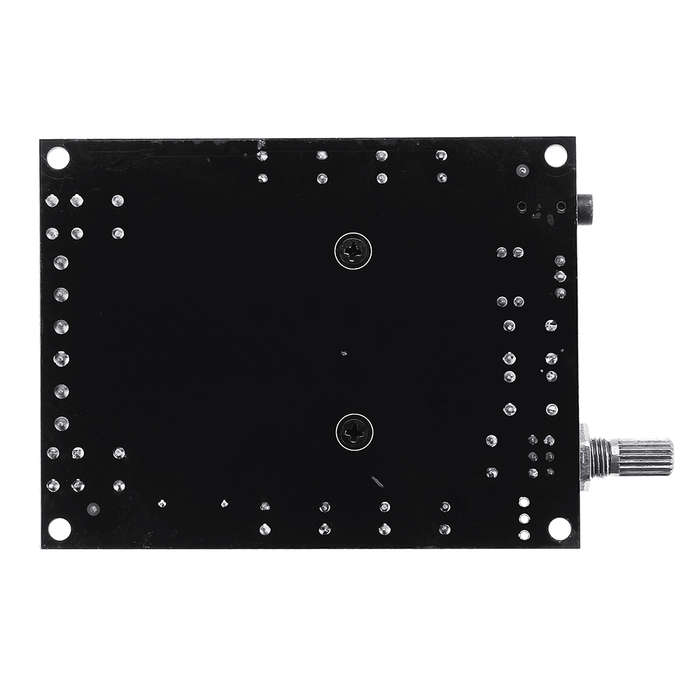

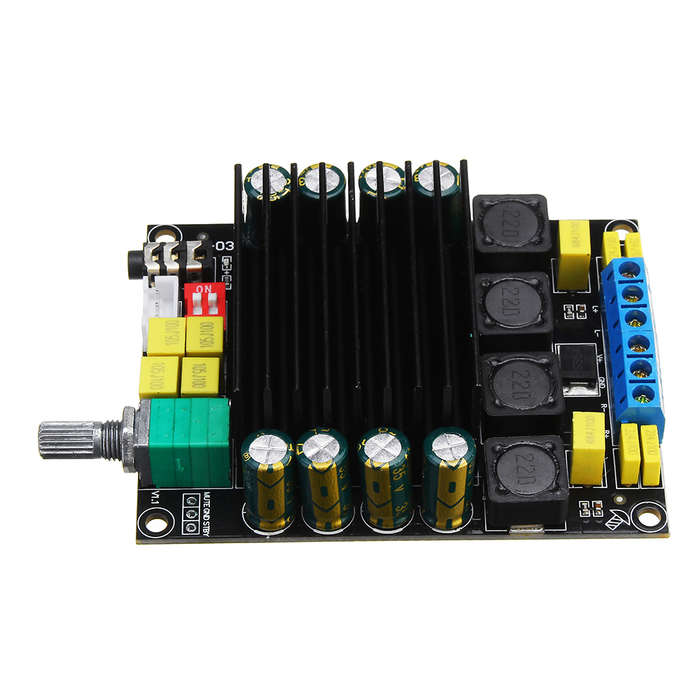

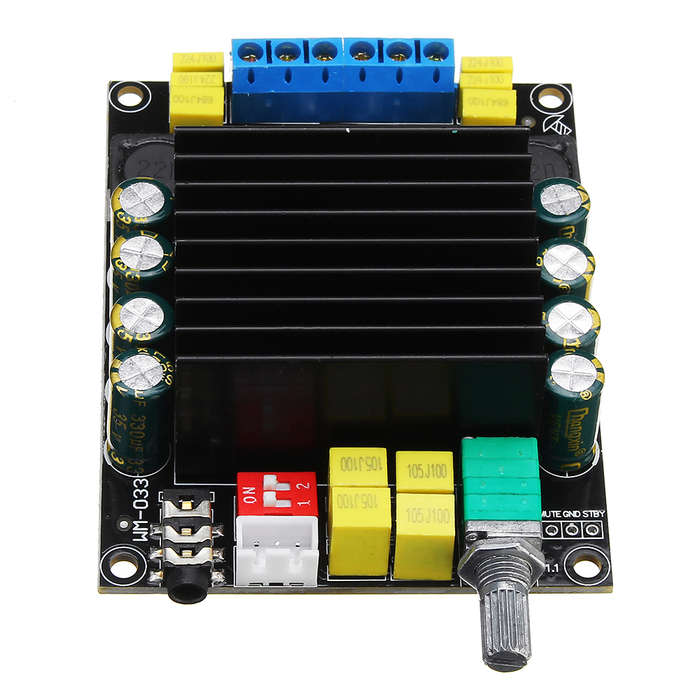

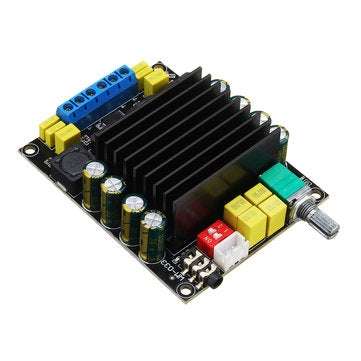

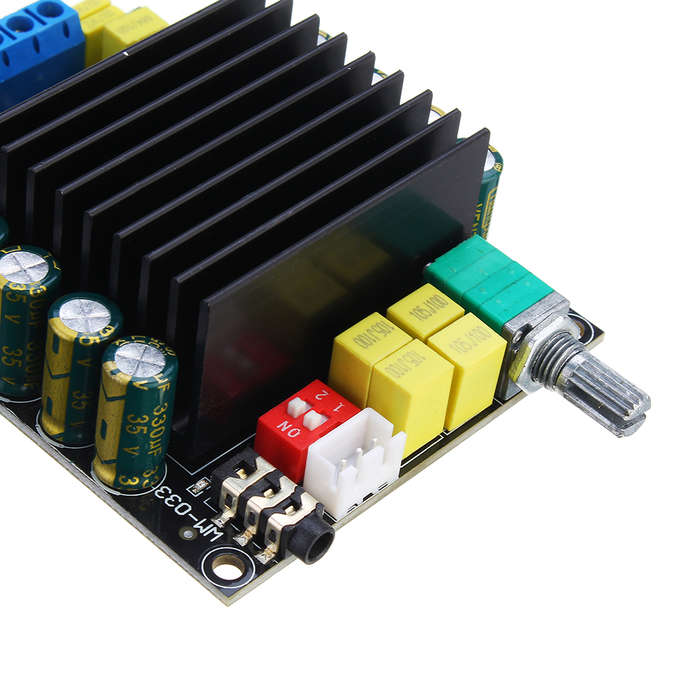

Digital Amplifier Audio Board TDA7498 Power Audio Amp 2.0 Class D Stereo HIFI DC12-36V 2*100W

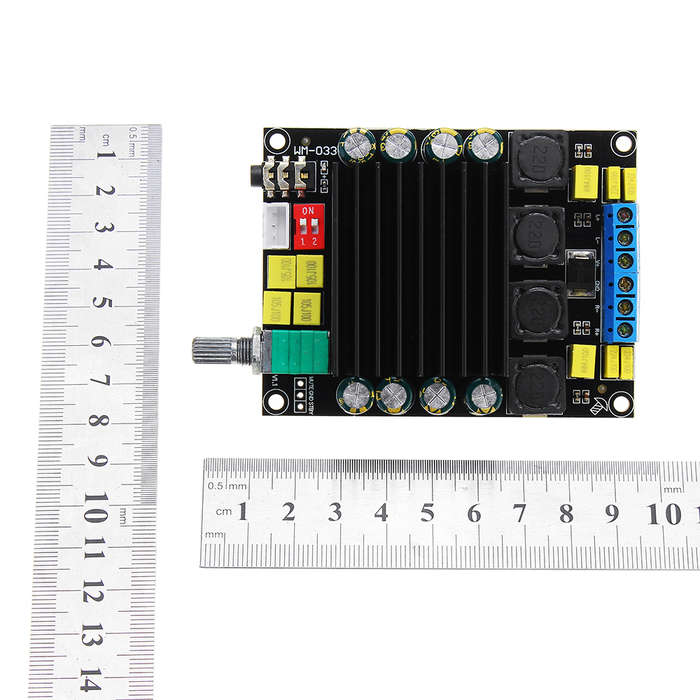

Details Parameter: Item Name: TDA7498 amplifier Item model: WM-033 Supply Voltage: DC 12-36V Output Power: Max100WX2 Sound Channel: 2 Channels Output Impedance: 4-8 ohm Frequency: 20Hz-20KHz Dimension: 83*64*26mm Weight: 105g Features: 100-W + 100-W output power at THD = 10% with RL = 6 Q and Vcc = 36 V 80-W + 80-W output power at THD = 10% with RL = 8 and Vcc = 34 V Wide-range single-supply operation (14 - 39 V) High efficiency (n = 90%) Four selectable, fixed gain settings of nominally 25.6 dBt 31.6 dB, 35.1 dB and 37.6 dB Differential inputs minimize common-mode noise Standby and mute features Short-circuit protection Thermal overload protection Externally synchronizable Description: The TDA7498 is a dual BTL class-D audio amplifier with single power supply designed for home systems and active speaker applications. It comes in a 36-pin PowerSSO package with exposed pad up (EPU) to facilitate mounting a separate heatsink. Package includes: 1 x TDA7498 amplifier module
